提到pg的repmgr，大家可能并不陌生，他是现在pg比较流行的一套开源工具，用于管理postgresql服务器集群中的复制管理和故障转移，也就是相当于一个集群管理 ha工具。当前pg的高可用方案，大致有keepalived、pgpool、repmgr、pacemaker corosync、etcd patroni等等。其中etcd patroni和repmgr是目前用的较多的高可用。patroni的话需要至少三个以上且为奇数的 etcd 节点，而且大部分参数都需要通过更改 etcd 中键值来修改。而repmgr相对来说配置简单、添加节点比较方便。
从opengauss数据库开源以来，也研究mogdb/opengauss一年了，个人感觉mogdb/opengauss加上云和恩墨自主研发的mogha高可用工具 和 pg的repmgr高可用方案比较类似。
众所周知mogdb/opengauss数据库是基于postgresql研发而出，因此一些功能和工具也比较类似。
工具的话比较常用的gs_basebackup/pg_basebackup,gs_probackup/pg_probackup,pg_resetxlog等等。今天对于工具这边就不做详细说明了。如下，是我对mogdb/opengauss集群管理、mogha高可用软件以及pg的repmgr相对应的功能的一些对比。接触过mogdb/opengauss或者repmgr单一一种的可以试着了解一下另外一部分的，上手应该会比较快。
1.查看集群状态
2.mogdb/opengauss全量build & repmgr clone
3.mogdb/opengauss增量build & repmgr node rejoin --force-rewind
4.switchover
5.mogdb/opengauss高可用工具mogha & repmgr 切换
一、查看集群状态
1.mogha/opengauss：
mogha/opengauss的数据库可以通过om工具来查看集群状态。
[omm@node1 ~]$ gs_om -t status --detail
[ cluster state ]
cluster_state : normal
redistributing : no
current_az : az_all
[ datanode state ]
## node node_ip instance state | node node_ip instance state
1 node1 172.20.10.7 6001 /gaussdb/data/dn1 p primary normal | 2 node2 172.20.10.8 6002 /gaussdb/data/dn1 s standby normal
2.pg repmgr
/home/postgres/repmgr-5.1.0/repmgr -f /home/postgres/repmgr.conf cluster show
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.1 port=6000 fallback_application_name=repmgr"
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.1 port=6000 fallback_application_name=repmgr"
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.2 port=6000 fallback_application_name=repmgr"
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.1 port=6000 fallback_application_name=repmgr"
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.3 port=6000 fallback_application_name=repmgr"
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=172.20.10.1 port=6000 fallback_application_name=repmgr"
id | name | role | status | upstream | location | priority | timeline | connection string
---- ------------- --------- ----------- ------------- ---------- ---------- ---------- ------------------------------------------------------------------------
1 | enmo_6001 | primary | * running | | default | 100 | 1 | host=172.20.10.1 port=6000 user=repmgr dbname=repmgr connect_timeout=2
2 | enmo_6002 | standby | running | enmo_6001 | default | 100 | 1 | host=172.20.10.2 port=6000 user=repmgr dbname=repmgr connect_timeout=2
3 | enmo_6003 | standby | running | enmo_6001 | default | 100 | 1 | host=172.20.10.3 port=6000 user=repmgr dbname=repmgr connect_timeout=2
二、mogdb/opengauss全量build & repmgr clone
这两种方法，mogdb/opengauss的build一般用在主备的数据不一致，且日志追不上的情况，备库从主库重新拉取一份数据目录数据，且在拉取之前会清空数据目录，repmgr一般用在重新搭建主从，或者主备的数据不一致，且日志追不上的情况，或者timeline存在问题的时候。clone要在备机register之前做。
1.mogdb/opengauss
gs\_ctl build -d /gaussdb/data/dn1/ -b full
mogdb/opengauss的全量build是通过全量镜像的方式重新同步主机的数据目录 。
[omm@node2 ~]$ gs_ctl build -d /gaussdb/data/dn1/ -b full
[2021-09-30 07:27:48.355][18280][][gs_ctl]: gs_ctl full build ,datadir is /gaussdb/data/dn1
waiting for server to shut down.... done
server stopped
[2021-09-30 07:27:49.375][18280][][gs_ctl]: current workdir is (/home/omm).
[2021-09-30 07:27:49.375][18280][][gs_ctl]: fopen build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:27:49.375][18280][][gs_ctl]: fprintf build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:27:49.376][18280][][gs_ctl]: fsync build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:27:49.376][18280][][gs_ctl]: set gaussdb state file when full build:db state(building_state), server mode(standby_mode), build mode(full_build).
[2021-09-30 07:27:49.381][18280][dn_6001_6002][gs_ctl]: connect to server success, build started.
[2021-09-30 07:27:49.381][18280][dn_6001_6002][gs_ctl]: create build tag file success
[2021-09-30 07:27:49.806][18280][dn_6001_6002][gs_ctl]: clear old target dir success
[2021-09-30 07:27:49.806][18280][dn_6001_6002][gs_ctl]: create build tag file again success
[2021-09-30 07:27:49.806][18280][dn_6001_6002][gs_ctl]: get system identifier success
[2021-09-30 07:27:49.806][18280][dn_6001_6002][gs_ctl]: receiving and unpacking files...
[2021-09-30 07:27:49.806][18280][dn_6001_6002][gs_ctl]: create backup label success
[2021-09-30 07:27:50.634][18280][dn_6001_6002][gs_ctl]: xlog start point: 0/3a000028
[2021-09-30 07:27:50.634][18280][dn_6001_6002][gs_ctl]: begin build tablespace list
[2021-09-30 07:27:50.635][18280][dn_6001_6002][gs_ctl]: finish build tablespace list
[2021-09-30 07:27:50.635][18280][dn_6001_6002][gs_ctl]: begin get xlog by xlogstream
[2021-09-30 07:27:50.635][18280][dn_6001_6002][gs_ctl]: starting background wal receiver
[2021-09-30 07:27:50.635][18280][dn_6001_6002][gs_ctl]: starting walreceiver
[2021-09-30 07:27:50.635][18280][dn_6001_6002][gs_ctl]: begin receive tar files
[2021-09-30 07:27:50.636][18280][dn_6001_6002][gs_ctl]: receiving and unpacking files...
[2021-09-30 07:27:50.656][18280][dn_6001_6002][gs_ctl]: check identify system success
[2021-09-30 07:27:50.657][18280][dn_6001_6002][gs_ctl]: send start_replication 0/3a000000 success
[2021-09-30 07:28:01.151][18280][dn_6001_6002][gs_ctl]: finish receive tar files
[2021-09-30 07:28:01.151][18280][dn_6001_6002][gs_ctl]: xlog end point: 0/3a000170
[2021-09-30 07:28:01.151][18280][dn_6001_6002][gs_ctl]: fetching mot checkpoint
[2021-09-30 07:28:01.152][18280][dn_6001_6002][gs_ctl]: waiting for background process to finish streaming...
[2021-09-30 07:28:05.805][18280][dn_6001_6002][gs_ctl]: build dummy dw file success
[2021-09-30 07:28:05.805][18280][dn_6001_6002][gs_ctl]: rename build status file success
[2021-09-30 07:28:05.805][18280][dn_6001_6002][gs_ctl]: build completed(/gaussdb/data/dn1).
[2021-09-30 07:28:06.157][18280][dn_6001_6002][gs_ctl]: waiting for server to start...
2.pg repmgr
repmgr -h 172.20.10.7 -p6000 -u repmgr -d repmgr -f

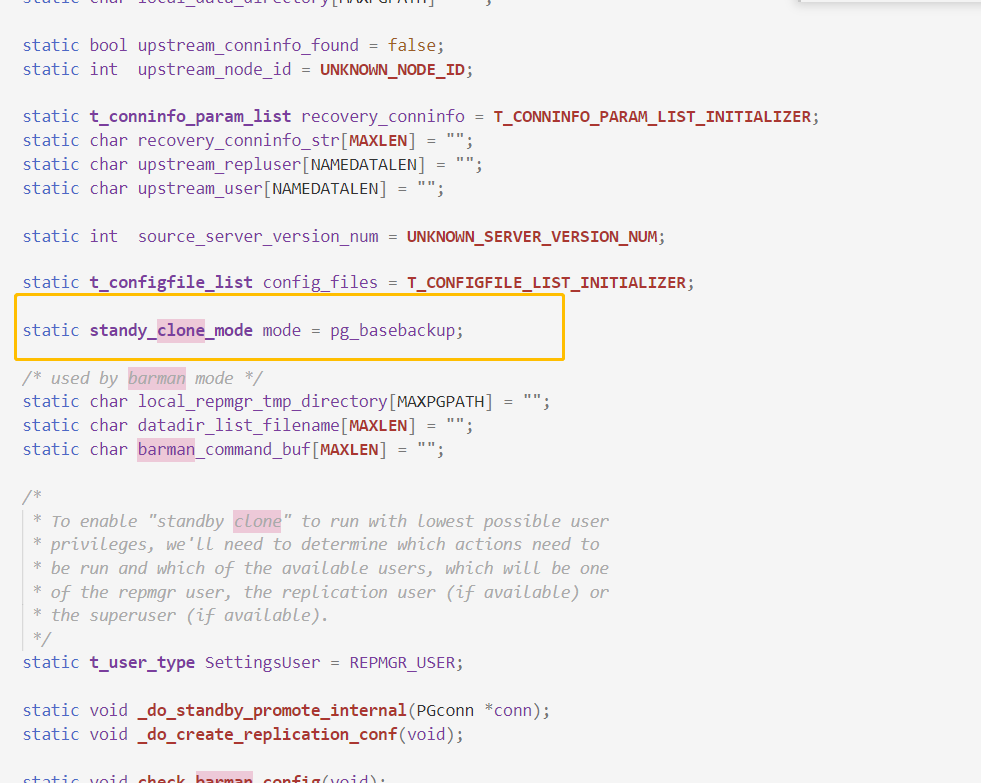

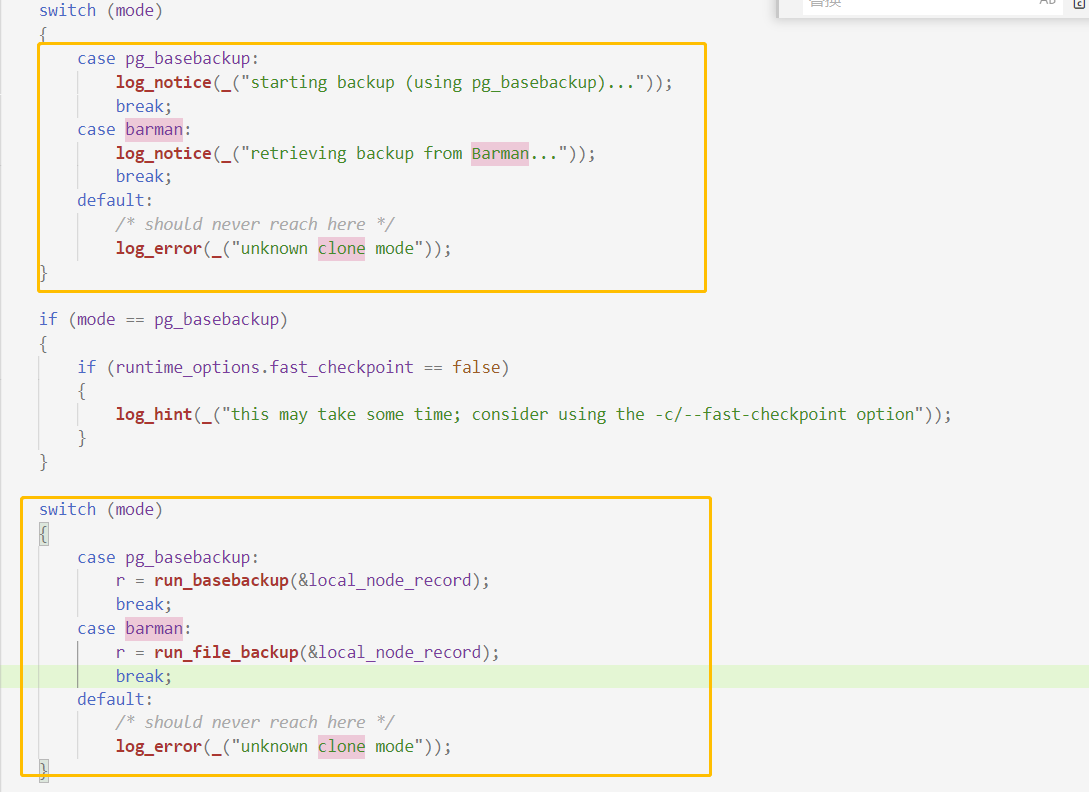

而repmgr默认是通过pg_basebackup的方式，在日志里会打印出来，且查看源码发现还支持barman的方式，opengauss的全量build在源码里暂未找到调用gs_basebackup的相关代码（可能我没找到，欢迎帮我指正交流）
[postgres@enmo-02 ~]$repmgr -h 172.20.10.1 -p6000 -u repmgr -d repmgr -f /home/postgres/repmgr.conf standby clone
notice: destination directory "/home/postgres/data" provided
info: connecting to source node
detail: connection string is: host=172.20.10.1 port=6000 user=repmgr
dbname=repmgr
detail: current installation size is 42 mb
debug: 1 node records returned by source node
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr
host=172.20.10.1 port=6000 fallback_application_name=repmgr"
debug: upstream_node_id determined as 11
notice: checking for available walsenders on the source node (2
required)
notice: checking replication connections can be made to the source
server (2 required)
info: checking and correcting permissions on existing directory
"/home/postgres/data"
notice: starting backup (using pg_basebackup)...
hint: this may take some time; consider using the -c/--fastcheckpoint option
info: executing:
/usr/pgsql-11/bin/pg_basebackup -l "repmgr base backup" -d
/home/postgres/data -h 172.20.10.7 -p 6000 -u repmgr -x stream

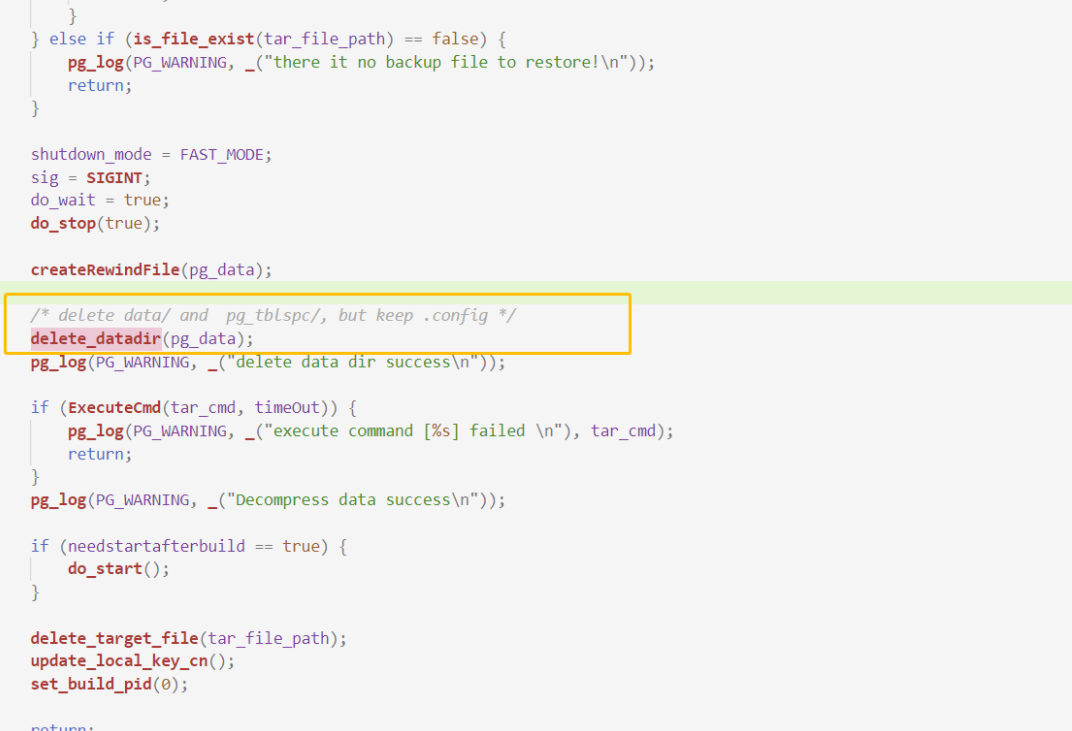

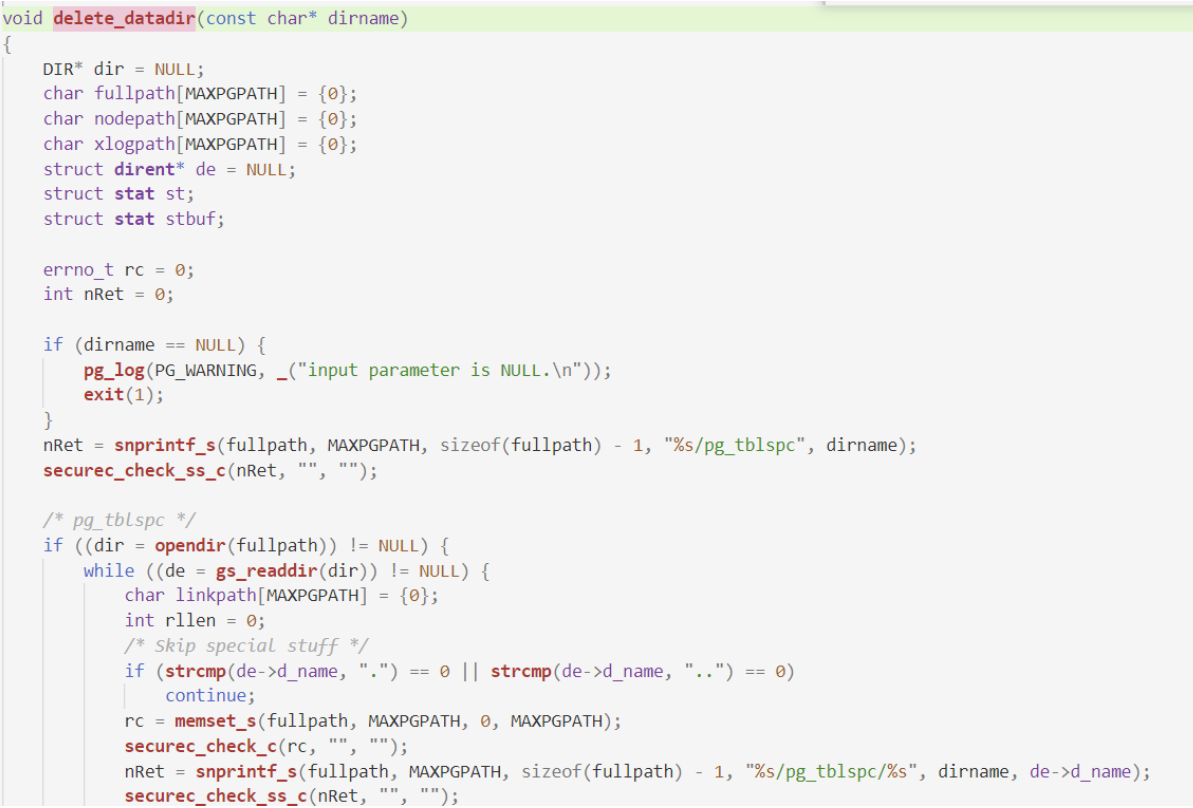

除此之外，发现mogdb/opengauss和repmgr在做全量build或者clone的时候，mogdb/opengauss会把数据目录清空，而repmgr的clone则是覆盖。
mogha/opengauss：
repmgr：

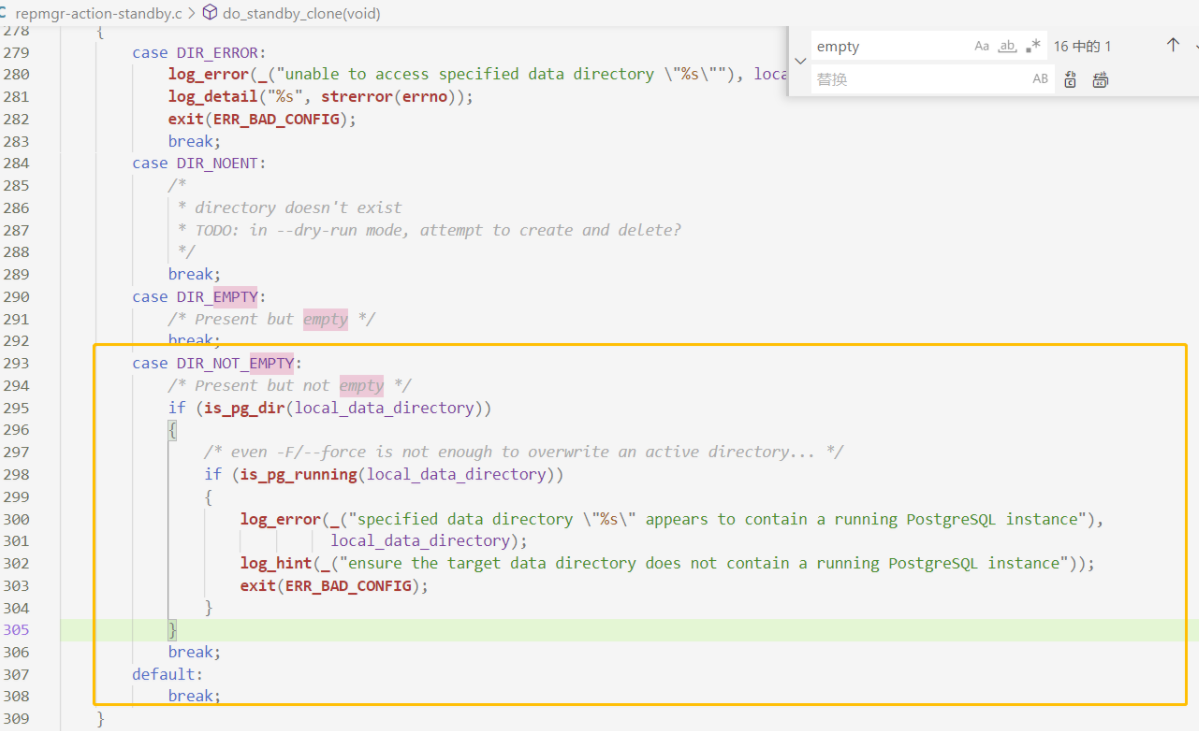

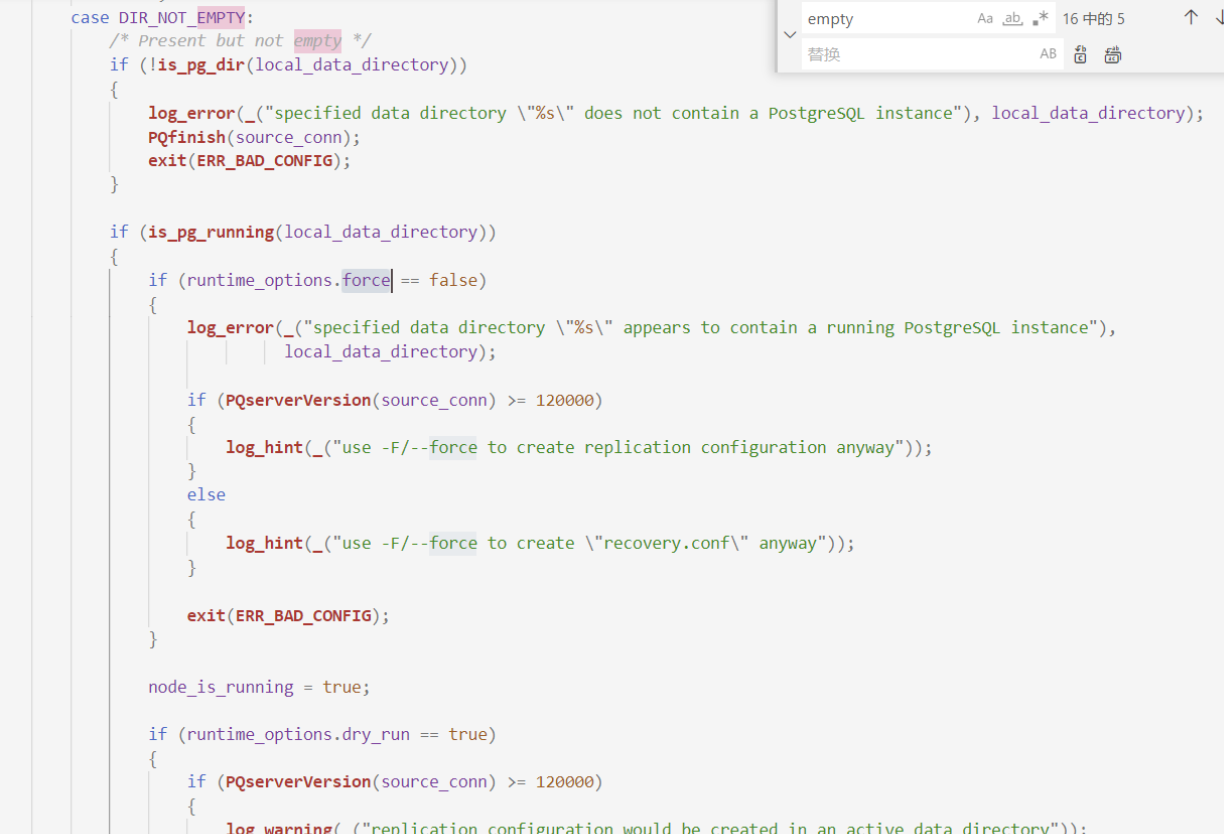

当然，repmgr加上 -f/–force也不能覆盖一个活跃的目录。
三.mogdb/opengauss增量build & repmgr node rejoin --force-rewind
mogha/opengauss：
可以看到，mogha/opengauss：在通过-b increment做增量build的时候，用到了gs_rewind，与其类似的repmgr也可以通过 repmgr node rejoin --force-rewind，实现类似的功能。
[omm@node2 ~]$ gs_ctl build -d /gaussdb/data/dn1/ -b increment
[2021-09-30 07:54:12.879][27818][][gs_ctl]: gs_ctl incremental build ,datadir is /gaussdb/data/dn1
waiting for server to shut down.... done
server stopped
[2021-09-30 07:54:13.897][27818][][gs_ctl]: fopen build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:54:13.897][27818][][gs_ctl]: fprintf build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:54:13.897][27818][][gs_ctl]: fsync build pid file "/gaussdb/data/dn1/gs_build.pid" success
[2021-09-30 07:54:13.902][27818][dn_6001_6002][gs_rewind]: set gaussdb state file when rewind:db state(building_state), server mode(standby_mode), build mode(inc_build).
[2021-09-30 07:54:13.965][27818][dn_6001_6002][gs_rewind]: connected to server: host=172.20.10.7 port=26001 dbname=postgres application_name=gs_rewind connect_timeout=5
[2021-09-30 07:54:13.970][27818][dn_6001_6002][gs_rewind]: connect to primary success
[2021-09-30 07:54:13.971][27818][dn_6001_6002][gs_rewind]: get pg_control success
[2021-09-30 07:54:13.972][27818][dn_6001_6002][gs_rewind]: target server was interrupted in mode 2.
[2021-09-30 07:54:13.972][27818][dn_6001_6002][gs_rewind]: sanitychecks success
[2021-09-30 07:54:13.972][27818][dn_6001_6002][gs_rewind]: find last checkpoint at 0/3b3ce868 and checkpoint redo at 0/3b3ce7e8 from source control file
[2021-09-30 07:54:13.972][27818][dn_6001_6002][gs_rewind]: find last checkpoint at 0/3b3ce868 and checkpoint redo at 0/3b3ce7e8 from target control file
[2021-09-30 07:54:13.974][27818][dn_6001_6002][gs_rewind]: find max lsn success, find max lsn rec (0/3b3ce868) success.
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: request lsn is 0/3b3ce868 and its crc(source, target):[3849081485, 3849081485]
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: find common checkpoint 0/3b3ce868
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: find diverge point success
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: read checkpoint redo (0/3b3ce7e8) success before rewinding.
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: rewinding from checkpoint redo point at 0/3b3ce7e8 on timeline 1
[2021-09-30 07:54:13.979][27818][dn_6001_6002][gs_rewind]: diverge xlogfile is 00000001000000000000003b, older ones will not be copied or removed.
[2021-09-30 07:54:13.980][27818][dn_6001_6002][gs_rewind]: targetfilestatthread success pid 139740617094912.
[2021-09-30 07:54:13.980][27818][dn_6001_6002][gs_rewind]: reading source file list
[2021-09-30 07:54:13.980][27818][dn_6001_6002][gs_rewind]: traverse_datadir start.
[2021-09-30 07:54:13.983][27818][dn_6001_6002][gs_rewind]: filemap_list_to_array start.
[2021-09-30 07:54:13.983][27818][dn_6001_6002][gs_rewind]: filemap_list_to_array end sort start. length is 2704
[2021-09-30 07:54:13.983][27818][dn_6001_6002][gs_rewind]: sort end.
[2021-09-30 07:54:13.990][27818][dn_6001_6002][gs_rewind]: targetfilestatthread return success.
[2021-09-30 07:54:14.001][27818][dn_6001_6002][gs_rewind]: reading target file list
[2021-09-30 07:54:14.005][27818][dn_6001_6002][gs_rewind]: traverse target datadir success
[2021-09-30 07:54:14.005][27818][dn_6001_6002][gs_rewind]: reading wal in target
[2021-09-30 07:54:14.005][27818][dn_6001_6002][gs_rewind]: could not read wal record at 0/3b3ce900: invalid record length at 0/3b3ce900: wanted 32, got 0
[2021-09-30 07:54:14.006][27818][dn_6001_6002][gs_rewind]: calculate totals rewind success
[2021-09-30 07:54:14.006][27818][dn_6001_6002][gs_rewind]: need to copy 17mb (total source directory size is 540mb)
[2021-09-30 07:54:14.006][27818][dn_6001_6002][gs_rewind]: starting background wal receiver
[2021-09-30 07:54:14.006][27818][dn_6001_6002][gs_rewind]: starting copy xlog, start point: 0/3b3ce7e8
[2021-09-30 07:54:14.006][27818][dn_6001_6002][gs_rewind]: in gs_rewind proecess,so no need remove.
[2021-09-30 07:54:14.012][27818][dn_6001_6002][gs_rewind]: check identify system success
[2021-09-30 07:54:14.012][27818][dn_6001_6002][gs_rewind]: send start_replication 0/3b000000 success
[2021-09-30 07:54:14.047][27818][dn_6001_6002][gs_rewind]: receiving and unpacking files...
[2021-09-30 07:54:14.173][27818][dn_6001_6002][gs_rewind]: execute file map success
[2021-09-30 07:54:14.174][27818][dn_6001_6002][gs_rewind]: find minrecoverypoint success from xlog insert location 0/3b3d2d80
[2021-09-30 07:54:14.174][27818][dn_6001_6002][gs_rewind]: update pg_control file success, minrecoverypoint: 0/3b3d2d80, ckploc:0/3b3ce868, ckpredo:0/3b3ce7e8, preckp:0/3b3ce750
[2021-09-30 07:54:14.176][27818][dn_6001_6002][gs_rewind]: update pg_dw file success
[2021-09-30 07:54:14.177][27818][dn_6001_6002][gs_rewind]: xlog end point: 0/3b3d2d80
[2021-09-30 07:54:14.177][27818][dn_6001_6002][gs_rewind]: waiting for background process to finish streaming...
[2021-09-30 07:54:19.086][27818][dn_6001_6002][gs_rewind]: creating backup label and updating control file
[2021-09-30 07:54:19.086][27818][dn_6001_6002][gs_rewind]: create backup label success
[2021-09-30 07:54:19.086][27818][dn_6001_6002][gs_rewind]: read checkpoint redo (0/3b3ce7e8) success.
[2021-09-30 07:54:19.086][27818][dn_6001_6002][gs_rewind]: read checkpoint rec (0/3b3ce868) success.
[2021-09-30 07:54:19.086][27818][dn_6001_6002][gs_rewind]: dn incremental build completed.
[2021-09-30 07:54:19.090][27818][dn_6001_6002][gs_rewind]: fetching mot checkpoint
[2021-09-30 07:54:19.201][27818][dn_6001_6002][gs_ctl]: waiting for server to start...
repmgr：
命令为：
repmgr node rejoin -d ‘host=172.20.10.1 user=repmgr dbname=repmgr connect\_timeout=2’ --force-rewind --verbose
四.switchover
都是在备机执行，将本节点提升为主库，同时主节点降级为该新主的备机。
mogha/opengauss：
gs_ctl switchover -d /gaussdb/data/dn1
[omm@node2 ~]$ gs_ctl switchover -d /gaussdb/data/dn1
[2021-09-30 08:02:09.192][30742][][gs_ctl]: gs_ctl switchover ,datadir is /gaussdb/data/dn1
[2021-09-30 08:02:09.192][30742][][gs_ctl]: switchover term (1)
[2021-09-30 08:02:09.196][30742][][gs_ctl]: waiting for server to switchover..........
[2021-09-30 08:02:16.327][30742][][gs_ctl]: done
[2021-09-30 08:02:16.327][30742][][gs_ctl]: switchover completed (/gaussdb/data/dn1)
repmgr:
repmgr -f /home/postgres/repmgr.conf standby switchover -u repmgr --verbose
[postgres@enmo-02 ~]$ repmgr -f /home/postgres/repmgr.conf standby switchover -u repmgr --verbose
notice: using provided configuration file "/home/postgres/repmgr.conf"
warning: following problems with command line parameters detected:
database connection parameters not required when executing standby switchover
debug: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=10.28.3.134 port=6000 fallback_application_name=repmgr"
debug: set_config():
set synchronous_commit to 'local'
debug: get_node_record():
select n.node_id, n.type, n.upstream_node_id, n.node_name, n.conninfo, n.repluser, n.slot_name, n.location, n.priority, n.active, n.config_file, '' as upstream_node_name, null as attached from repmgr.nodes n where n.node_id = 2
notice: executing switchover on node "falcon_6002" (id: 2)
debug: get_recovery_type(): select pg_catalog.pg_is_in_recovery()
info: searching for primary node
debug: get_primary_connection():
五.mogdb/opengauss高可用工具mogha & repmgr 切换
在这一方面mogha/opengauss的集群管理工具是gs_om，通过gs_om -t status --detail或者gs_om -t query 查看集群的相关状态，但是om工具本身是不支持高可用的自动切换的，因此，针对这个问题，云和恩墨自主研发了mogha高可用工具，它可以通过网络，主备角色状态，孤单检查，心跳检查等多个维度对数据库和主备节点进行检查，确保mogha/opengauss数据库集群能提供长稳运行，且最大程度降低故障切换对业务的影响。支持脑裂检查以及假主处理，vip自动漂移到新主节点的功能，是一款比较方便且可信的高可用工具。
而repmgr在这边可以通过编写repmgr_promote.sh和repmgr_follow.shd脚本的方式，实现数据库的高可用自动切换。和mogdb/opengauss mogha om的一套体系相比，缺少了mogha在switchover之后对数据库节点角色检查并vip飘移到新主的功能，可能是美中不足。
最后修改时间：2021-12-10 02:05:49
