1.构建yum源

在/etc/yum.repos.d下创建docker-ce.repo

docker-ce.repok可在https://download.docker.com/linux/centos/docker-ce.repo下载

查看仓库中全部docker版本，并选择特定版本安装

[root@node1 yum.repos.d]# yum makecache
loaded plugins: fastestmirror, product-id, search-disabled-repos, subscription-manager
this system is not registered with an entitlement server. you can use subscription-manager to register.
docker-ce-stable                                                                                                                          | 3.5 kb  00:00:00
loading mirror speeds from cached hostfile
docker-ce-stable/7/x86_64/primary_db                                                                                                      |  70 kb  00:00:00
docker-ce-stable/7/x86_64/filelists_db                                                                                                    |  29 kb  00:00:00
docker-ce-stable/7/x86_64/other_db                                                                                                        | 122 kb  00:00:00
metadata cache created
[root@node1 yum.repos.d]# yum list  |grep docker
containerd.io.x86_64             1.4.12-3.1.el7                 docker-ce-stable
docker-ce.x86_64                 3:20.10.12-3.el7               docker-ce-stable
docker-ce-cli.x86_64             1:20.10.12-3.el7               docker-ce-stable
docker-ce-rootless-extras.x86_64 20.10.12-3.el7                 docker-ce-stable
docker-ce-selinux.noarch         17.03.3.ce-1.el7               docker-ce-stable
docker-scan-plugin.x86_64        0.12.0-3.el7                   docker-ce-stable

2.安装docker-ce

[root@node1 yum.repos.d]# yum install docker-ce -y

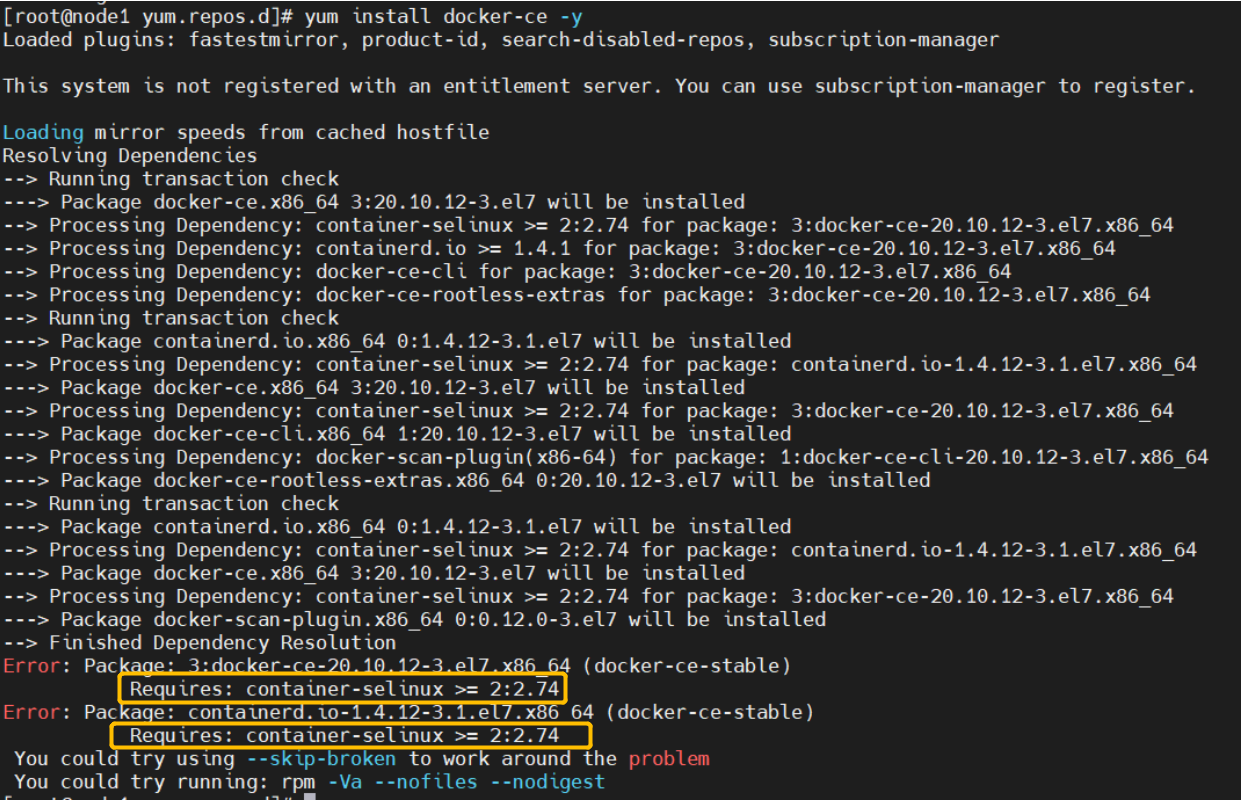

解决安装报错:

只需要安装container-selinux包，就可以了

[root@localhost ~]# yum install -y container-selinux
  loaded plugins: fastestmirror
  loading mirror speeds from cached hostfile

  - base: mirrors.bfsu.edu.cn
  - extras: mirrors.bfsu.edu.cn
  - updates: mirrors.bfsu.edu.cn
    resolving dependencies
    --> running transaction check
    ---> package container-selinux.noarch 2:2.119.2-1.911c772.el7_8 will be installed
    --> processing dependency: selinux-policy-targeted >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
    --> processing dependency: selinux-policy-base >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
    --> processing dependency: selinux-policy >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
    --> processing dependency: policycoreutils-python for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
    --> running transaction check

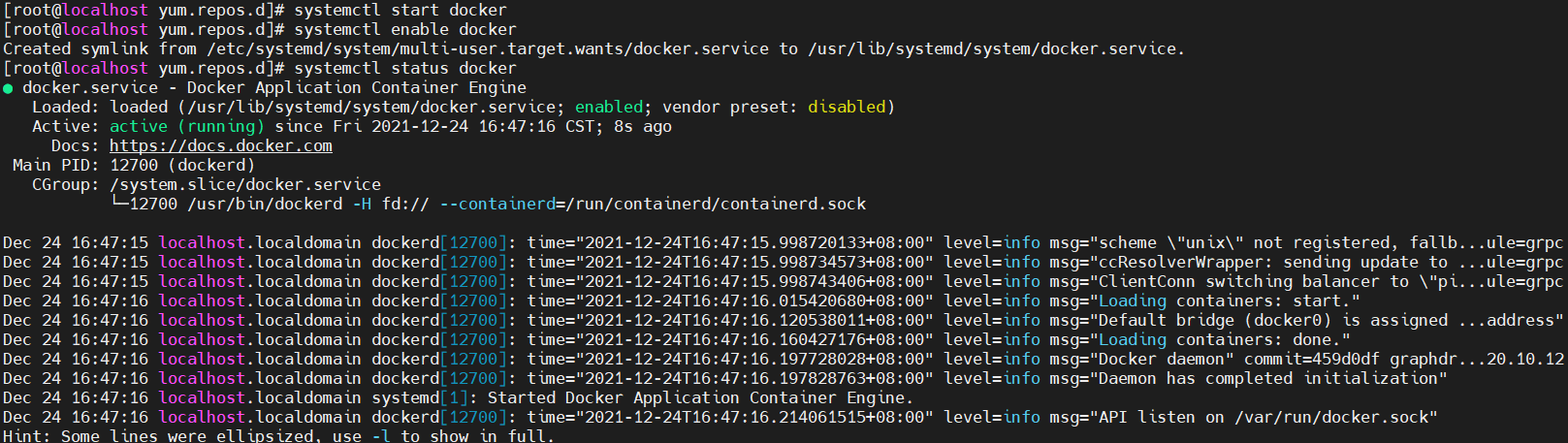

3.启动docker

 systemctl start docker
 systemctl enable docker
 systemctl status docker

1.拉取pg14.1镜像

[root@localhost ~]# docker pull postgres:14.1
14.1: pulling from library/postgres
a2abf6c4d29d: pull complete
e1769f49f910: pull complete
33a59cfee47c: pull complete
461b2090c345: pull complete
8ed8ab6290ac: pull complete
495e42c822a0: pull complete
18e858c71c58: pull complete
594792c80d5f: pull complete
794976979956: pull complete
eb5e1a73c3ca: pull complete
6d6360292cba: pull complete
131e916e1a28: pull complete
b84c0e55930b: pull complete
digest: sha256:17286f7ca2590bdfdfa3afd3305d839780c33c4f9af167a45e537f22d3cafcb0
status: downloaded newer image for postgres:14.1
docker.io/library/postgres:14.1

2.查看本地pg镜像

[root@localhost ~]# docker images
repository   tag       image id       created      size
postgres     14.1      cdbebe091601   2 days ago   374mb

3.映射目录

创建postgresql数据库容器的数据目录路径挂载到的宿主机路径，保证容器销毁后数据还在

[root@localhost ~]# mkdir -p /docker/postgresql/data/

4.运行pg容器

[root@localhost ~]# docker run -d --name postgresql --restart always -v /docker/postgresql/data/:/var/lib/postgresql/data -e postgres_password=123456 -p 15432:5432 postgres:14.1
09b45ee81642527ebcdf25c48a25a9e2524068562f889b8a103a915444363c78

-d 表示启动后在后台运行，不启动日志

-name 容器名 表示给容器命名

–restart always 表示如果容器死掉，会自动拉起，可以不配置

-v 宿主机路径:容器内路径 把容器内路径挂载到宿主机路径，保证容器销毁后数据还在

-p 宿主机端口:容器端口 把宿主机端口和容器内端口进行映射

-e postgres_password=123456 设置环境变量值，这里设置了数据库的密码

5.查看启动的容器状态

[root@localhost ~]# docker ps
container id   image           command                  created         status         ports                                         names
09b45ee81642   postgres:14.1   "docker-entrypoint.s…"   8 seconds ago   up 6 seconds   0.0.0.0:15432->5432/tcp, :::15432->5432/tcp   postgresql

（查看所有的容器用docker ps -a）

6.进入容器查看pg数据库版本

[root@localhost ~]# docker exec -it postgresql bash
root@09b45ee81642:/# su - postgres
postgres@09b45ee81642:~$ psql
psql (14.1 (debian 14.1-1.pgdg110 1))
type "help" for help.
postgres=# select version();
                                                           version
-----------------------------------------------------------------------------------------------------------------------------
 postgresql 14.1 (debian 14.1-1.pgdg110 1) on x86_64-pc-linux-gnu, compiled by gcc (debian 10.2.1-6) 10.2.1 20210110, 64-bit
(1 row)

-i: 以交互模式运行容器，通常与 -t 同时使用

-t: 为容器重新分配一个伪输入终端，通常与 -i 同时使用；

pg14的docker部署完成

1.搜索prometheus镜像

搜索可用的prometheus镜像，并选择使用数量最多的

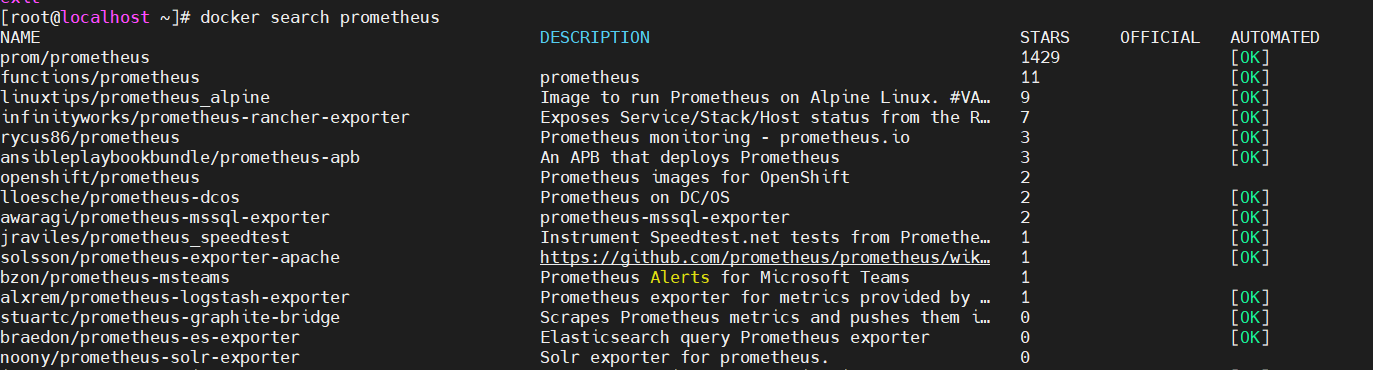

[root@localhost ~]# docker search prometheus

2.拉取prometheus镜像

[root@localhost ~]# docker pull prom/prometheus
using default tag: latest
latest: pulling from prom/prometheus
3cb635b06aa2: pull complete
34f699df6fe0: pull complete
33d6c9635e0f: pull complete
f2af7323bed8: pull complete
c16675a6a294: pull complete
827843f6afe6: pull complete
3d272942eeaf: pull complete
7e785cfa34da: pull complete
05e324559e3b: pull complete
170620261a59: pull complete
ec35f5996032: pull complete
5509173eb708: pull complete
digest: sha256:cb9817249c346d6cfadebe383ed3b3cd4c540f623db40c4ca00da2ada45259bb
status: downloaded newer image for prom/prometheus:latest
docker.io/prom/prometheus:latest
[root@localhost ~]# docker images
repository        tag       image id       created      size
postgres          14.1      cdbebe091601   2 days ago   374mb
prom/prometheus   latest    a3d385fc29f9   6 days ago   201mb

3.开启prometheus容器

[root@localhost ~]#  docker run --name prometheus --privileged=true -di -p 9090:9090 prom/prometheus
708e0cb45bdb16c9ccc5b6d89204c361c6145f03ff7bf3e8be78f2941b707e6a
[root@localhost ~]# docker ps
container id   image             command                  created             status             ports                                         names
708e0cb45bdb   prom/prometheus   "/bin/prometheus --c…"   5 minutes ago       up 5 minutes       0.0.0.0:9090->9090/tcp, :::9090->9090/tcp     prometheus
09b45ee81642   postgres:14.1     "docker-entrypoint.s…"   about an hour ago   up about an hour   0.0.0.0:15432->5432/tcp, :::15432->5432/tcp   postgresql

4.bash报错，可以用/bin/sh替代

[root@localhost ~]# docker exec -it prometheus bash
oci runtime exec failed: exec failed: container_linux.go:380: starting container process caused: exec: "bash": executable file not found in $path: unknown
[root@localhost ~]# docker exec -it prometheus /bin/sh
/prometheus $ find / -name prometheus
/bin/prometheus
/etc/prometheus
find: /root: permission denied
/usr/share/prometheus
find: /proc/tty/driver: permission denied
/prometheus

5.拉起prometheus

/prometheus $ /bin/prometheus --web.listen-address="0.0.0.0:9090" --config.file="/etc/prometheus/prometheus.yml" --log.level=info
ts=2021-12-24t10:17:39.879z caller=main.go:478 level=info msg="no time or size retention was set so using the default time retention" duration=15d
ts=2021-12-24t10:17:39.880z caller=main.go:515 level=info msg="starting prometheus" version="(version=2.32.1, branch=head, revision=41f1a8125e664985dd30674e5bdf6b683eff5d32)"
ts=2021-12-24t10:17:39.880z caller=main.go:520 level=info build_context="(go=go1.17.5, user=root@54b6dbd48b97, date=20211217-22:08:06)"
ts=2021-12-24t10:17:39.880z caller=main.go:521 level=info host_details="(linux 3.10.0-693.el7.x86_64 #1 smp tue aug 22 21:09:27 utc 2017 x86_64 708e0cb45bdb (none))"
ts=2021-12-24t10:17:39.880z caller=main.go:522 level=info fd_limits="(soft=1048576, hard=1048576)"
ts=2021-12-24t10:17:39.880z caller=main.go:523 level=info vm_limits="(soft=unlimited, hard=unlimited)"
ts=2021-12-24t10:17:39.883z caller=web.go:570 level=info component=web msg="start listening for connections" address=0.0.0.0:9090
/prometheus $ ps -ef | grep prometheus
    1 nobody    0:00 /bin/prometheus --config.file=/etc/prometheus/prometheus.yml --storage.tsdb.path=/prometheus --web.console.libraries=/usr/share/prometheus/console_libraries --web.console.templates=/usr/share/prometheus/consoles
/prometheus $ netstat -altp | grep 9090
tcp        0      0 localhost:58478         localhost:9090          established 1/prometheus
tcp        0      0 :::9090                 :::*                    listen      1/prometheus
tcp        0      0 ::ffff:127.0.0.1:9090   ::ffff:127.0.0.1:58478  established 1/prometheus

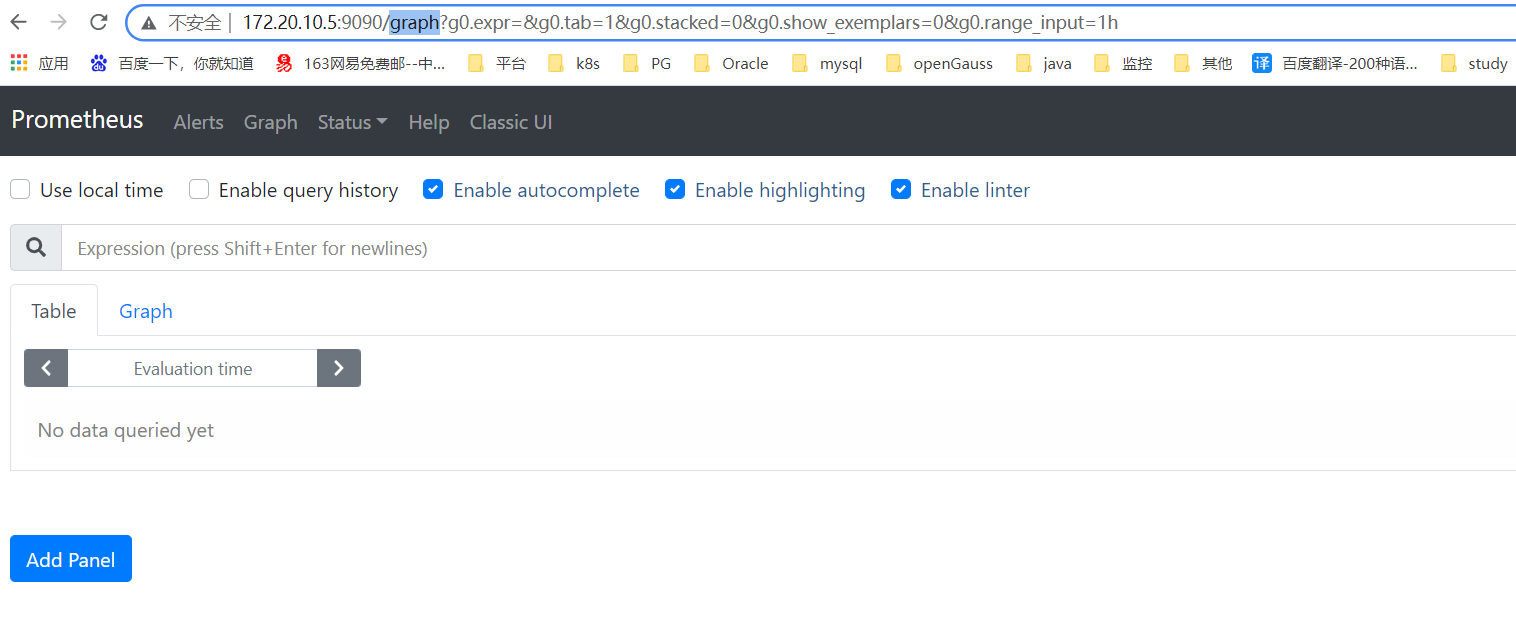

6.去浏览器验证

我的地址为172.20.10.5，所以访问的地址为172.20.10.5:9090

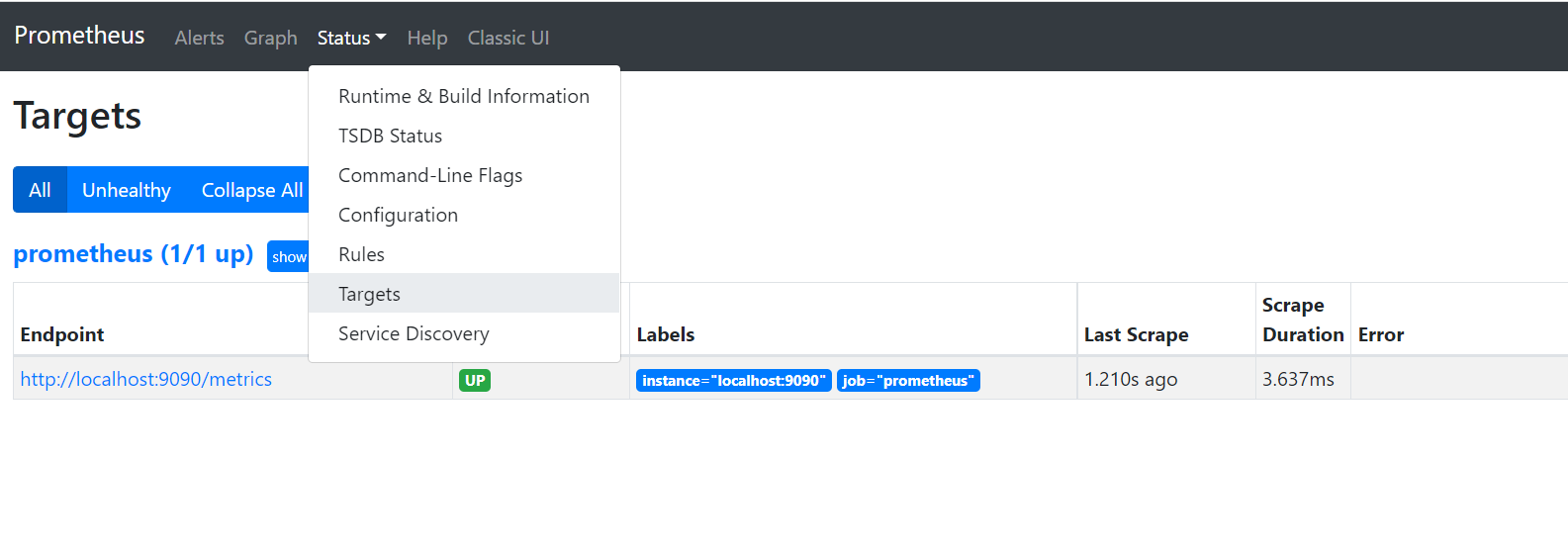

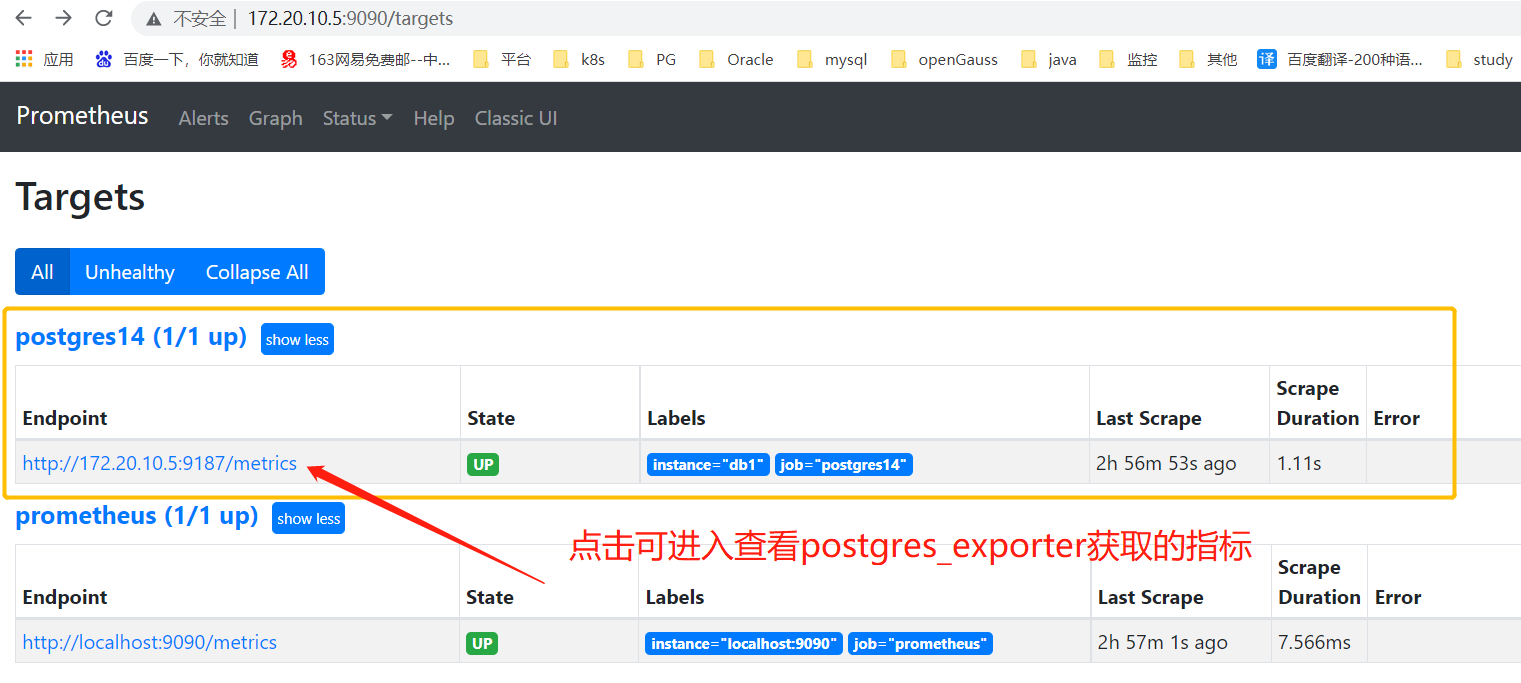

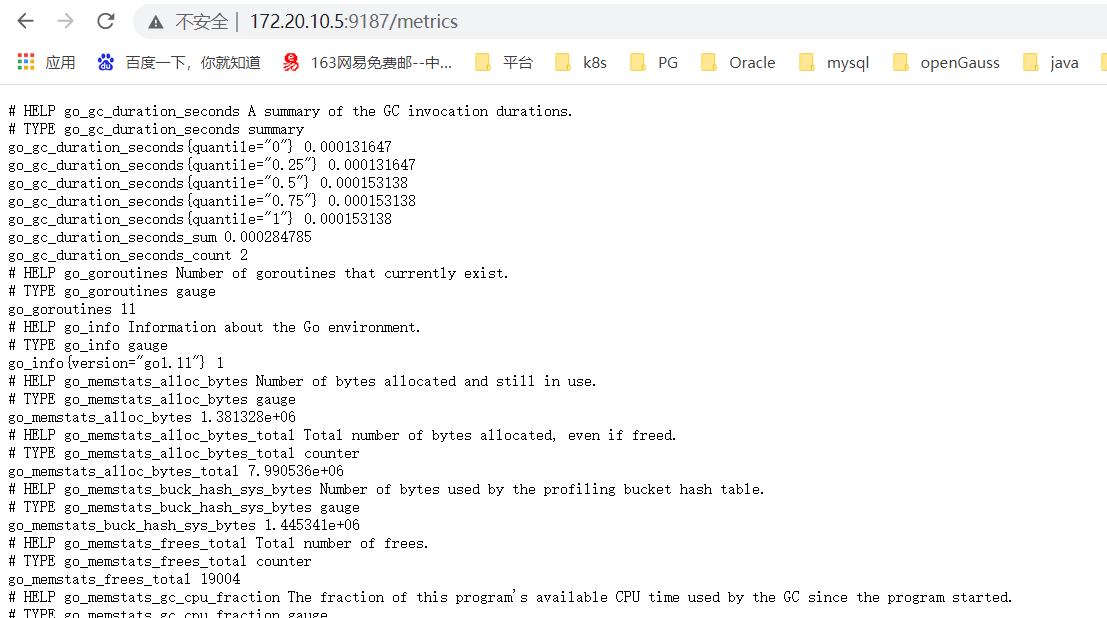

如果配置exporter的话，可以通过如下界面获取exporter的状态，可以点击endpoint，来查看当前抽取到的一些指标，这些指标监控项可以在graph界面查询值和随时间变化的趋势，可以根据表达式进行处理，或者加入到grafana上边，形成更加直观的界面。

1.拉取postgres_exporter

[root@localhost ~]# docker pull wrouesnel/postgres_exporter
using default tag: latest
latest: pulling from wrouesnel/postgres_exporter
45b42c59be33: pull complete
4634a89d50c2: pull complete
fbcf7c278f83: pull complete
digest: sha256:54bd3ba6bc39a9da2bf382667db4dc249c96e4cfc837dafe91d6cc7d362829e0
status: downloaded newer image for wrouesnel/postgres_exporter:latest
docker.io/wrouesnel/postgres_exporter:latest
[root@localhost ~]# docker images
repository                    tag       image id       created         size
postgres                      14.1      cdbebe091601   2 days ago      374mb
prom/prometheus               latest    a3d385fc29f9   6 days ago      201mb
wrouesnel/postgres_exporter   latest    9fe9d3d02141   10 months ago   88.7mb

2.数据库配置

需在监控的数据库上建立监控用户并执行一下以下命令 。以非超级用户身份运行时候为了能够从pg_stat_activity和pg_stat_replication 作为非超级用户收集指标，必须以超级用户的身份创建功能和视图，并分别为它们分配权限。

postgres=# create user postgres_exporter with password 'postgres_exporter123';
create role
postgres=# alter user postgres_exporter set search_path to postgres_exporter,pg_catalog;
alter role
postgres=# create schema postgres_exporter authorization postgres_exporter;
create schema
postgres=# create function postgres_exporter.f_select_pg_stat_activity()
returns setof pg_catalog.pg_stat_activity
language sql
security definer
as $$
  select * from pg_catalog.pg_stat_activity;
$$;
create function
postgres=# create function postgres_exporter.f_select_pg_stat_replication()
returns setof pg_catalog.pg_stat_replication
language sql
security definer
as $$
  select * from pg_catalog.pg_stat_replication;
$$;
create function
postgres=# create view postgres_exporter.pg_stat_replication
as
  select * from postgres_exporter.f_select_pg_stat_replication();
create view
postgres=# create view postgres_exporter.pg_stat_activity
as
  select * from postgres_exporter.f_select_pg_stat_activity();
create view
postgres=# grant select on postgres_exporter.pg_stat_replication to postgres_exporter;
grant
postgres=# grant select on postgres_exporter.pg_stat_activity to postgres_exporter;
grant

修改pg_hba.conf,使能访问数据库，注意密码校验的时候password_encryption参数以及pg_authid里密码的加密方式。

postgres=# show password_encryption;
 password_encryption
---------------------
 scram-sha-256
(1 row)
postgres=# select * from pg_authid where rolname='postgres_exporter';
-[ record 1 ]-- --------------------------------------------------------------------------------------------------------------------------------------
oid            | 16384
rolname        | postgres_exporter
rolsuper       | f
rolinherit     | t
rolcreaterole  | f
rolcreatedb    | f
rolcanlogin    | t
rolreplication | f
rolbypassrls   | f
rolconnlimit   | -1
rolpassword    | scram-sha-256$4096:1vfd4i 8uxnhv qdezaccg==$b/2wgt6zgmkhpcmk9rin apci8lk0osyc87eu8wxfnk=:f8lituzdmmmdb6rma/5pdifwc4j/mus4cavy/awmjja=
rolvaliduntil  |

pg_hba.conf加的部分如下

host    all      postgres_exporter     172.20.10.5/32     scram-sha-256

注意docker容器最简模式里可能使用不了vim或者ps,可以用如下方法解决。如果容器没有权限执行，可以在进入容器时候加上-u 0以root权限进入，再执行如下操作

root@09b45ee81642:/# apt-get update
get:1 http://security.debian.org/debian-security bullseye-security inrelease [44.1 kb]
get:2 http://deb.debian.org/debian bullseye inrelease [116 kb]
get:3 http://security.debian.org/debian-security bullseye-security/main amd64 packages [102 kb]
get:4 http://deb.debian.org/debian bullseye-updates inrelease [39.4 kb]
get:5 http://apt.postgresql.org/pub/repos/apt bullseye-pgdg inrelease [86.7 kb]
get:6 http://deb.debian.org/debian bullseye/main amd64 packages [8,183 kb]
get:7 http://apt.postgresql.org/pub/repos/apt bullseye-pgdg/main amd64 packages [234 kb]
get:8 http://deb.debian.org/debian bullseye-updates/main amd64 packages [2,592 b]
fetched 8,808 kb in 3min 55s (37.5 kb/s)
reading package lists... done
root@09b45ee81642:/# apt-get install -y vim
reading package lists... done
building dependency tree... done
reading state information... done
the following additional packages will be installed:
  libgpm2 vim-common vim-runtime xxd
suggested packages:
  gpm ctags vim-doc vim-scripts
the following new packages will be installed:
  libgpm2 vim vim-common vim-runtime xxd
0 upgraded, 5 newly installed, 0 to remove and 0 not upgraded.
need to get 8,174 kb of archives.
after this operation, 36.9 mb of additional disk space will be used.
get:1 http://deb.debian.org/debian bullseye/main amd64 xxd amd64 2:8.2.2434-3 deb11u1 [192 kb]
get:2 http://deb.debian.org/debian bullseye/main amd64 vim-common all 2:8.2.2434-3 deb11u1 [226 kb]
get:3 http://deb.debian.org/debian bullseye/main amd64 libgpm2 amd64 1.20.7-8 [35.6 kb]
get:4 http://deb.debian.org/debian bullseye/main amd64 vim-runtime all 2:8.2.2434-3 deb11u1 [6,226 kb]
get:5 http://deb.debian.org/debian bullseye/main amd64 vim amd64 2:8.2.2434-3 deb11u1 [1,494 kb]
fetched 8,174 kb in 7s (1,187 kb/s)
root@09b45ee81642:/# apt-get install -y procps

注意：在对docker里数据库进行配置修改后，需要重启生效时，建议直接将容器重启，不仅节约时间，也避免容器内重启库带来问题。例如:

[root@localhost ~]# docker restart postgresql

postgresql

3.运行容器使postgres_exporter可以抽取数据库指标

[root@localhost ~]#  docker run --name postgres_exporter --net=host -d -e data_source_name="postgresql://postgres:123456@172.20.10.5:15432/postgres?sslmode=disable" wrouesnel/postgres_exporter
fdff211e4514859b29fae3d7bf5ecdf2c10083034f2254d522753f2bc20d0dca
[root@localhost ~]# docker ps
container id   image                         command                  created             status             ports                                         names
be590925e24b   wrouesnel/postgres_exporter   "/postgres_exporter"     5 seconds ago       up 4 seconds       0.0.0.0:9187->9187/tcp, :::9187->9187/tcp     postgres_exporter
708e0cb45bdb   prom/prometheus               "/bin/prometheus --c…"   about an hour ago   up about an hour   0.0.0.0:9090->9090/tcp, :::9090->9090/tcp     prometheus
09b45ee81642   postgres:14.1                 "docker-entrypoint.s…"   2 hours ago         up 2 hours         0.0.0.0:15432->5432/tcp, :::15432->5432/tcp   postgresql

4.修改prometheus里的yml文件，加上postgres_exporter部分

[root@localhost ~]# docker exec -it prometheus /bin/sh
/prometheus $ cd /etc/prometheus/
/etc/prometheus $ ls
console_libraries  consoles           prometheus.yml
/etc/prometheus $ vi prometheus.yml

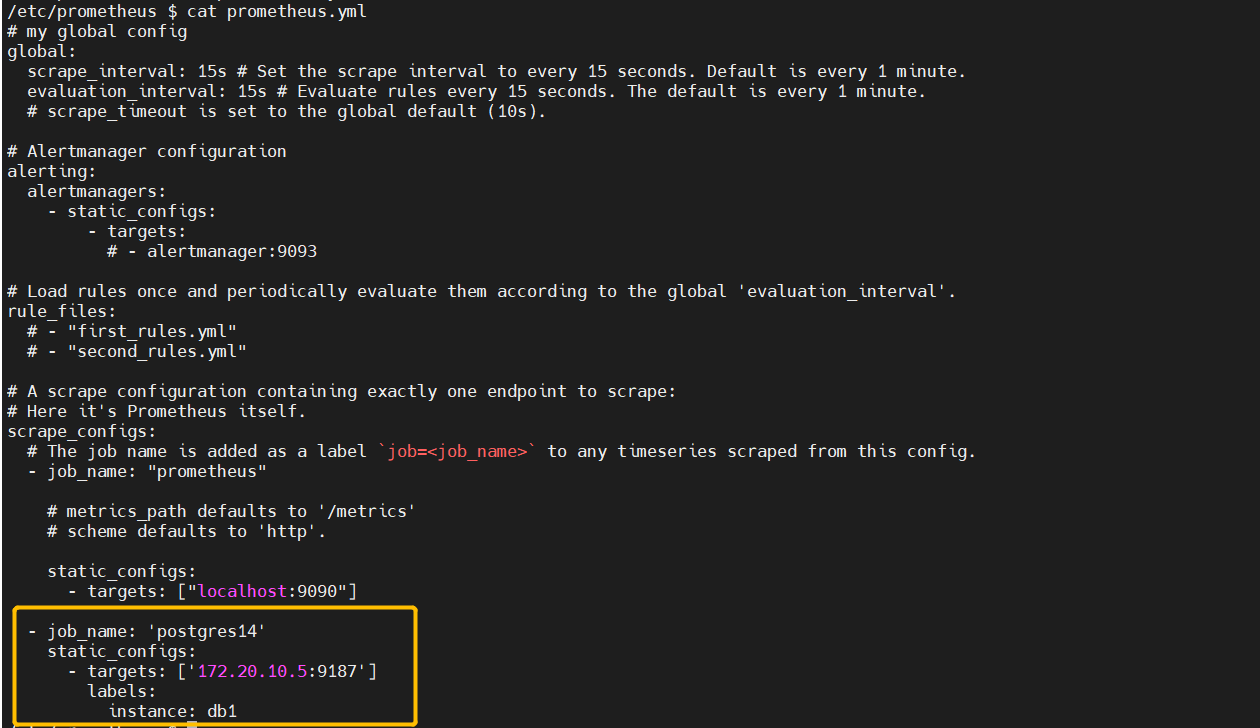

最下边黄框部分是我加的postgres_exporter部分

5.重启prometheus容器

[root@localhost ~]# docker restart prometheus
prometheus

6.浏览器验证

依旧是登录到prometheus的9090端口

点击查看metrics里指标，部分指标如下。

1.拉取grafana镜像

[root@localhost ~]# docker pull grafana/grafana:5.1.0
5.1.0: pulling from grafana/grafana
2a72cbf407d6: pull complete
89f824064239: pull complete
b90280be2e0d: pull complete
digest: sha256:a6b37f9afdd9782f1e6264acaf3b09519aad454f34ca6b0e863dd9873e11fa67
status: downloaded newer image for grafana/grafana:5.1.0
docker.io/grafana/grafana:5.1.0

如果下载太慢的话可以执行参考下边操作再下载,速度会远远加快

[root@localhost ~]# vim /etc/docker/daemon.json
[root@localhost ~]# cat /etc/docker/daemon.json
{
  "registry-mirrors": ["https://9cpn8tt6.mirror.aliyuncs.com"]
}
[root@localhost ~]# systemctl daemon-reload
[root@localhost ~]# systemctl restart docker

2.拉起grafana容器

[root@localhost ~]# docker run --name grafana -d -p 3000:3000 grafana/grafana:5.1.0
37fa23cf597ef65a3fadfc22002b083bda6c917e0c1caadbceb54a78b92be10f
[root@localhost ~]# docker ps
container id   image                         command                  created             status          ports                                         names
37fa23cf597e   grafana/grafana:5.1.0         "/run.sh"                11 seconds ago      up 9 seconds    0.0.0.0:3000->3000/tcp, :::3000->3000/tcp     grafana
f5e8d696c988   wrouesnel/postgres_exporter   "/postgres_exporter"     about an hour ago   up 45 minutes   0.0.0.0:9187->9187/tcp, :::9187->9187/tcp     postgres_exporter
708e0cb45bdb   prom/prometheus               "/bin/prometheus --c…"   4 hours ago         up 44 minutes   0.0.0.0:9090->9090/tcp, :::9090->9090/tcp     prometheus
09b45ee81642   postgres:14.1                 "docker-entrypoint.s…"   5 hours ago         up 54 minutes   0.0.0.0:15432->5432/tcp, :::15432->5432/tcp   postgresql

可以看到最终有四个容器。

3.环境检查及网页验证

（1）.登录界面

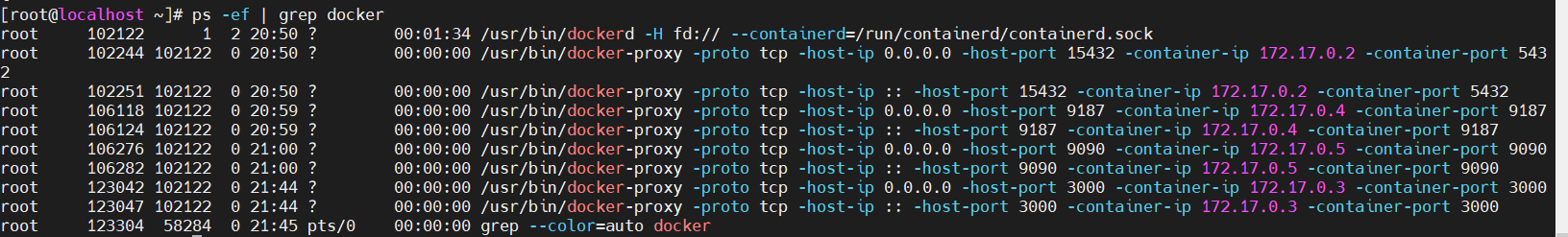

如下是docker的进程,postgresql14数据库的容器端口为5432，映射到了宿主机15432的端口。postgres_expoeter的端口宿主机和容器映射为同样的9187,prometheus的端口宿主机和容器映射为同样的9090，grafana的端口宿主机和容器映射为同样的3000。

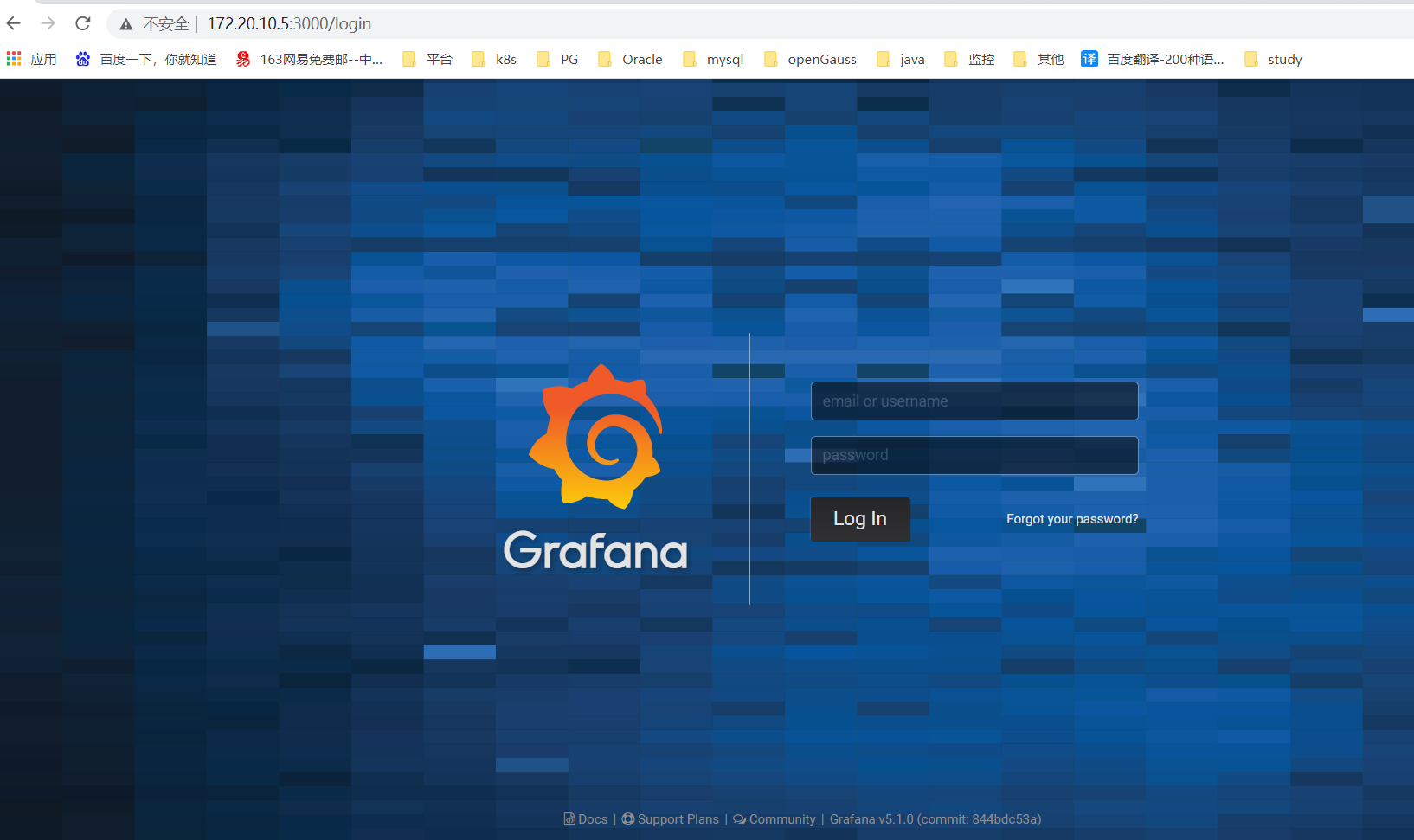

我本地的ip为172.20.10.5，访问172.20.10.5:3000

初始用户名密码为admin/admin

进入之后界面为

可以创建登录用户

（2）.配置数据源

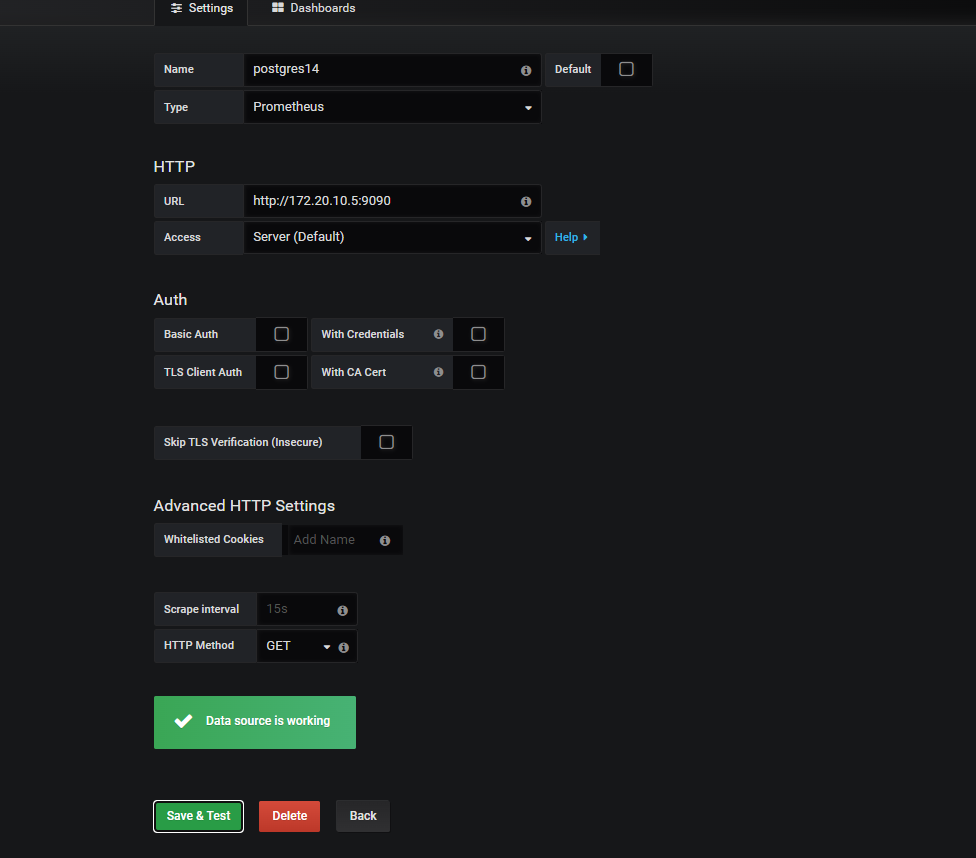

点击data sources配置数据源

点击增加

（3）.导入面板的json文件或者面板id

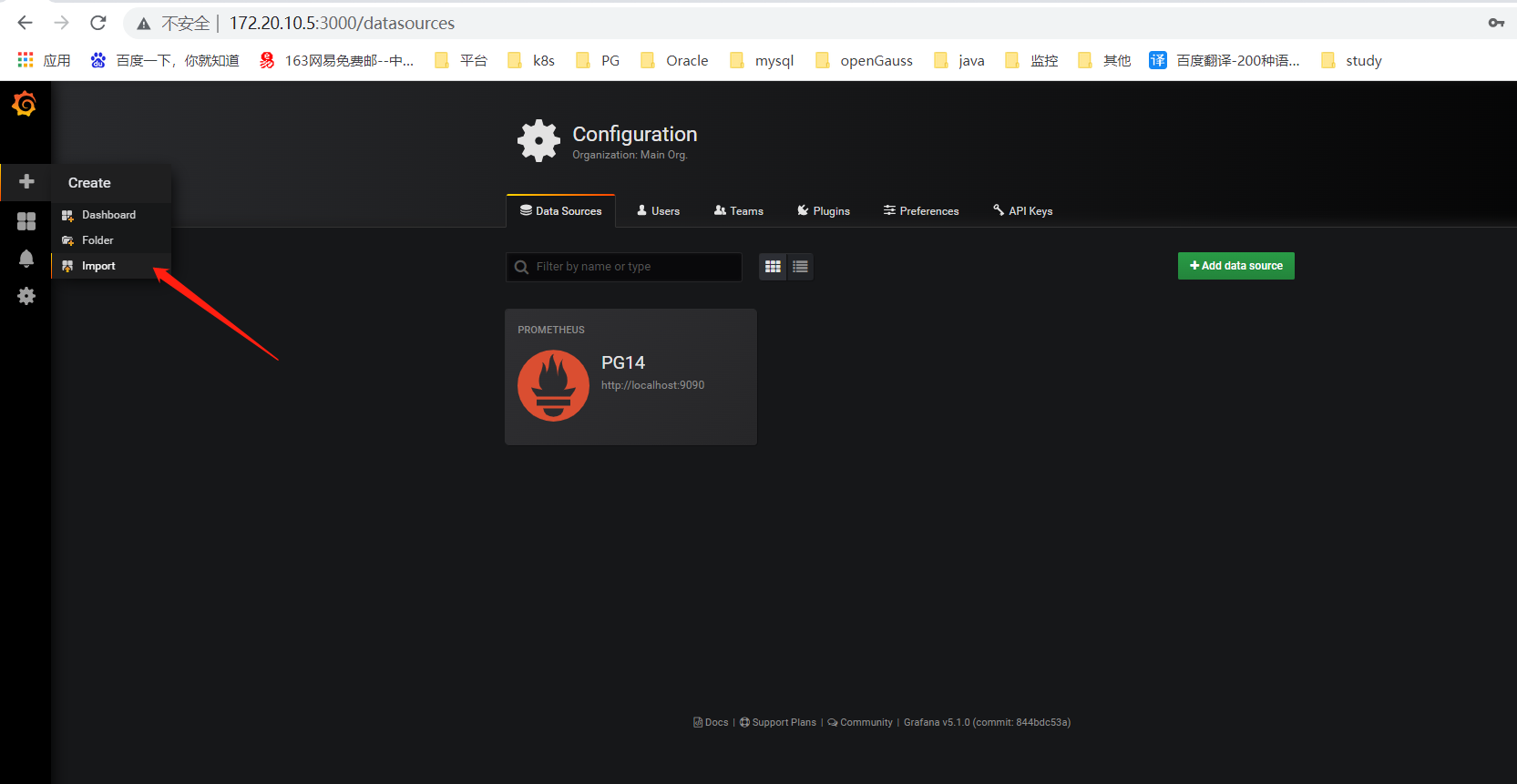

点击import

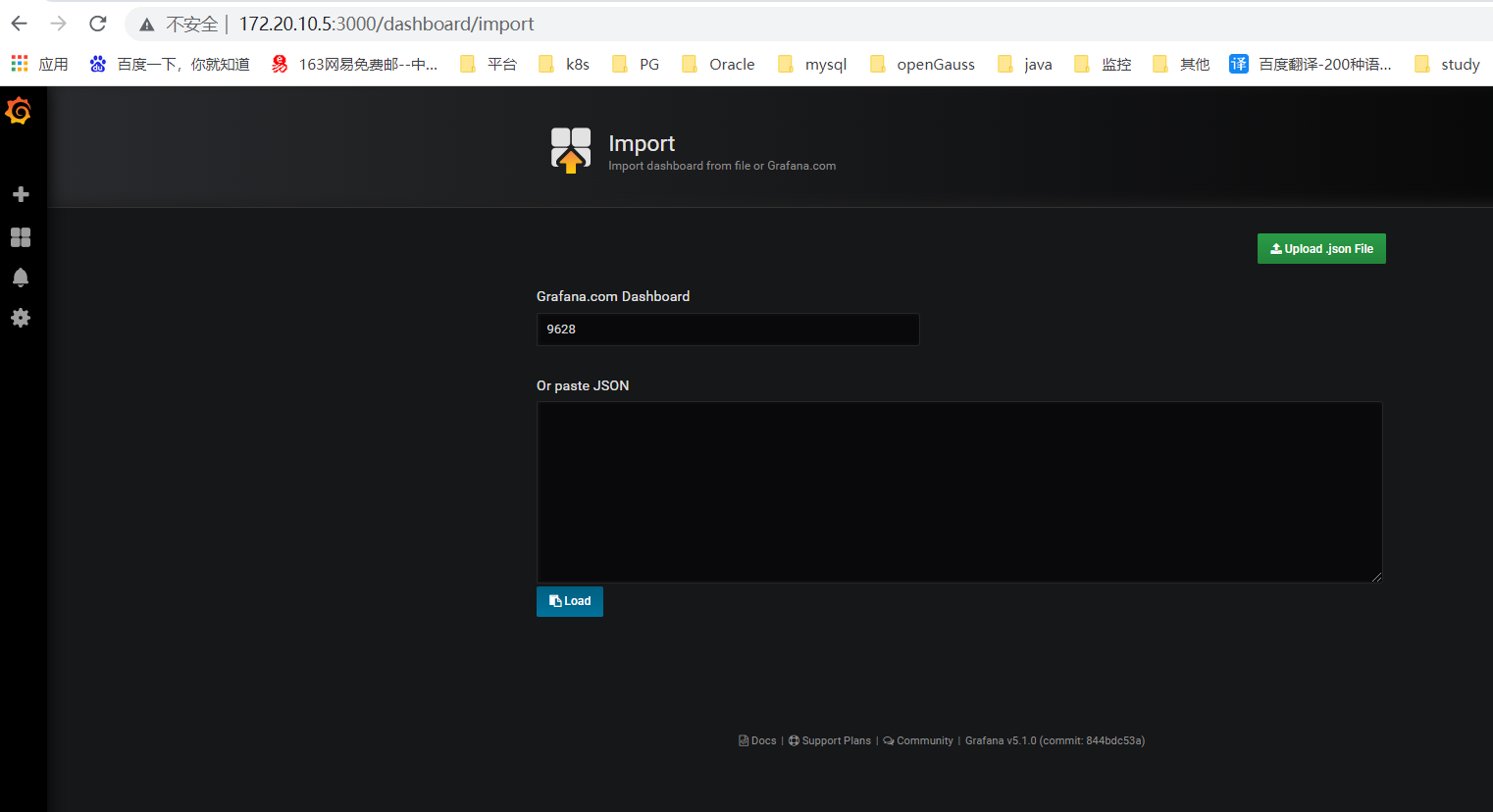

我这里选择的是填写面板id

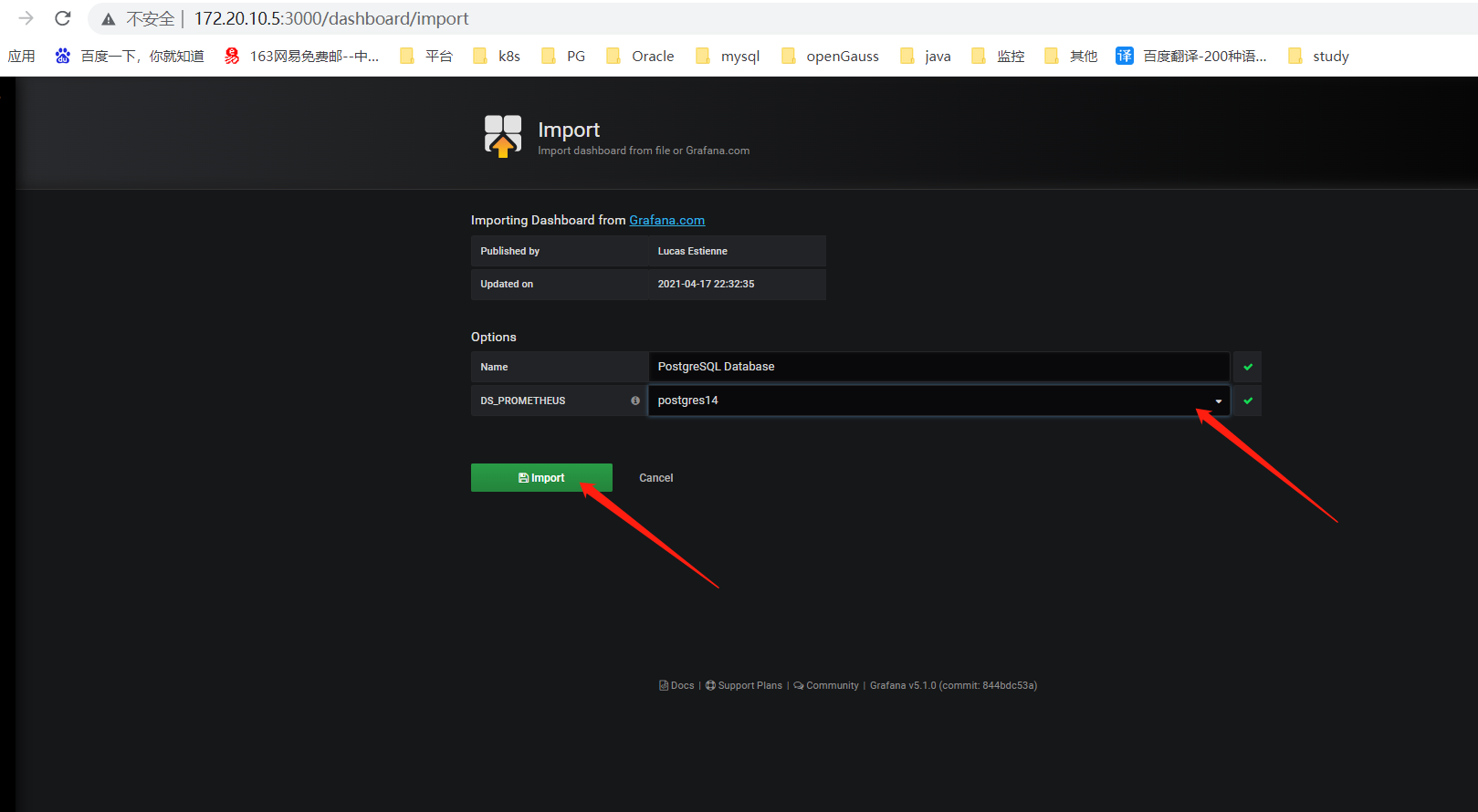

之后会出现面板的一些信息，点击import

（4）.验证

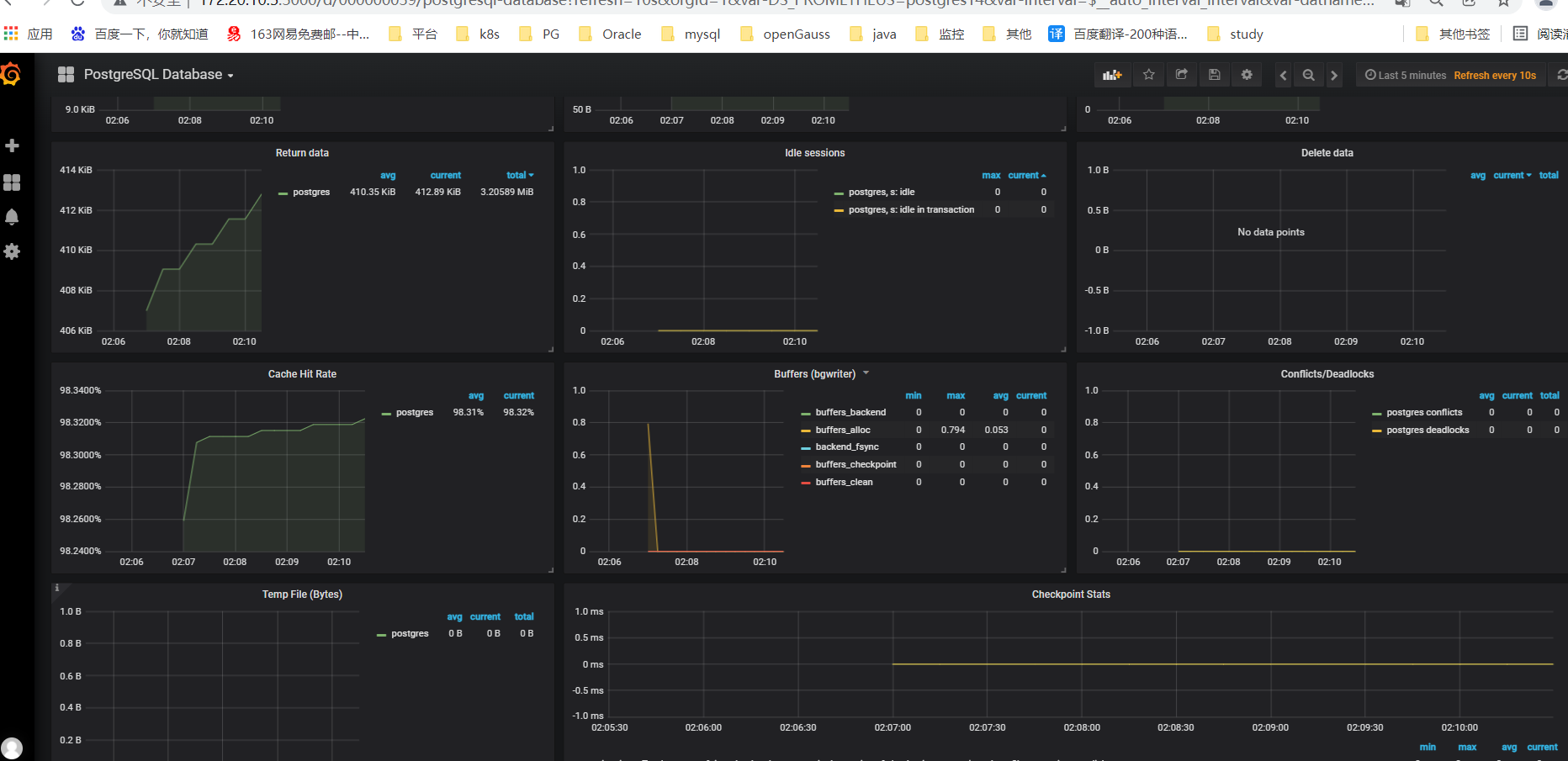

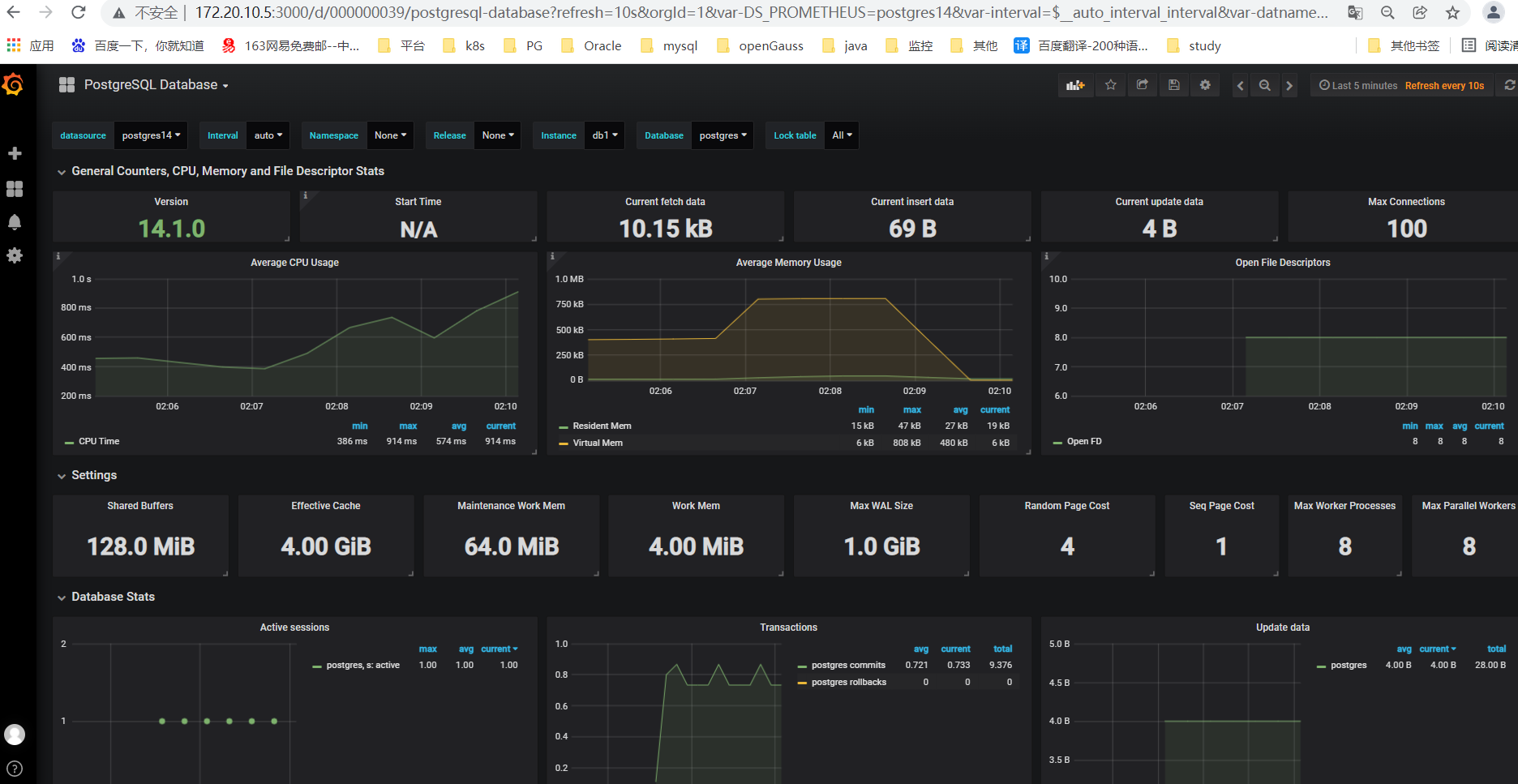

然后选择上边的数据源，实例，数据库。监控界面如图所示。

搭建完毕。

本文章是用的postgres_exporter的docker镜像搭建的，没有实现指标的自定义。

如果想自定义监控项：

1.可以通过编写ymal文件，并在启动postgres_exporter时候指定 --extend.query-path=""选项，使其根据你的文件获取监控项。

2.使用node_exporter,通过–collector.textfile.directory参数，指定自定义监控项的prom路径，需要配合脚本及crontab，将数据输出到该目录下，并产生.prom文件（需要注意文件权限）
