原创张玉龙 2022-04-17

2574

实验环境

debezium 版本 1.9 (2022-04-05)

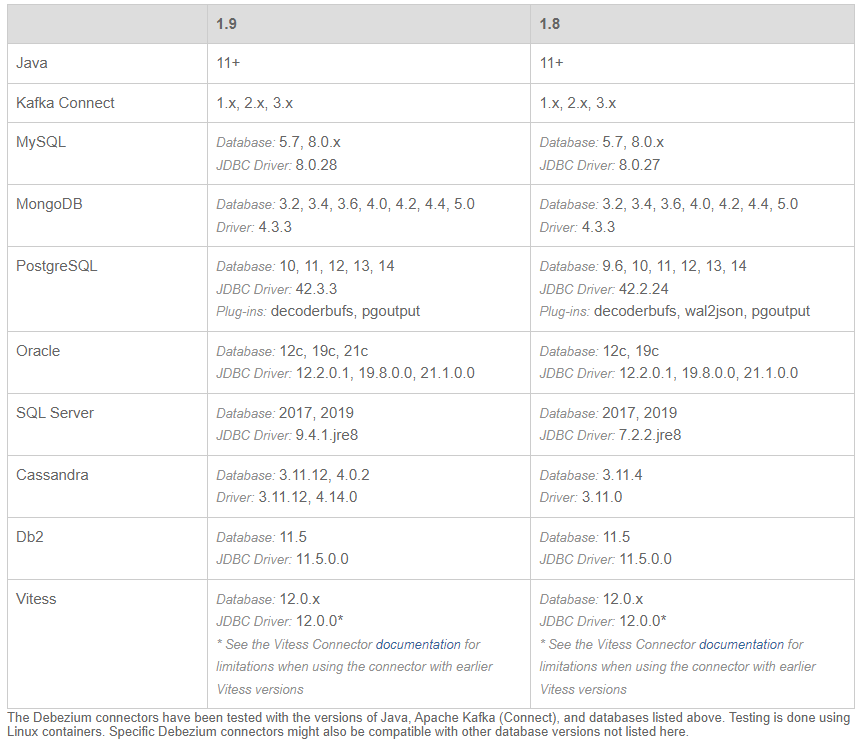

debezium tested versions
oracle 版本是单机的 19.3
本测试参考文档：

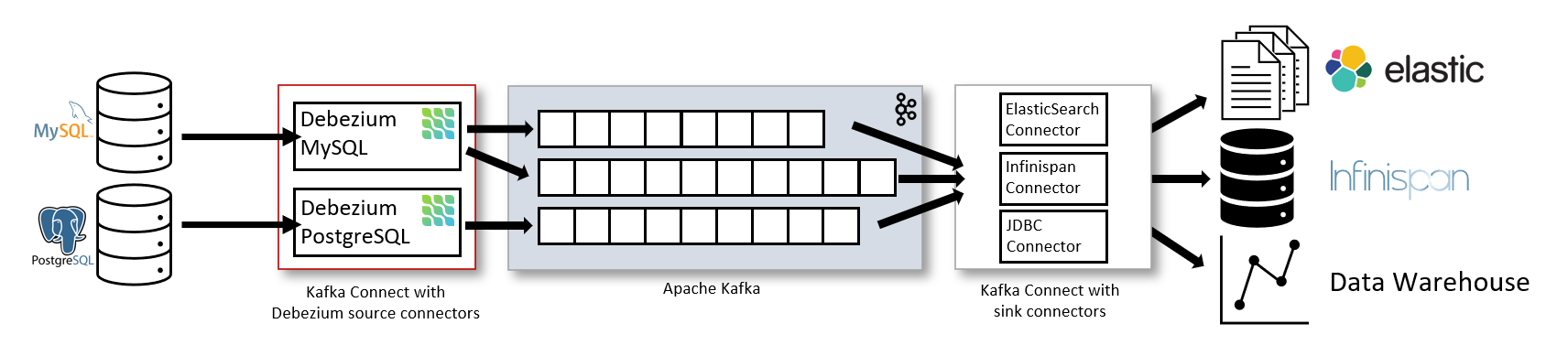

基于 debezium 的变更数据捕获的架构:

启动 zookeeper

# 后台运行
docker run -d --name zookeeper -p 2181:2181 -p 2888:2888 -p 3888:3888 quay.io/debezium/zookeeper:1.9
# 实时查看 zookeeper 的日志信息
docker logs -f -t --tail 10 zookeeper

启动 kafka

# 后台运行
docker run -d --name kafka -p 9092:9092 --link zookeeper:zookeeper quay.io/debezium/kafka:1.9
# 实时查看 kafka 的日志信息
docker logs -f -t --tail 10 kafka

启动 oracle 19c 数据库

参考文章：使用docker装一个oracle 19c的单机测试环境
19c 数据库里面创建 scott 测试用户和数据。

[oracle@ora11g ~]$ sqlplus scott/scott@192.168.0.40:1521/pdbtt
sql> set line 100 pages 100
sql> select * from scott.emp;
     empno ename      job              mgr hiredate         sal       comm     deptno
---------- ---------- --------- ---------- --------- ---------- ---------- ----------
      7369 smith      clerk           7902 17-dec-80        800                    20
      7499 allen      salesman        7698 20-feb-81       1600        300         30
      7521 ward       salesman        7698 22-feb-81       1250        500         30
      7566 jones      manager         7839 02-apr-81       2975                    20
      7654 martin     salesman        7698 28-sep-81       1250       1400         30
      7698 blake      manager         7839 01-may-81       2850                    30
      7782 clark      manager         7839 09-jun-81       2450                    10
      7788 scott      analyst         7566 19-apr-87       3000                    20
      7839 king       president            17-nov-81       5000                    10
      7844 turner     salesman        7698 08-sep-81       1500          0         30
      7876 adams      clerk           7788 23-may-87       1100                    20
      7900 james      clerk           7698 03-dec-81        950                    30
      7902 ford       analyst         7566 03-dec-81       3000                    20
      7934 miller     clerk           7782 23-jan-82       1300                    10
14 rows selected.

配置 oracle 19c 数据库

确保数据库启动归档模式，使用cdb的服务登录

[root@docker ~]# sqlplus sys/oracle@192.168.0.40:1521/orcl as sysdba
sql> archive log list;
database log mode              archive mode
automatic archival             enabled
archive destination            /opt/oracle/oradata/orcl/archive_logs
oldest online log sequence     5
next log sequence to archive   7
current log sequence           7

启用最小补充日志，使用cdb的服务登录

[root@docker ~]# sqlplus sys/oracle@192.168.0.40:1521/orcl as sysdba
-- 启用最小补充日志
sql> alter database add supplemental log data;
-- 切换到 pdb 中，为表启用补充日志
sql> alter session set container=pdbtt;
alter table scott.dept add supplemental log data (all) columns;
alter table scott.emp add supplemental log data (all) columns;
alter table scott.bonus add supplemental log data (all) columns;
alter table scott.salgrade add supplemental log data (all) columns;

在 cdb 和 pdb 中创建 logminer 用户使用的表空间

[root@docker ~]# sqlplus sys/oracle@192.168.0.40:1521/orcl as sysdba
create tablespace logminer_tbs datafile '/opt/oracle/oradata/orcl/logminer_tbs.dbf' size 25m reuse autoextend on maxsize unlimited;
-- 切换到 pdb 中，创建表空间
sql> alter session set container=pdbtt;
create tablespace logminer_tbs datafile '/opt/oracle/oradata/orcl/pdbtt/logminer_tbs.dbf' size 25m reuse autoextend on maxsize unlimited;

在 cdb 中创建 logminer 用户并授予相关权限

[root@docker ~]# sqlplus sys/oracle@192.168.0.40:1521/orcl as sysdba
create user c##dbzuser identified by dbz default tablespace logminer_tbs quota unlimited on logminer_tbs container=all;
grant create session to c##dbzuser container=all;
grant set container to c##dbzuser container=all;
grant select on v_$database to c##dbzuser container=all;
grant flashback any table to c##dbzuser container=all;
grant select any table to c##dbzuser container=all;
grant select_catalog_role to c##dbzuser container=all;
grant execute_catalog_role to c##dbzuser container=all;
grant select any transaction to c##dbzuser container=all;
grant logmining to c##dbzuser container=all;
grant create table to c##dbzuser container=all;
grant lock any table to c##dbzuser container=all;
grant create sequence to c##dbzuser container=all;
grant execute on dbms_logmnr to c##dbzuser container=all;
grant execute on dbms_logmnr_d to c##dbzuser container=all;
grant select on v_$log to c##dbzuser container=all;
grant select on v_$log_history to c##dbzuser container=all;
grant select on v_$logmnr_logs to c##dbzuser container=all;
grant select on v_$logmnr_contents to c##dbzuser container=all;
grant select on v_$logmnr_parameters to c##dbzuser container=all;
grant select on v_$logfile to c##dbzuser container=all;
grant select on v_$archived_log to c##dbzuser container=all;
grant select on v_$archive_dest_status to c##dbzuser container=all;
grant select on v_$transaction to c##dbzuser container=all;

测试数据库层面 logminer

[root@docker ~]# sqlplus sys/oracle@192.168.0.40:1521/orcl as sysdba
sql> select member from v$logfile;
member
--------------------------------------------------------------------------------
/opt/oracle/oradata/orcl/redo03.log
/opt/oracle/oradata/orcl/redo02.log
/opt/oracle/oradata/orcl/redo01.log
sql> execute dbms_logmnr.add_logfile('/opt/oracle/oradata/orcl/redo01.log',dbms_logmnr.new);
sql> execute dbms_logmnr.add_logfile('/opt/oracle/oradata/orcl/redo02.log',dbms_logmnr.addfile);
sql> execute dbms_logmnr.add_logfile('/opt/oracle/oradata/orcl/redo03.log',dbms_logmnr.addfile);
sql> execute dbms_logmnr.start_logmnr(options=>dbms_logmnr.dict_from_online_catalog dbms_logmnr.committed_data_only);
sql> select sql_redo,sql_undo from v$logmnr_contents where table_name like '�pt%' and operation='insert';
sql_redo
----------------------------------------------------------------------------------------------------
sql_undo
---------------------------------------------------------------------------------------------------------------
insert into "scott"."dept"("deptno","dname","loc") values ('10','accounting','new york');
delete from "scott"."dept" where "deptno" = '10' and "dname" = 'accounting' and "loc" = 'new york' and rowid = 'aaar1daamaaaacdaaa';
insert into "scott"."dept"("deptno","dname","loc") values ('20','research','dallas');
delete from "scott"."dept" where "deptno" = '20' and "dname" = 'research' and "loc" = 'dallas' and rowid = 'aaar1daamaaaacdaab';
insert into "scott"."dept"("deptno","dname","loc") values ('30','sales','chicago');
delete from "scott"."dept" where "deptno" = '30' and "dname" = 'sales' and "loc" = 'chicago' and rowid = 'aaar1daamaaaacdaac';
insert into "scott"."dept"("deptno","dname","loc") values ('40','operations','boston');
delete from "scott"."dept" where "deptno" = '40' and "dname" = 'operations' and "loc" = 'boston' and rowid = 'aaar1daamaaaacdaad';
-- 下面语句为结束语句
sql> execute dbms_logmnr.end_logmnr;

启动 kafka connect

# 后台运行
docker run -d --name connect \
-p 8083:8083 \
-e group_id=1 \
-e config_storage_topic=my_connect_configs \
-e offset_storage_topic=my_connect_offsets \
-e status_storage_topic=my_connect_statuses \
--link zookeeper:zookeeper \
--link kafka:kafka \
quay.io/debezium/connect:1.9
# 实时查看 kafka connect 的日志信息
docker logs -f -t --tail 10 connect

debezium oracle connector

下载 ojdbc8.jar 连接驱动
将驱动上传到 connect 容器中，重启 connect 容器

[root@docker ~]# mv ojdbc8-19.3.0.0.jar ojdbc8.jar
[root@docker ~]# docker cp ojdbc8.jar connect:/kafka/libs
[root@docker ~]# docker restart connect

准备 debezium oracle connector 配置文件
将配置文件创建在 docker 宿主机上即可，connect 容器开放了 rest api 来管理 debezium 的连接器
database.hostname 需要使用容器内的ip地址，不然加不上

[root@docker ~]# vi oracle-scott-connector.json
{
    "name": "oracle-scott-connector",
    "config": {
        "connector.class" : "io.debezium.connector.oracle.oracleconnector",
        "database.hostname" : "172.17.0.3",
        "database.port" : "1521",
        "database.user" : "c##dbzuser",
        "database.password" : "dbz",
        "database.dbname" : "orcl",
        "database.pdb.name" : "pdbtt",
        "database.server.name" : "oracle19c",
        "tasks.max" : "1",
        "schema.include.list": "scott",
        "database.history.kafka.bootstrap.servers" : "192.168.0.40:9092",
        "database.history.kafka.topic": "schema-changes.inventory"
    }
}

向 kafka 连接器注册 debezium oracle connector

[root@docker ~]# curl -i -x post -h "accept:application/json" -h "content-type:application/json" 192.168.0.40:8083/connectors/ -d @oracle-scott-connector.json
http/1.1 201 created
date: sat, 16 apr 2022 17:03:12 gmt
location: http://192.168.0.40:8083/connectors/oracle-scott-connector
content-type: application/json
content-length: 534
server: jetty(9.4.43.v20210629)
{"name":"oracle-scott-connector","config":{"connector.class":"io.debezium.connector.oracle.oracleconnector","database.hostname":"172.17.0.3","database.port":"1521","database.user":"c##dbzuser","database.password":"dbz","database.dbname":"orcl","database.pdb.name":"pdbtt","database.server.name":"oracle19c","tasks.max":"1","schema.include.list":"scott","database.history.kafka.bootstrap.servers":"192.168.0.40:9092","database.history.kafka.topic":"schema-changes.inventory","name":"oracle-scott-connector"},"tasks":[],"type":"source"}

核对捕获到的数据

进入到connect容器内部执行

[root@docker ~]# docker exec -it connect bash
[kafka@839c4a43b889 ~]$ bin/kafka-topics.sh --list --bootstrap-server kafka:9092
__consumer_offsets
my_connect_configs
my_connect_offsets
my_connect_statuses
oracle19c
oracle19c.scott.dept
oracle19c.scott.emp
oracle19c.scott.salgrade
schema-changes.inventory

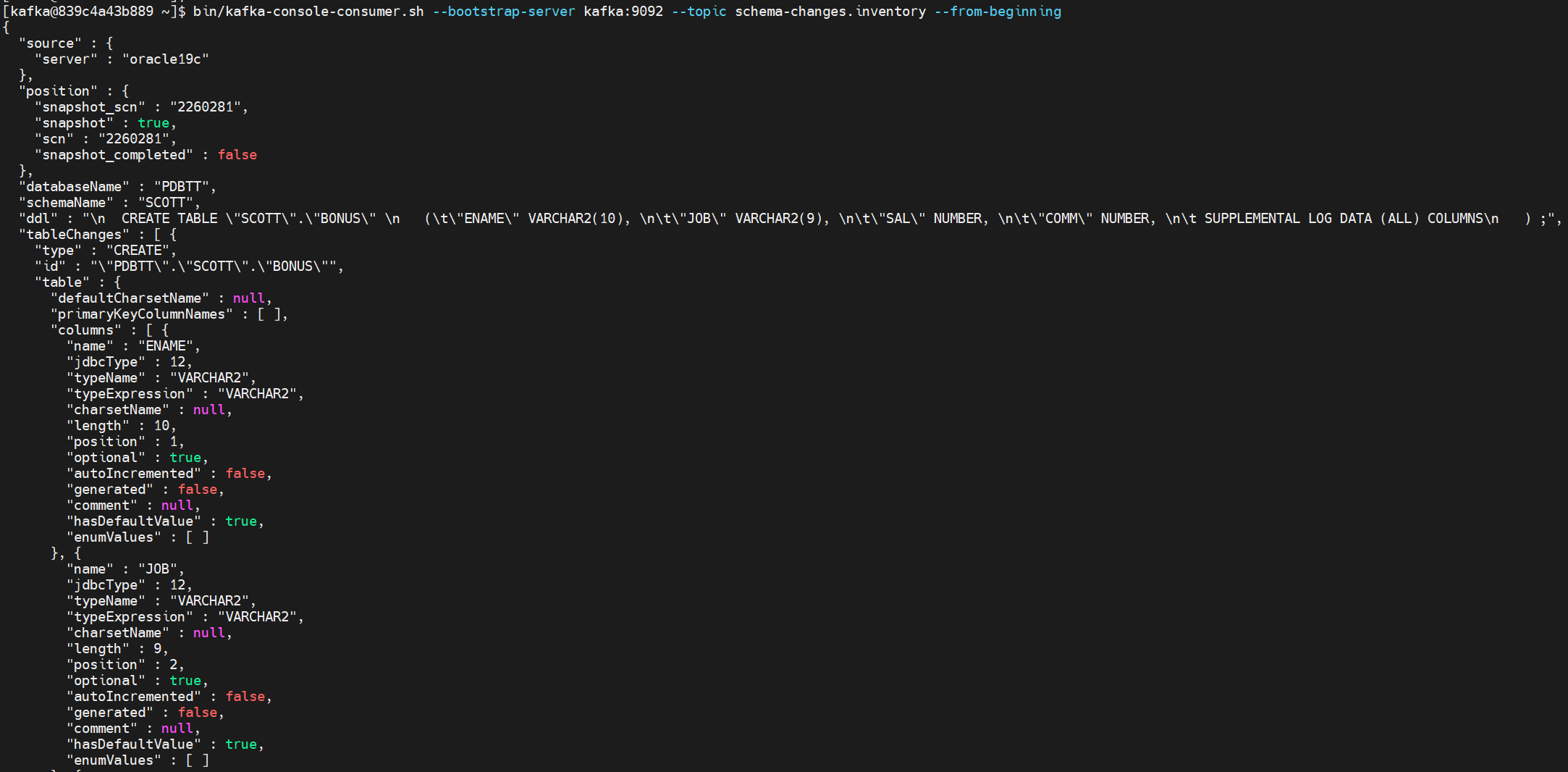

[kafka@839c4a43b889 ~]$ bin/kafka-console-consumer.sh --bootstrap-server kafka:9092 --topic schema-changes.inventory --from-beginning

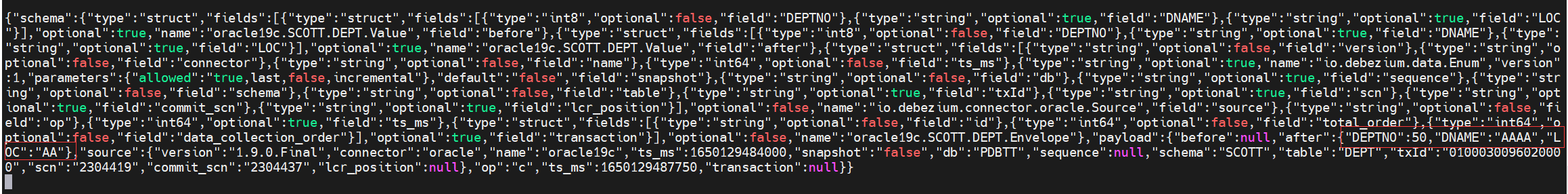

[kafka@839c4a43b889 ~]$ bin/kafka-console-consumer.sh --bootstrap-server kafka:9092 --topic oracle19c.scott.dept --from-beginning

模拟业务

insert

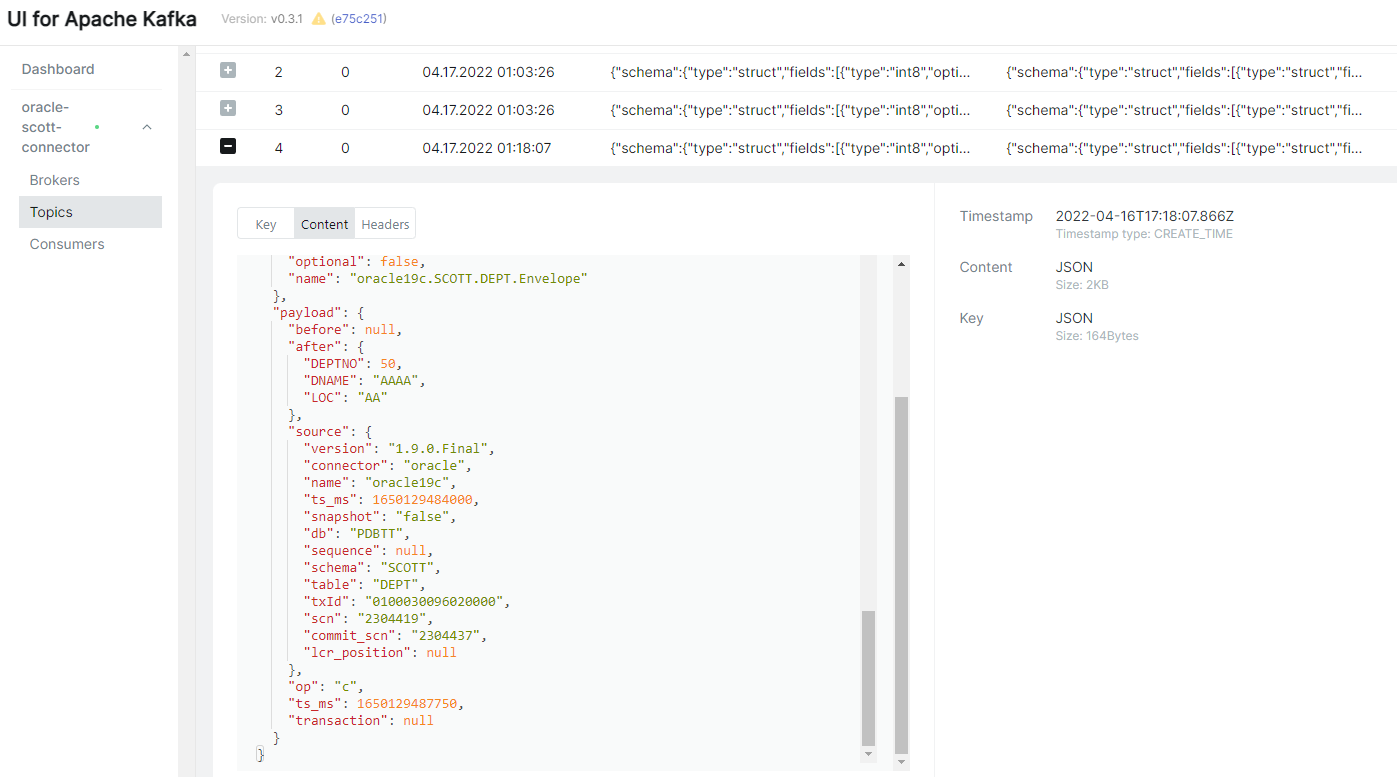

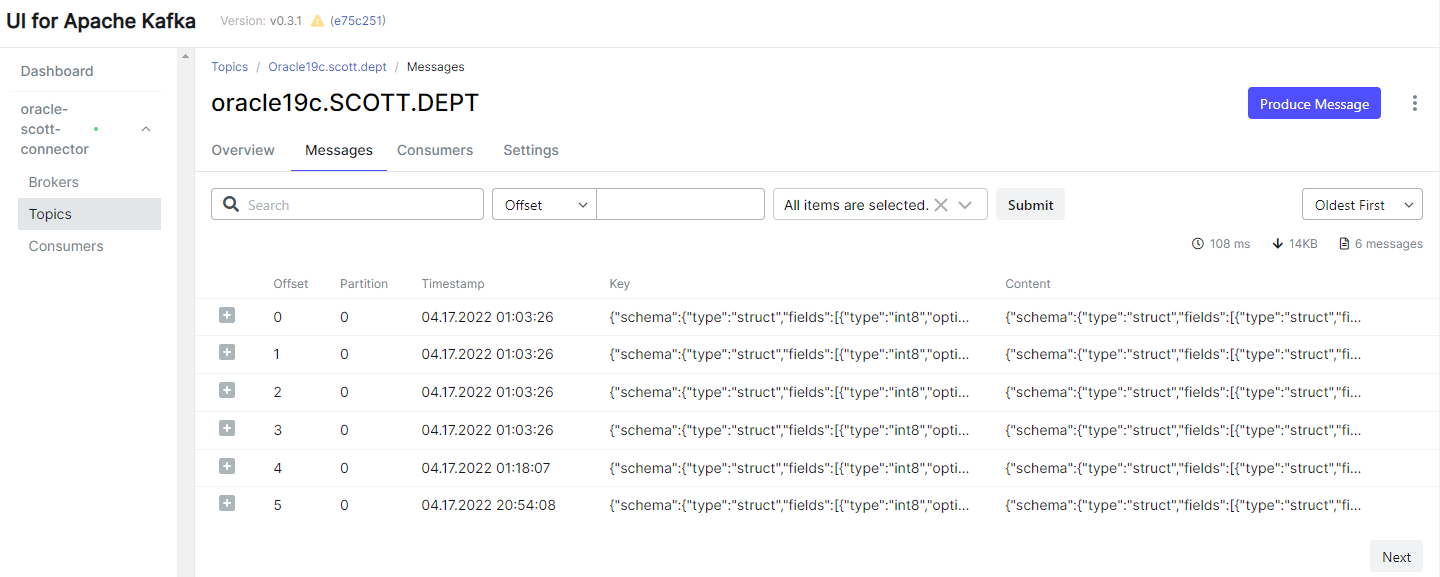

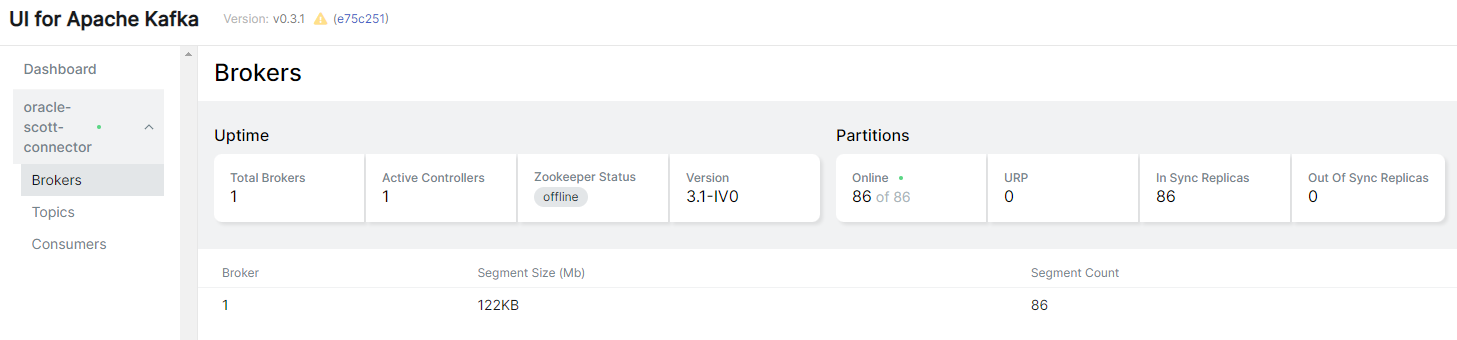

使用 kafka-ui 查看 kafka 里的消息

kafka-ui：open-source web gui for apache kafka management：

docker run -p 8811:8080 \
 -e kafka_clusters_0_name=oracle-scott-connector \
 -e kafka_clusters_0_bootstrapservers=192.168.0.40:9092 \
 -d provectuslabs/kafka-ui:latest

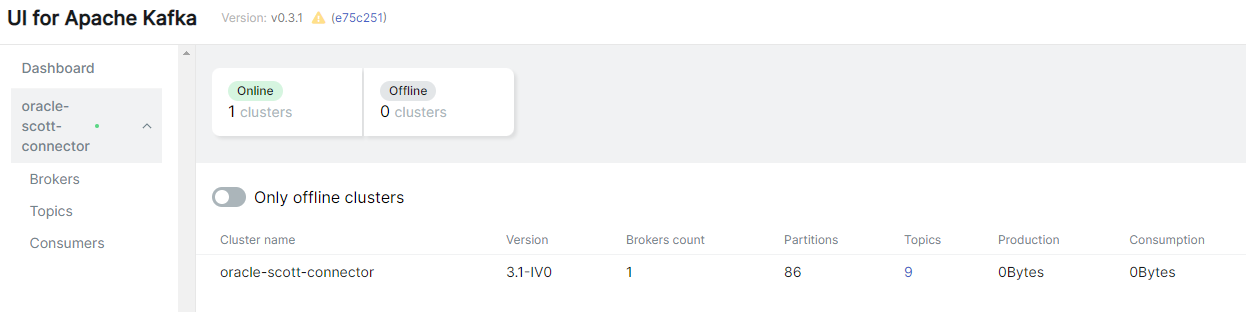

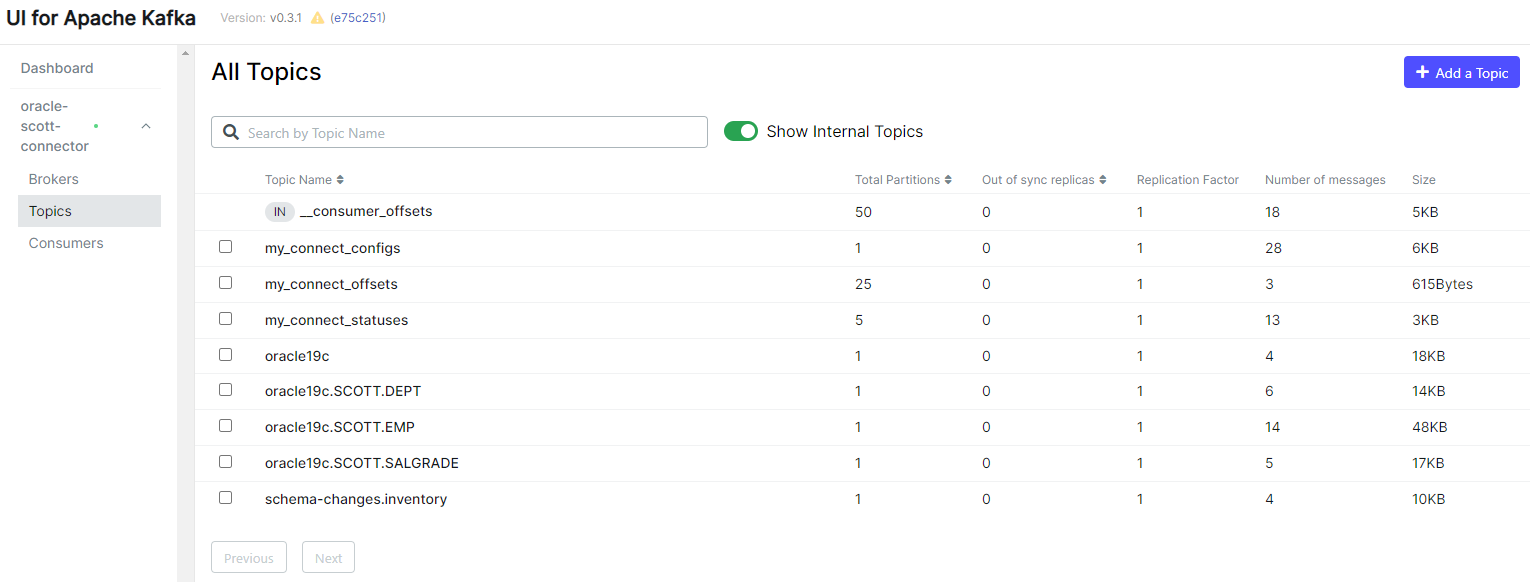

网页登录：http://192.168.0.40:8811/
