参考文档

背景

debezium 连接器运行在 kafka connect 框架中，通过生成变更事件记录写入到kafka主题(topic)来捕获和记录数据库中的每个行级更改，在 debezium 连接器将变更事件记录写入到kafka主题(topic)之前，需要将捕获的记录进行转换，转换成 kafka 可以存储的形式，kafka connect 提供了一个 json 转换器，可将记录的 keys 和 values 序列化为 json 格式，但是 json 转换器默认是包含记录的消息 schema，这使得每条记录都非常冗长。

  • key
{
	"schema": {
		"type": "struct",
		"fields": [
			{
				"type": "int8",
				"optional": false,
				"field": "deptno"
			}
		],
		"optional": false,
		"name": "ora19c.scott.dept.key"
	},
	"payload": {
		"deptno": 10
	}
}
  • values
{
	"schema": {
		"type": "struct",
		"fields": [
			{
				"type": "struct",
				"fields": [
					{
						"type": "int8",
						"optional": false,
						"field": "deptno"
					},
					{
						"type": "string",
						"optional": true,
						"field": "dname"
					},
					{
						"type": "string",
						"optional": true,
						"field": "loc"
					}
				],
				"optional": true,
				"name": "ora19c.scott.dept.value",
				"field": "before"
			},
			{
				"type": "struct",
				"fields": [
					{
						"type": "int8",
						"optional": false,
						"field": "deptno"
					},
					{
						"type": "string",
						"optional": true,
						"field": "dname"
					},
					{
						"type": "string",
						"optional": true,
						"field": "loc"
					}
				],
				"optional": true,
				"name": "ora19c.scott.dept.value",
				"field": "after"
			},
			{
				"type": "struct",
				"fields": [
					{
						"type": "string",
						"optional": false,
						"field": "version"
					},
					{
						"type": "string",
						"optional": false,
						"field": "connector"
					},
					{
						"type": "string",
						"optional": false,
						"field": "name"
					},
					{
						"type": "int64",
						"optional": false,
						"field": "ts_ms"
					},
					{
						"type": "string",
						"optional": true,
						"name": "io.debezium.data.enum",
						"version": 1,
						"parameters": {
							"allowed": "true,last,false,incremental"
						},
						"default": "false",
						"field": "snapshot"
					},
					{
						"type": "string",
						"optional": false,
						"field": "db"
					},
					{
						"type": "string",
						"optional": true,
						"field": "sequence"
					},
					{
						"type": "string",
						"optional": false,
						"field": "schema"
					},
					{
						"type": "string",
						"optional": false,
						"field": "table"
					},
					{
						"type": "string",
						"optional": true,
						"field": "txid"
					},
					{
						"type": "string",
						"optional": true,
						"field": "scn"
					},
					{
						"type": "string",
						"optional": true,
						"field": "commit_scn"
					},
					{
						"type": "string",
						"optional": true,
						"field": "lcr_position"
					}
				],
				"optional": false,
				"name": "io.debezium.connector.oracle.source",
				"field": "source"
			},
			{
				"type": "string",
				"optional": false,
				"field": "op"
			},
			{
				"type": "int64",
				"optional": true,
				"field": "ts_ms"
			},
			{
				"type": "struct",
				"fields": [
					{
						"type": "string",
						"optional": false,
						"field": "id"
					},
					{
						"type": "int64",
						"optional": false,
						"field": "total_order"
					},
					{
						"type": "int64",
						"optional": false,
						"field": "data_collection_order"
					}
				],
				"optional": true,
				"field": "transaction"
			}
		],
		"optional": false,
		"name": "ora19c.scott.dept.envelope"
	},
	"payload": {
		"before": null,
		"after": {
			"deptno": 10,
			"dname": "accounting",
			"loc": "new york"
		},
		"source": {
			"version": "1.9.0.final",
			"connector": "oracle",
			"name": "ora19c",
			"ts_ms": 1650415436277,
			"snapshot": "true",
			"db": "pdbtt",
			"sequence": null,
			"schema": "scott",
			"table": "dept",
			"txid": null,
			"scn": "6853525",
			"commit_scn": null,
			"lcr_position": null
		},
		"op": "r",
		"ts_ms": 1650415436280,
		"transaction": null
	}
}

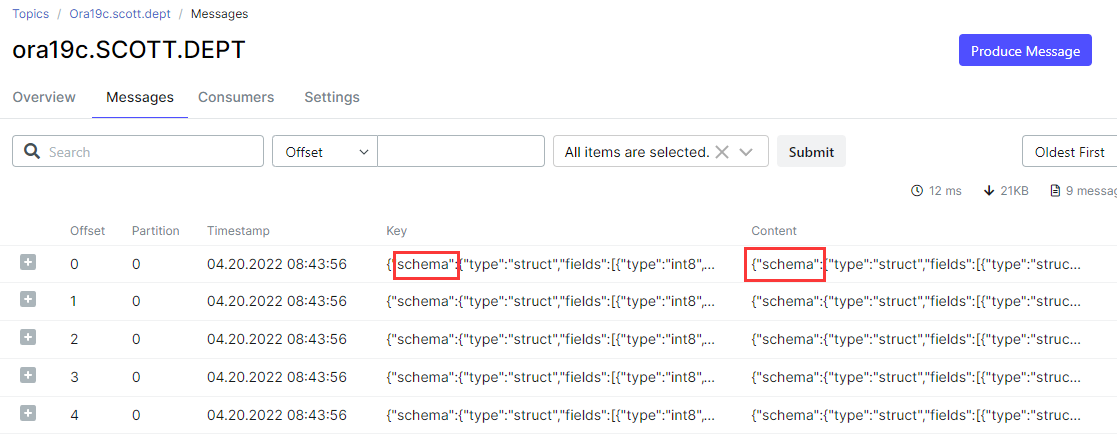

以上是一条记录在kafka中的存储形式，keys 和 values 包含了消息 schema，使得每条消息特别冗长，这样会导致存储压力和网络传输压力，关于消息 schema 有什么作用暂时还不清楚，但是 debezium 还是让考虑关闭记录 schema 的属性，涉及到以下两个参数：

key.converter.schemas.enable
value.converter.schemas.enable

配置参数关闭 message schema 的属性

  • 在 kafka connect 连接器的配置文件(config/connect-distributed.properties)中配置参数值：
# 因 kafka connect 是一个 docker 容器，容器内也没 vi 编辑器，所有可以考虑在 docker 宿主机上对容器内的文件进行编辑
# 查看容器内的目录在 docker 宿主机上的挂载位置
[root@docker ~]# docker inspect connect |grep "/kafka/config" -b1
                "source": "/var/lib/docker/volumes/11bb601aeeb27d02bfa1d238bbbf157dfb5b813a42a1af33b1a79ec25df0ad75/_data",
                "destination": "/kafka/config",
# 编辑 connect-distributed.properties 文件，修改参数
[root@docker ~]# cd /var/lib/docker/volumes/11bb601aeeb27d02bfa1d238bbbf157dfb5b813a42a1af33b1a79ec25df0ad75/_data
[root@docker _data]# ll
total 68
-rw-r--r--. 1 1001 1001  906 apr 19 14:51 connect-console-sink.properties
-rw-r--r--. 1 1001 1001  909 apr 19 14:51 connect-console-source.properties
-rw-r--r--. 1 1001 1001 5608 apr 19 14:52 connect-distributed.properties
-rw-r--r--. 1 1001 1001  883 apr 19 14:51 connect-file-sink.properties
-rw-r--r--. 1 1001 1001  881 apr 19 14:51 connect-file-source.properties
-rw-r--r--. 1 1001 1001 2103 apr 19 14:51 connect-log4j.properties
-rw-r--r--. 1 1001 1001 2540 apr 19 14:51 connect-mirror-maker.properties
-rw-r--r--. 1 1001 1001 2262 apr 19 14:51 connect-standalone.properties
-rw-r--r--. 1 1001 1001 1221 apr 19 14:51 consumer.properties
drwxr-xr-x. 2 1001 1001  102 apr 19 14:51 kraft
-rw-rw-r--. 1 1001 1001  850 apr 19 10:03 log4j.properties
-rw-r--r--. 1 1001 1001 1925 apr 19 14:51 producer.properties
-rw-r--r--. 1 1001 1001 6849 apr 19 14:51 server.properties
-rw-r--r--. 1 1001 1001 1032 apr 19 14:51 tools-log4j.properties
-rw-r--r--. 1 1001 1001 1169 apr 19 14:51 trogdor.conf
-rw-r--r--. 1 1001 1001 1205 apr 19 14:51 zookeeper.properties
[root@docker _data]# vi connect-distributed.properties
key.converter.schemas.enable=false
value.converter.schemas.enable=false
  • 重启连接器使参数生效
# docker restart connect

新建一个连接器，观察效果

新建连接器时需要注意：参数 name、database.server.name、database.history.kafka.topic 建议保持唯一。

[root@docker ~]# cat oracle-scott-connector.json
{
    "name": "oracle-scott-connector2",
    "config": {
        "connector.class" : "io.debezium.connector.oracle.oracleconnector",
        "database.hostname" : "172.17.0.2",
        "database.port" : "1521",
        "database.user" : "c##dbzuser",
        "database.password" : "dbz",
        "database.dbname" : "orcl",
        "database.pdb.name" : "pdbtt",
        "database.server.name" : "ora1",
        "tasks.max" : "1",
        "schema.include.list": "scott",
        "database.history.kafka.bootstrap.servers" : "192.168.0.40:9092",
        "database.history.kafka.topic": "schema-changes.inventory1"
    }
}
[root@docker ~]# curl -i -x post -h "accept:application/json" -h "content-type:application/json" 192.168.0.40:8083/connectors/ -d @oracle-scott-connector.json

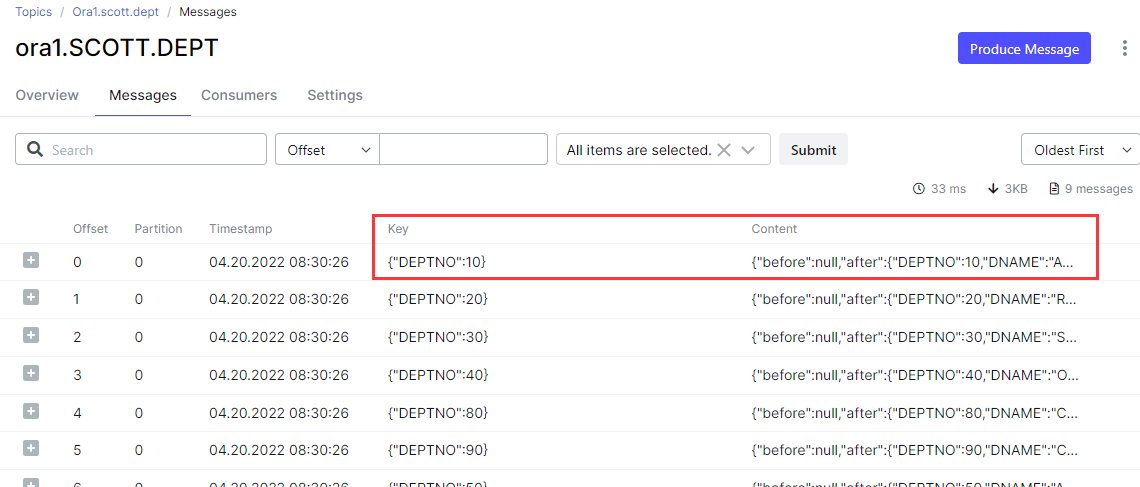

  • key
{
	"deptno": 10
}
  • values
{
	"before": null,
	"after": {
		"deptno": 10,
		"dname": "accounting",
		"loc": "new york"
	},
	"source": {
		"version": "1.9.0.final",
		"connector": "oracle",
		"name": "ora1",
		"ts_ms": 1650414625783,
		"snapshot": "true",
		"db": "pdbtt",
		"sequence": null,
		"schema": "scott",
		"table": "dept",
		"txid": null,
		"scn": "6732490",
		"commit_scn": null,
		"lcr_position": null
	},
	"op": "r",
	"ts_ms": 1650414625799,
	"transaction": null
}

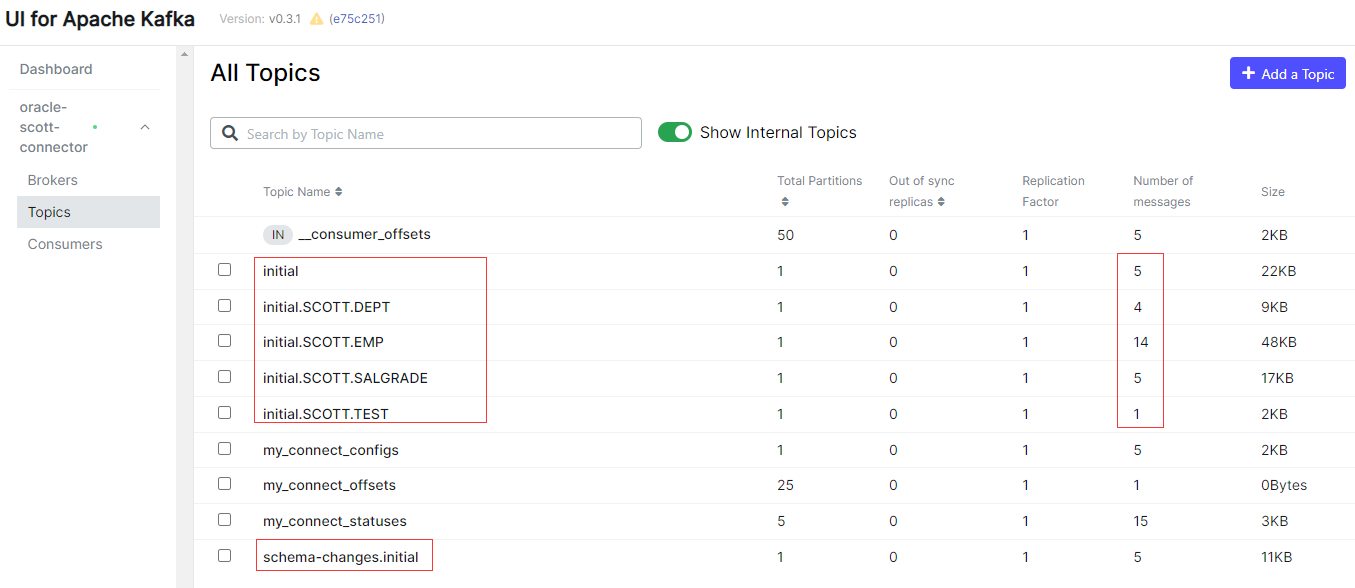

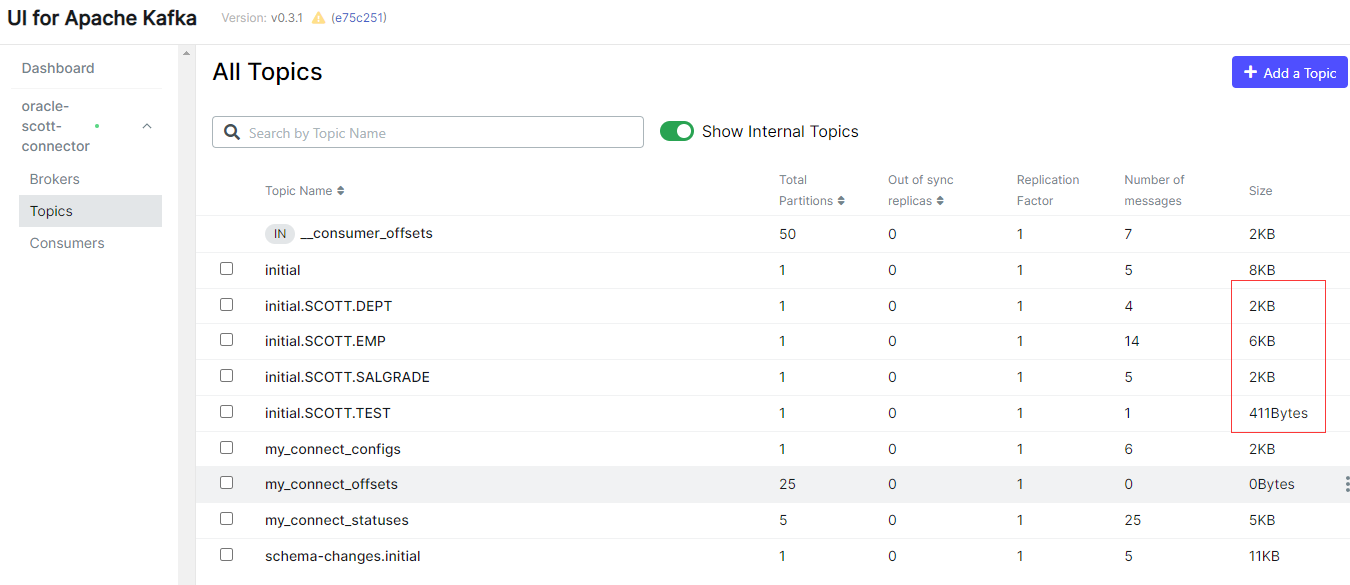

  • 相同数据，在 kafka 中存储大小的对比，第一张图是没有关闭 schema ，第二张图是关闭了 schema
