实验环境

• debezium 版本 1.9 (2022-04-05)
• debezium tested versions

• postgresql 版本是单机的 14.2
• 本测试参考文档：
• 基于 debezium 的变更数据捕获的架构:


启动 zookeeper

# 后台运行
docker run -d --name zookeeper -p 2181:2181 -p 2888:2888 -p 3888:3888 quay.io/debezium/zookeeper
# 实时查看 zookeeper 的日志信息
docker logs -f -t --tail 10 zookeeper

启动 kafka

# 后台运行
docker run -d --name kafka -p 9092:9092 --link zookeeper:zookeeper quay.io/debezium/kafka
# 实时查看 kafka 的日志信息
docker logs -f -t --tail 10 kafka

启动 postgresql 14.2，使用 debezium 提供的示例镜像，里面自带了一个测试的 schemas inventory

# 创建一个数据持久化目录
mkdir -p /docker_data/postgres
chmod -r a rwx /docker_data/postgres/
# 后台运行 14.2 版本的 postgresql 数据库
docker run -d --name postgres \
 -p 5432:5432 \
 -e postgres_password=postgres \
 -e pgdata=/var/lib/pgdata \
 -v /docker_data/postgres:/var/lib/pgdata \
 quay.io/debezium/example-postgres
# 运行 psql 容器
[root@docker ~]# alias psql='docker run -it --rm --name psql debezium/example-postgres psql -h 192.168.0.40 -u postgres -p 5432'
[root@docker ~]# psql
password for user postgres:
psql (14.2 (debian 14.2-1.pgdg110 1))
type "help" for help.
postgres=# select version();
                                                           version
-----------------------------------------------------------------------------------------------------------------------------
 postgresql 14.2 (debian 14.2-1.pgdg110 1) on x86_64-pc-linux-gnu, compiled by gcc (debian 10.2.1-6) 10.2.1 20210110, 64-bit
(1 row)
postgres=# \l
                                 list of databases
   name    |  owner   | encoding |  collate   |   ctype    |   access privileges
----------- ---------- ---------- ------------ ------------ -----------------------
 postgres  | postgres | utf8     | en_us.utf8 | en_us.utf8 |
 template0 | postgres | utf8     | en_us.utf8 | en_us.utf8 | =c/postgres
           |          |          |            |            | postgres=ctc/postgres
 template1 | postgres | utf8     | en_us.utf8 | en_us.utf8 | =c/postgres
           |          |          |            |            | postgres=ctc/postgres
(3 rows)
postgres=# \dn
   list of schemas
   name    |  owner
----------- ----------
 inventory | postgres
 public    | postgres
(2 rows)

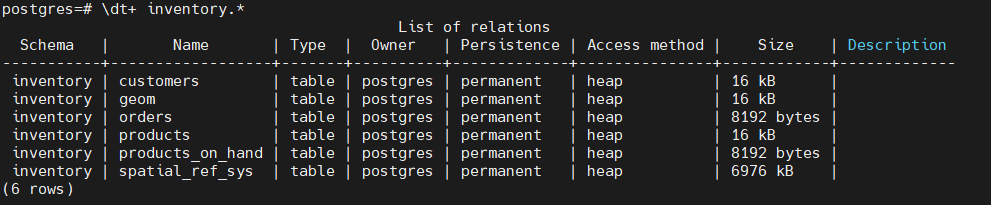

postgres=# \dt inventory.*
                list of relations
  schema   |       name       | type  |  owner
----------- ------------------ ------- ----------
 inventory | customers        | table | postgres
 inventory | geom             | table | postgres
 inventory | orders           | table | postgres
 inventory | products         | table | postgres
 inventory | products_on_hand | table | postgres
 inventory | spatial_ref_sys  | table | postgres
(6 rows)
postgres=# select schemaname,relname,n_live_tup from pg_stat_user_tables;
 schemaname |     relname      | n_live_tup
------------ ------------------ ------------
 inventory  | customers        |          4
 inventory  | products_on_hand |          9
 inventory  | orders           |          4
 inventory  | products         |          9
 inventory  | spatial_ref_sys  |       8500
 inventory  | geom             |          3
(6 rows)

看看这个 debezium 提供的 postgresql 镜像中都做了哪些配置

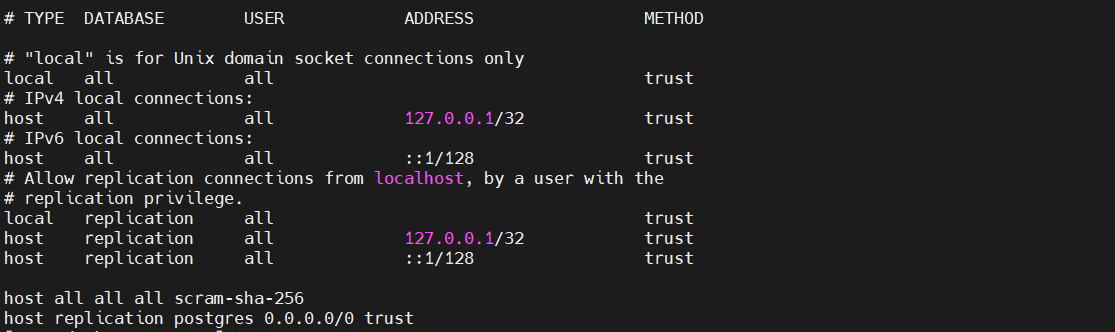

• pg_hba.conf

[root@docker ~]# cd /docker_data/postgres/
[root@docker postgres]# cat pg_hba.conf
host all all all scram-sha-256
host replication postgres 0.0.0.0/0 trust

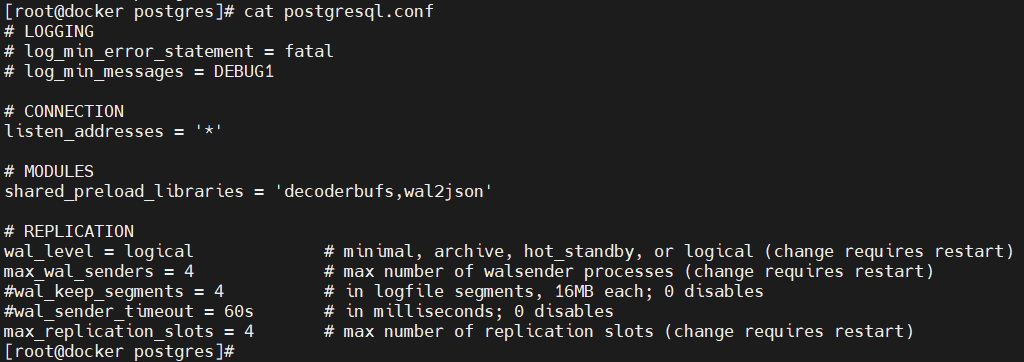

• postgresql.conf

listen_addresses = '*'
shared_preload_libraries = 'decoderbufs,wal2json'
wal_level = logical
max_wal_senders = 4
#wal_keep_segments = 4
#wal_sender_timeout = 60s
max_replication_slots = 4

启动 kafka connect

# 后台运行
docker run -d --name connect \
-p 8083:8083 \
-e group_id=1 \
-e config_storage_topic=my_connect_configs \
-e offset_storage_topic=my_connect_offsets \
-e status_storage_topic=my_connect_statuses \
--link zookeeper:zookeeper \
--link kafka:kafka \
--link postgres:postgres \
quay.io/debezium/connect
# 实时查看 kafka connect 的日志信息
docker logs -f -t --tail 10 connect

debezium postgresql connector

• 准备 debezium postgresql connector 配置文件
  将配置文件创建在 docker 宿主机上即可，connect 容器开放了 rest api 来管理 debezium 的连接器

[root@docker ~]# vi pgsql-inventory-connector.json
{
    "name": "pgsql-inventory-connector",
    "config": {
	    "connector.class": "io.debezium.connector.postgresql.postgresconnector",
	    "database.hostname": "postgres",
	    "database.port": "5432",
	    "database.user": "postgres",
	    "database.password": "postgres",
	    "database.dbname": "postgres",
	    "database.server.name": "pgsql",
	    "slot.name": "inventory_slot",
	    "table.include.list": "inventory.orders,inventory.products",
	    "publication.name": "dbz_inventory_connector",
	    "publication.autocreate.mode": "filtered",
	    "plugin.name": "pgoutput"
    }
}

• 向 kafka 连接器注册 debezium postgresql connector

[root@docker ~]# curl -i -x post -h "accept:application/json" -h "content-type:application/json" 192.168.0.40:8083/connectors/ -d @pgsql-inventory-connector.json
http/1.1 201 created
date: fri, 22 apr 2022 00:08:47 gmt
location: http://192.168.0.40:8083/connectors/pgsql-inventory-connector
content-type: application/json
content-length: 551
server: jetty(9.4.43.v20210629)
{"name":"pgsql-inventory-connector","config":{"connector.class":"io.debezium.connector.postgresql.postgresconnector","database.hostname":"postgres","database.port":"5432","database.user":"postgres","database.password":"postgres","database.dbname":"postgres","database.server.name":"pgsql","slot.name":"inventory_slot","table.include.list":"inventory.orders,inventory.products","publication.name":"dbz_inventory_connector","publication.autocreate.mode":"filtered","plugin.name":"pgoutput","name":"pgsql-inventory-connector"},"tasks":[],"type":"source"}

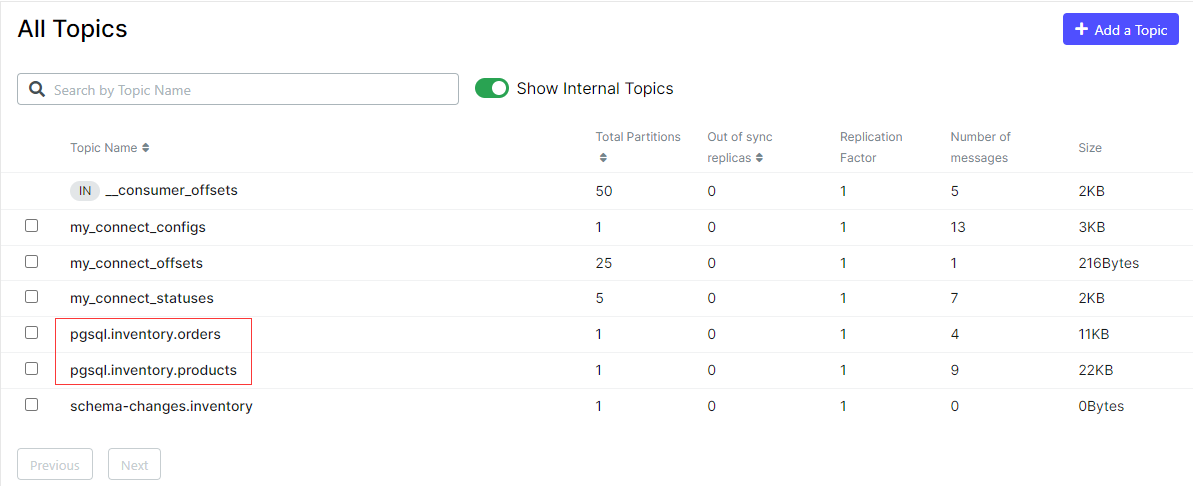

使用 kafka-ui 核对捕获到的数据

kafka-ui：open-source web gui for apache kafka management：

docker run -p 8811:8080 \
 -e kafka_clusters_0_name=oracle-scott-connector \
 -e kafka_clusters_0_bootstrapservers=192.168.0.40:9092 \
 -d provectuslabs/kafka-ui:latest

网页登录：http://192.168.0.40:8811/

模拟业务

• insert

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
(4 rows)
postgres=# insert into inventory.orders values (11001,now(),1003,1,102);
insert 0 1
postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        1 |        102
(5 rows)

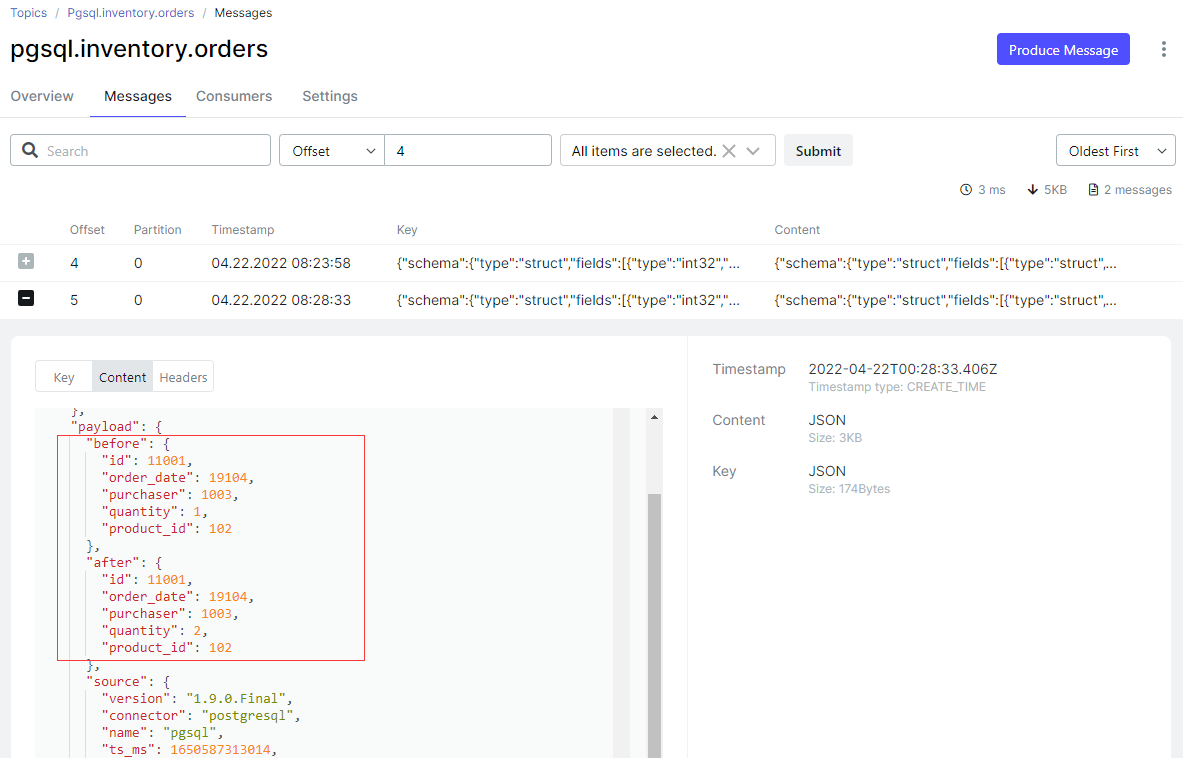

• update

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        1 |        102
(5 rows)
postgres=# update inventory.orders set quantity=2 where id=11001;
update 1
postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        2 |        102
(5 rows)

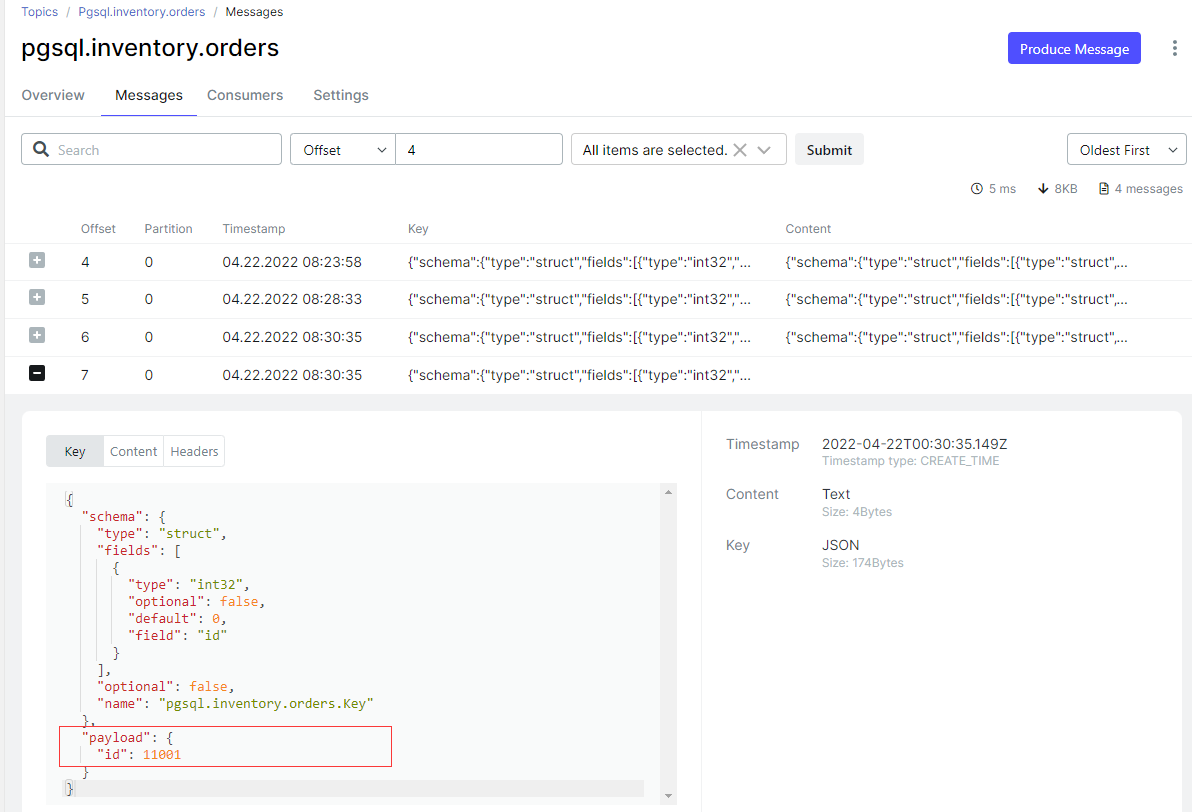

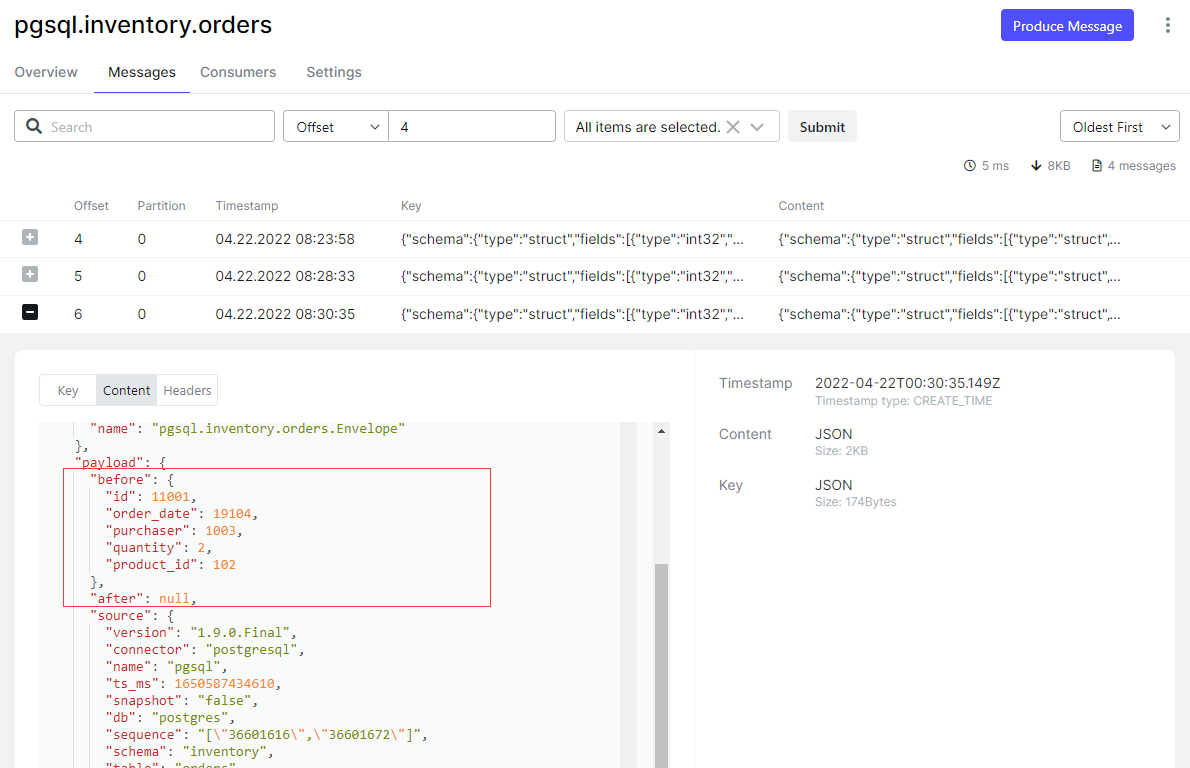

• delete

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        2 |        102
(5 rows)
postgres=# delete from inventory.orders where id = 11001;
delete 1
postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
(4 rows)

一个问题，“schema.include.list” 捕获的表不全

当连接器属性配置 “schema.include.list”: “inventory”，正常来说会捕获 schema inventory 里面的所有表，但是测试发现少捕获一张 spatial_ref_sys 表，没整明白啥情况。

{
    "name": "snapshot-mode-initial",
    "config": {
        "connector.class" : "io.debezium.connector.postgresql.postgresconnector",
        "database.hostname" : "postgres",
        "database.port" : "5432",
        "database.user" : "postgres",
        "database.password" : "postgres",
        "database.dbname" : "postgres",
        "database.server.name" : "initial",
        "slot.name": "initial_slot",
        "schema.include.list": "inventory",
        "snapshot.mode": "initial",
        "plugin.name": "pgoutput",
        "publication.name": "dbz_inventory_connector",
        "publication.autocreate.mode": "filtered"
    }
}

监控 postgresql 的复制槽

postgres=# select * from pg_replication_slots;
