实验环境

kafka 中的数据来自于捕获的 postgresql 14.2 的变更数据，参考文章：
准备 kafka connect jdbc connector(连接器)，本实验使用的版本是 10.4.1，下载地址：
准备 oracle jdbc 驱动，kafka connect jdbc connector 里面包含了 oracle jdbc 驱动(ojdbc8-19.7.0.0.jar)，如果想使用新版的驱动，也可以自行下载，下载地址：

启动 oracle 19c 数据库，创建一个测试用户

# sqlplus sys/oracle@192.168.0.40:1521/pdbtt as sysdba
sql> create user inventory identified by inventory;
sql> grant connect,resource,create view to inventory;
sql> grant unlimited tablespace to inventory;

配置 jdbc sink connector

上传驱动和jdbc连接器

将下载的 oracle jdbc 驱动和 kafka connect jdbc connector(连接器) 上传服务器并复制到 connect 容器中

[root@docker ~]# ls -lrt
-rw-r--r--.  1 root root  4458107 apr 17 22:12 ojdbc8-19.14.0.0.jar
-rw-r--r--.  1 root root 20208429 apr 17 22:12 confluentinc-kafka-connect-jdbc-10.4.1.zip
# 上传 oracle jdbc 驱动，如果使用 kafka connect jdbc connector 自带的驱动可以忽略此处
docker cp ojdbc8-19.14.0.0.jar connect:/kafka/libs
# 上传 kafka connect jdbc connector
unzip confluentinc-kafka-connect-jdbc-10.4.1.zip
chown -r 1001:1001 confluentinc-kafka-connect-jdbc-10.4.1
docker cp confluentinc-kafka-connect-jdbc-10.4.1 connect:/kafka/connect
# 重启 kafka connect 连接器
docker restart connect

查看现有连接器信息

安装 jq，用于格式化 json 格式

yum install -y wget
wget https://mirrors.aliyun.com/epel/epel-release-latest-7.noarch.rpm
rpm -ivh epel-release-latest-7.noarch.rpm
yum install -y jq

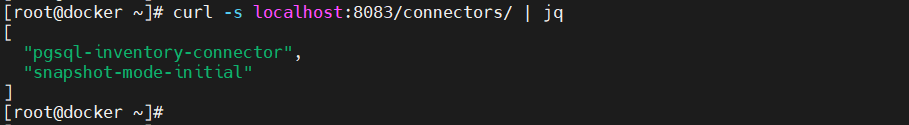

查看当前存在哪些连接器

curl -s localhost:8083/connectors/ | jq

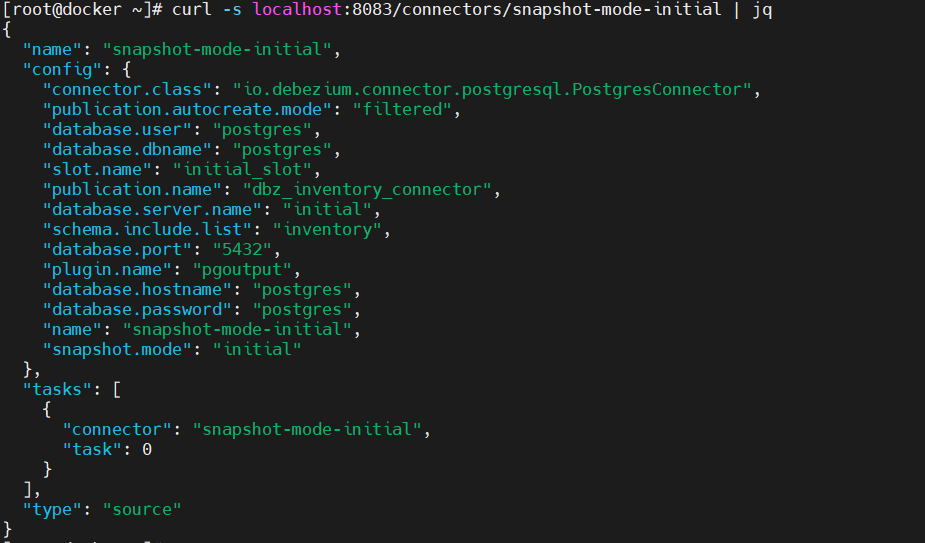

查看连接器的具体信息

curl -s localhost:8083/connectors/snapshot-mode-initial | jq

配置连接目标端 oracle 19c pdb 的连接器

查看下目标端 oracle 容器的ip地址

[root@docker ~]# docker inspect ora19c |grep ipaddress
            "secondaryipaddresses": null,
            "ipaddress": "172.17.0.2",
                    "ipaddress": "172.17.0.2",

编辑一个 json 文件，配置连接器信息
jdbc sink connector configuration properties:

[root@docker ~]# vi oracle-jdbc-sink.json
{
    "name": "oracle-jdbc-sink",
	"config": {
        "connector.class": "io.confluent.connect.jdbc.jdbcsinkconnector",
        "connection.url": "jdbc:oracle:thin:@//172.17.0.2:1521/pdbtt",
        "connection.user": "inventory",
        "connection.password": "inventory",
        "tasks.max": "1",
        "topics": "initial.inventory.orders",
        "table.name.format": "orders",
        "dialect.name": "oracledatabasedialect",
        "transforms": "unwrap",
        "transforms.unwrap.type": "io.debezium.transforms.extractnewrecordstate",
        "transforms.unwrap.drop.tombstones": "false",
        "auto.create": "true",
        "auto.evolve": "true"
	}
}

向 kafka 连接器注册 jdbc sink connector

curl -i -x post -h "accept:application/json" -h "content-type:application/json" 192.168.0.40:8083/connectors/ -d @oracle-jdbc-sink.json

查看已注册的连机器信息

# 当前已注册的连接器
curl -s localhost:8083/connectors/ | jq
# 连接器的具体信息
curl -s localhost:8083/connectors/oracle-jdbc-sink | jq

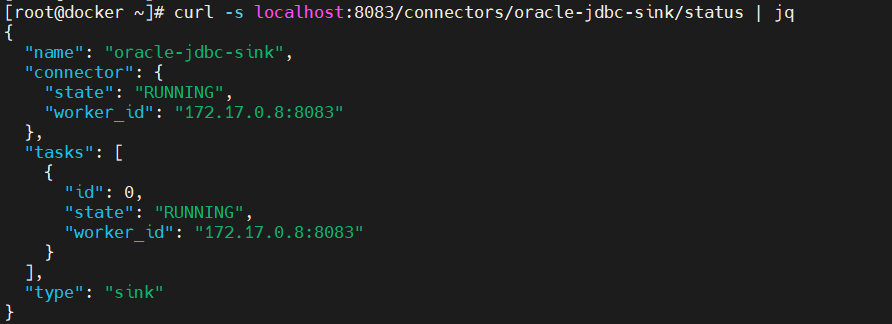

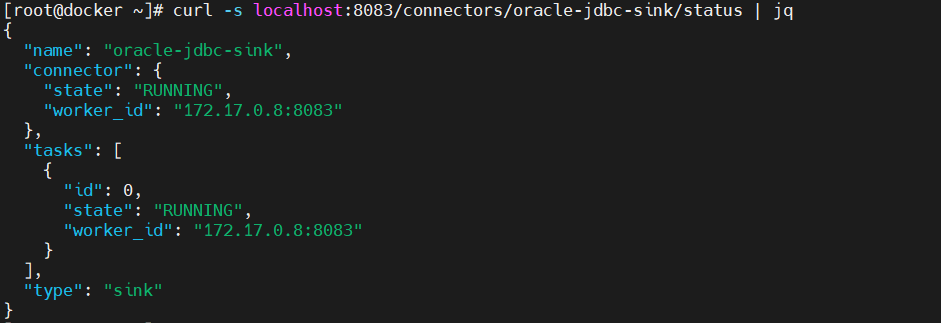

查看连接器的运行状态

curl -s localhost:8083/connectors/oracle-jdbc-sink/status | jq

遇到第一个问题，但是这个问题是由方法解决的，后面再说吧

向 kafka 连接器注册 jdbc sink connector 之后，连接器会自动连接到 oracle pdb 上建表插入数据，但是自动建的表名上带有双引号，强制将表名转为了小写。

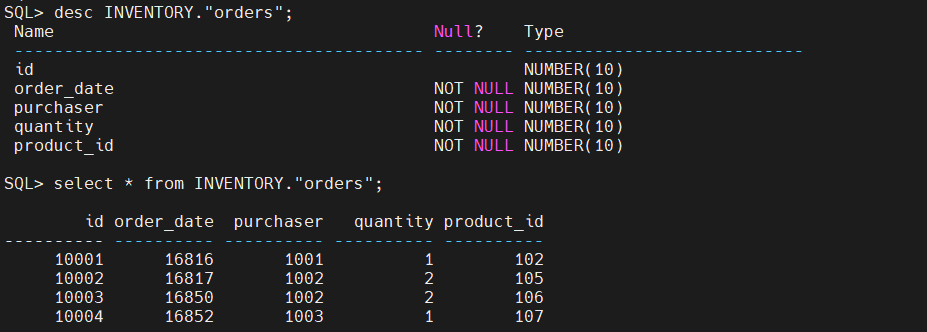

查看 oracle pdb 表中的数据

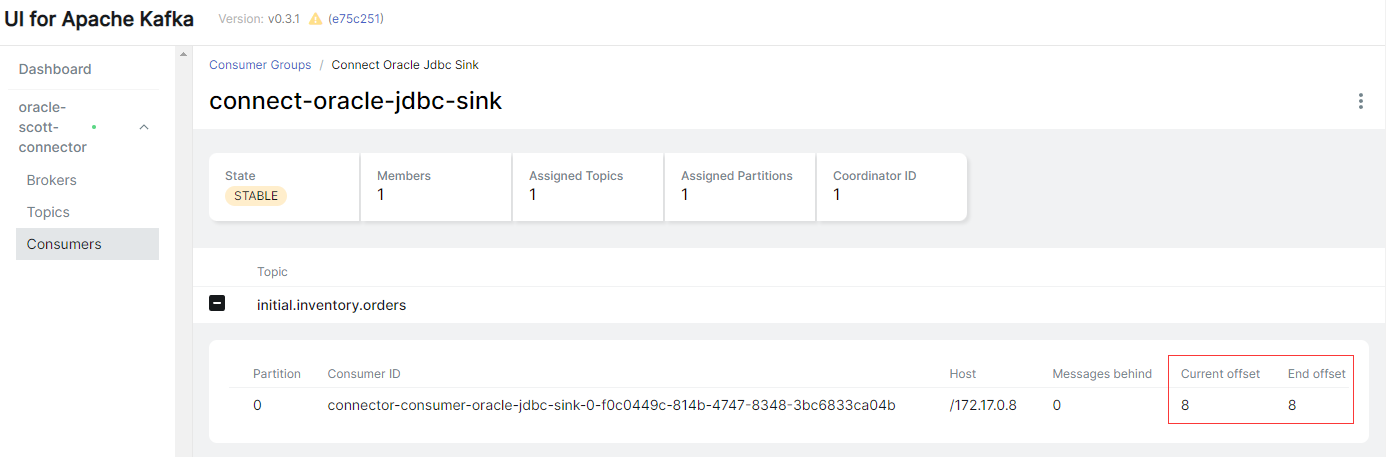

验证目标端的数据

oracle 端模拟业务

insert

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
(4 rows)
postgres=# insert into inventory.orders values (11001,now(),1003,1,102);
insert 0 1

update

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        1 |        102
(5 rows)
postgres=# update inventory.orders set quantity=2 where id=11001;
update 1

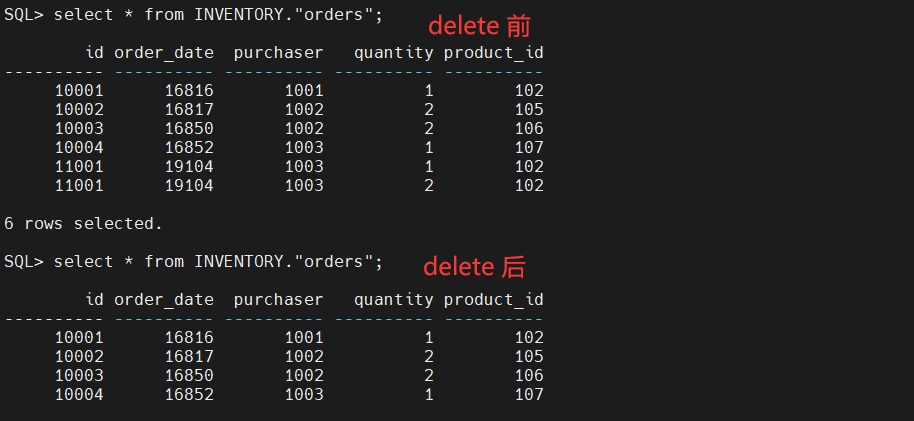

delete

postgres=# select * from inventory.orders;
  id   | order_date | purchaser | quantity | product_id
------- ------------ ----------- ---------- ------------
 10001 | 2016-01-16 |      1001 |        1 |        102
 10002 | 2016-01-17 |      1002 |        2 |        105
 10003 | 2016-02-19 |      1002 |        2 |        106
 10004 | 2016-02-21 |      1003 |        1 |        107
 11001 | 2022-04-22 |      1003 |        2 |        102
(5 rows)
postgres=# delete from inventory.orders where id = 11001;
delete 1

遇到第二个问题，不同步 delete 操作

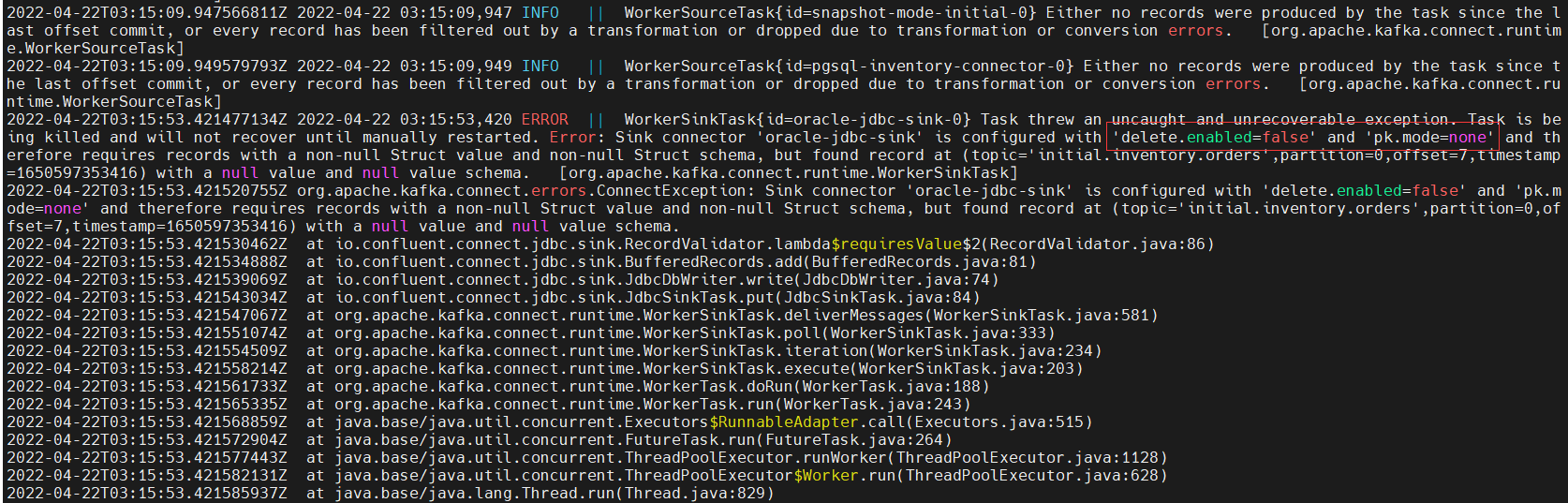

源端 postgresql 执行 delete 操作，发现目标端 oracle 没有同步执行 delete 操作，查看 kafka connect 日志发现这是有参数限制的呀

tasks 也失败了
更新 sink 连接器，配置 delete.enabled 和 pk.mode

[root@docker ~]# vi oracle-jdbc-sink_update.json
{
    "connector.class": "io.confluent.connect.jdbc.jdbcsinkconnector",
    "connection.url": "jdbc:oracle:thin:@//172.17.0.2:1521/pdbtt",
    "connection.user": "inventory",
    "connection.password": "inventory",
    "tasks.max": "1",
    "topics": "initial.inventory.orders",
    "table.name.format": "orders",
    "dialect.name": "oracledatabasedialect",
    "transforms": "unwrap",
    "transforms.unwrap.type": "io.debezium.transforms.extractnewrecordstate",
    "transforms.unwrap.drop.tombstones": "false",
    "auto.create": "true",
    "auto.evolve": "true",
    "delete.enabled": "true",
    "pk.mode": "record_key"
}
curl -i -x put -h "accept:application/json" -h "content-type:application/json" localhost:8083/connectors/oracle-jdbc-sink/config -d @oracle-jdbc-sink_update.json
