原创张玉龙 2022-04-29

3952

问题：如何同步无主键表的 delete 操作？

kafka 要想将 delete 操作同步到目标库，需要使用墓碑事件(tombstone events)，也就是 kafka 消息的 key 不为空，而 value 是空。
对于存在主键的表，kafka 消息的 key 值使用这个表的主键列。
对于不存在主键的表，kafka 消息的 key 值默认是空，这样 delete 消息就会被跳过。
对于不存在主键的表，debezium 连接器提供了配置参数 message.key.columns，使用指定列(复合列)生成 kafka 消息的 key 值，但是要保证指定列(复合列)不会出现空值的情况，就像 ogg 针对无主键表使用全列一样。

源端 postgresql

postgres=# create database test_dml;
postgres=# \c test_dml
test_dml=# create schema inventory;

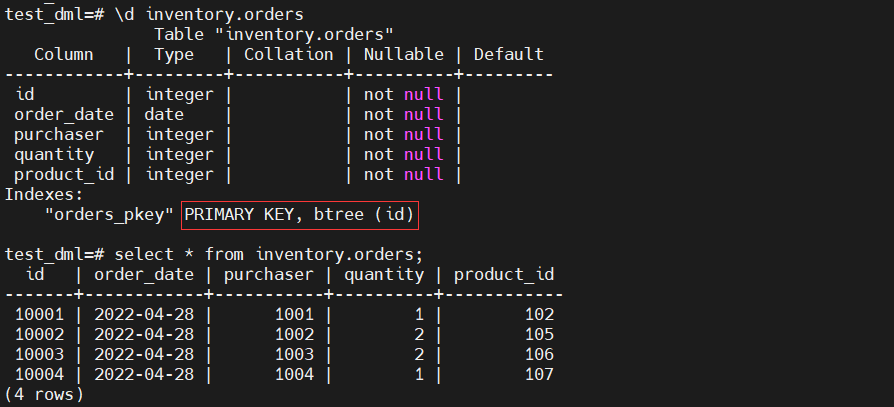

test_dml=# create table inventory.orders (
    id integer not null,
    order_date date not null,
    purchaser integer not null,
    quantity integer not null,
    product_id integer not null
);
test_dml=# alter table only inventory.orders add constraint orders_pkey primary key (id);

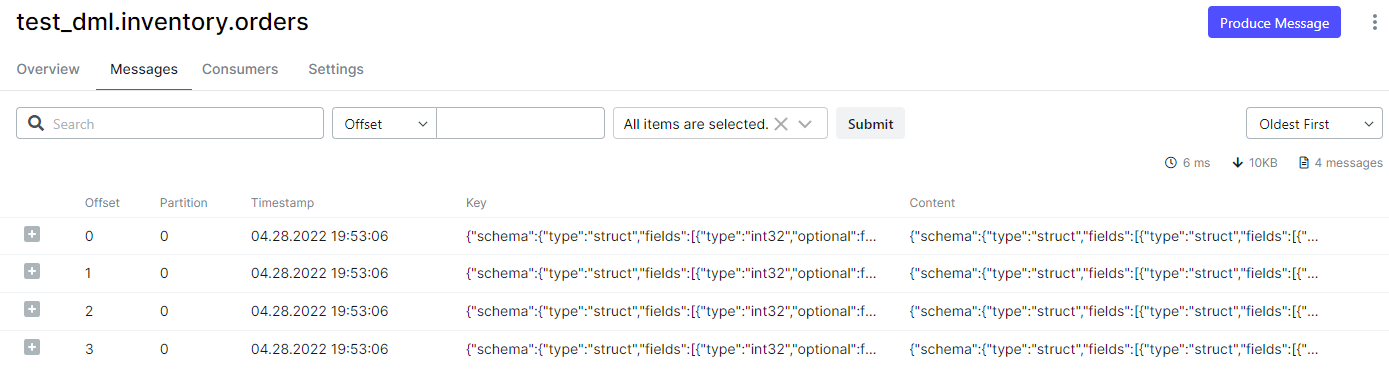

test_dml=# insert into inventory.orders values (10001,now(),1001,1,102);
insert into inventory.orders values (10002,now(),1002,2,105);
insert into inventory.orders values (10003,now(),1003,2,106);
insert into inventory.orders values (10004,now(),1004,1,107);

目标端 oracle 19c pdb

# sqlplus sys/oracle@192.168.0.40:1521/pdbtt as sysdba
sql> create user test identified by test;
sql> grant connect,resource,create view to test;
sql> grant unlimited tablespace to test;
-- 存在时间列转换的问题，以后研究

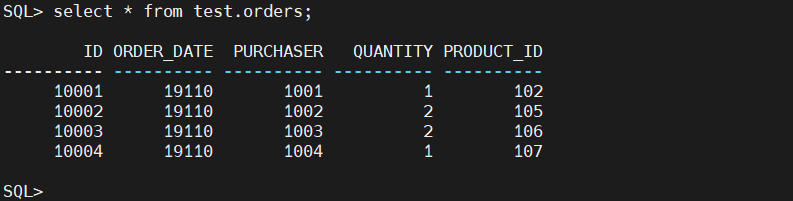

sql> create table test.orders (
    id number not null,
    order_date number not null,
    purchaser number not null,
    quantity number not null,
    product_id number not null
);
sql> alter table test.orders add constraint orders_pkey primary key(id);

# 捕获源端数据的连接器初始配置
[root@docker tutorial]# cat register-postgres-key.json
{
    "name": "inventory-connector-key",
    "config": {
        "connector.class": "io.debezium.connector.postgresql.postgresconnector",
        "tasks.max": "1",
        "database.hostname": "postgres",
        "database.port": "5432",
        "database.user": "postgres",
        "database.password": "postgres",
        "database.dbname" : "test_dml",
        "database.server.name": "test_dml",
        "snapshot.mode": "always",
        "schema.include.list": "inventory",
        "slot.name": "test_dml_slot"
    }
}
curl -s -x delete localhost:8083/connectors/inventory-connector-key
curl -i -x post -h "accept:application/json" -h  "content-type:application/json" http://localhost:8083/connectors/ -d @register-postgres-key.json
# 同步给目标端的连接器初始配置
[root@docker tutorial]# cat oracle-testdml-sink.json
{
    "name": "oracle-testdml-sink",
        "config": {
        "connector.class": "io.confluent.connect.jdbc.jdbcsinkconnector",
        "connection.url": "jdbc:oracle:thin:@//172.17.0.2:1521/pdbtt",
        "connection.user": "test",
        "connection.password": "test",
        "tasks.max": "1",
        "topics": "test_dml.inventory.orders",
        "table.name.format": "orders",
        "quote.sql.identifiers": "never",
        "transforms": "unwrap",
        "transforms.unwrap.type": "io.debezium.transforms.extractnewrecordstate",
        "transforms.unwrap.drop.tombstones": "false"
        }
}
curl -s -x delete localhost:8083/connectors/oracle-testdml-sink
curl -i -x post -h "accept:application/json" -h  "content-type:application/json" http://localhost:8083/connectors/ -d @oracle-testdml-sink.json

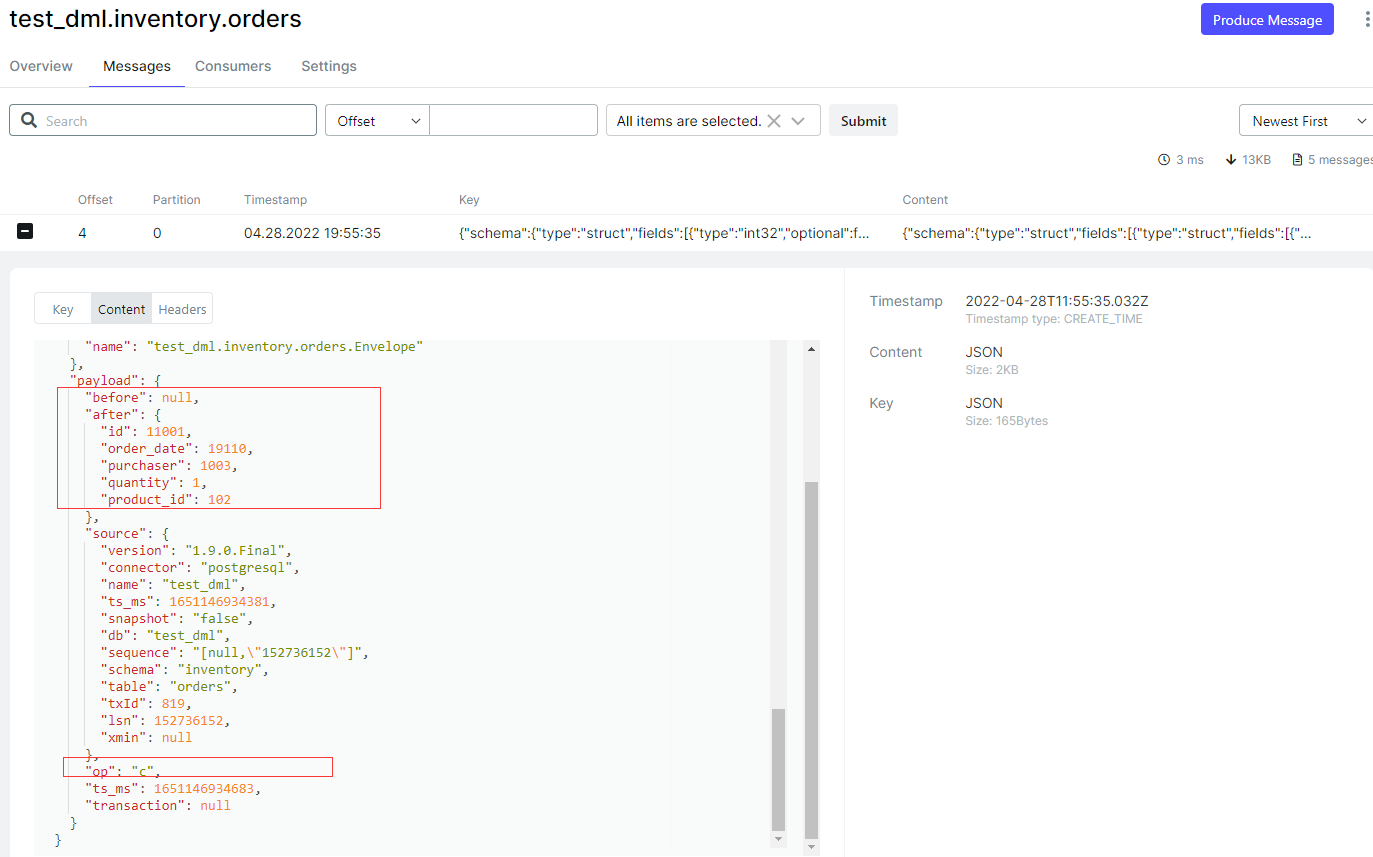

insert into inventory.orders values (11001,now(),1003,1,102);

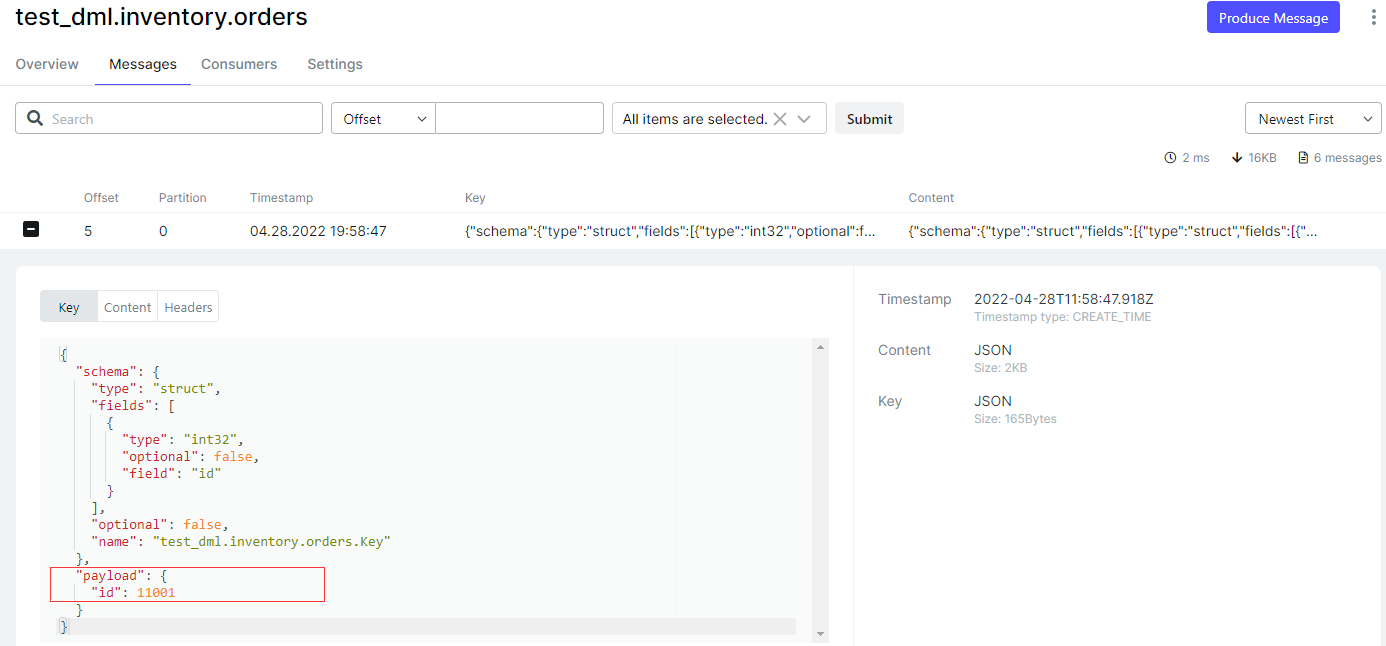

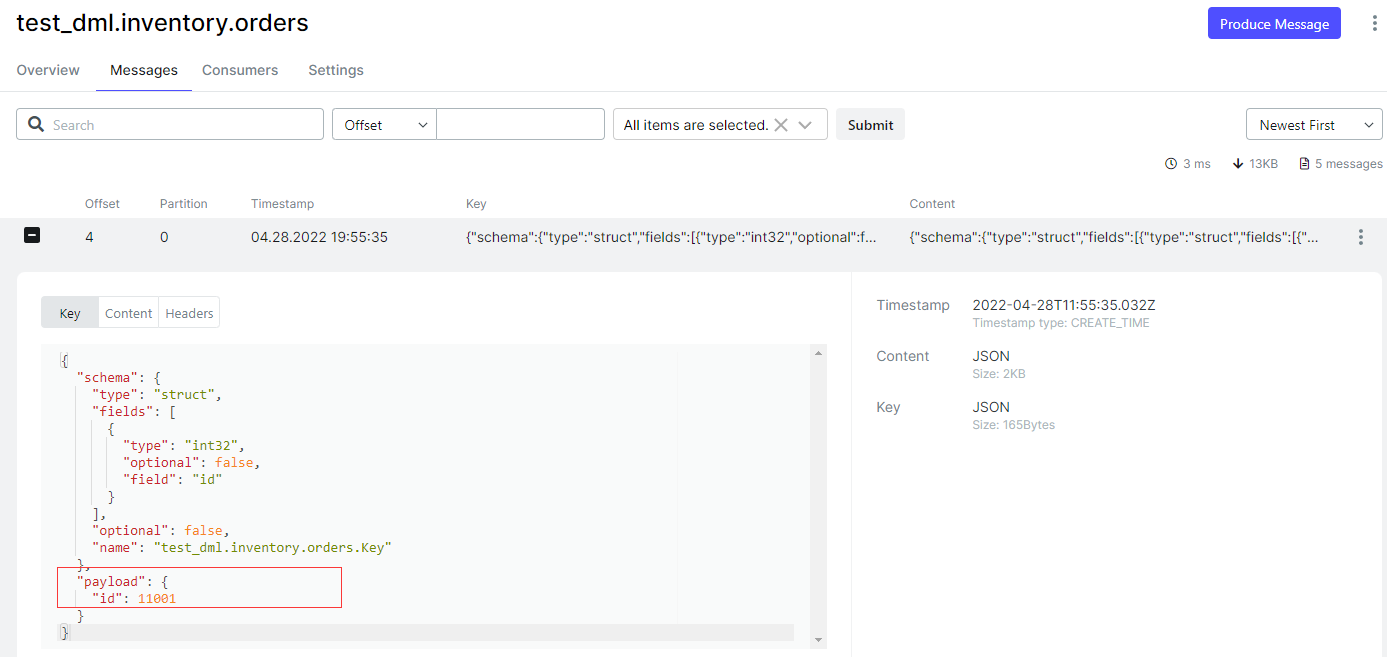

kafka 消息的 key 值默认使用这个表的主键列。

before：是这条记录的旧值，对于 insert 操作没有旧值，而 update 和 delete 操作会记录旧值，但针对源端是 postgresql 数据库的情况下，可以记录旧值的前提是被同步的表配置了 replica identity，后面有介绍。
after：是这条记录的新值，对于 delete 操作，alter 为 null。
op：是这条消息的类型：c = create、u = update、d = delete、r = read (applies to only snapshots)、t = truncate、m = message

update inventory.orders set quantity=2 where id=11001;

before 没有之前的数据，原因是没有配置表的 replica identity 属性。

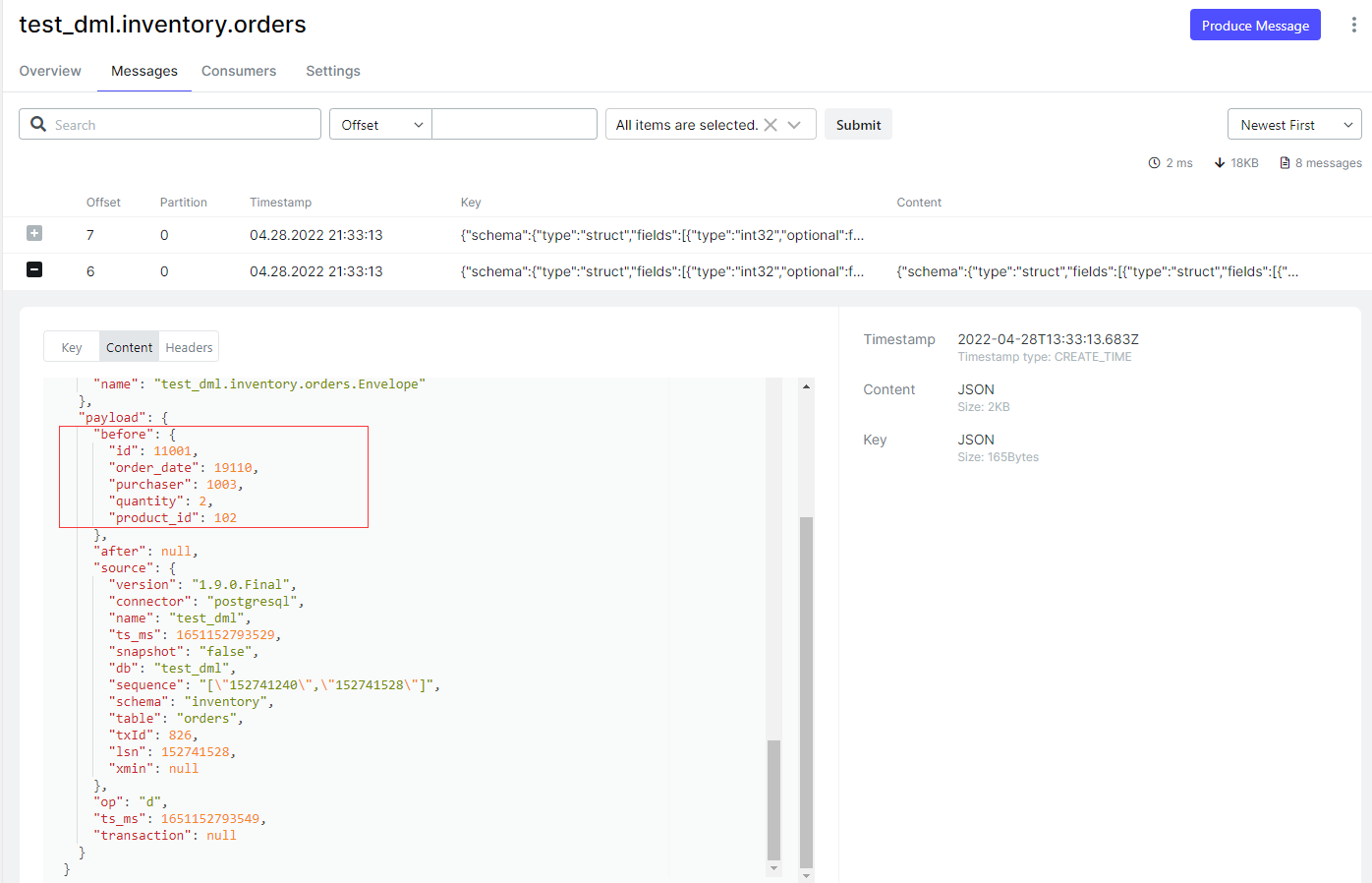

delete from inventory.orders where id = 11001;

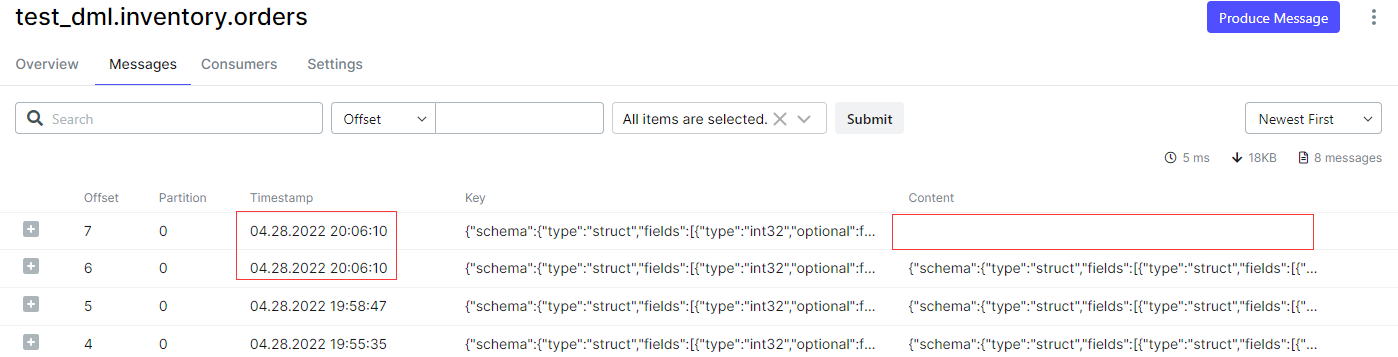

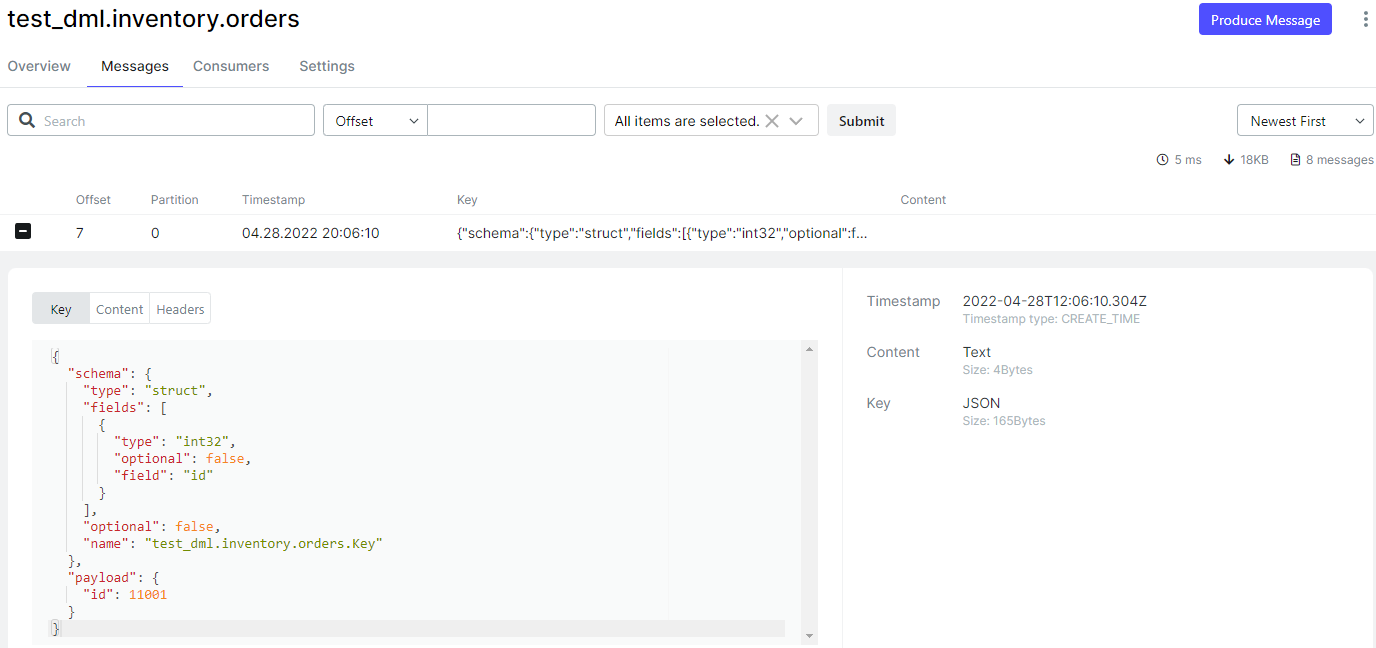

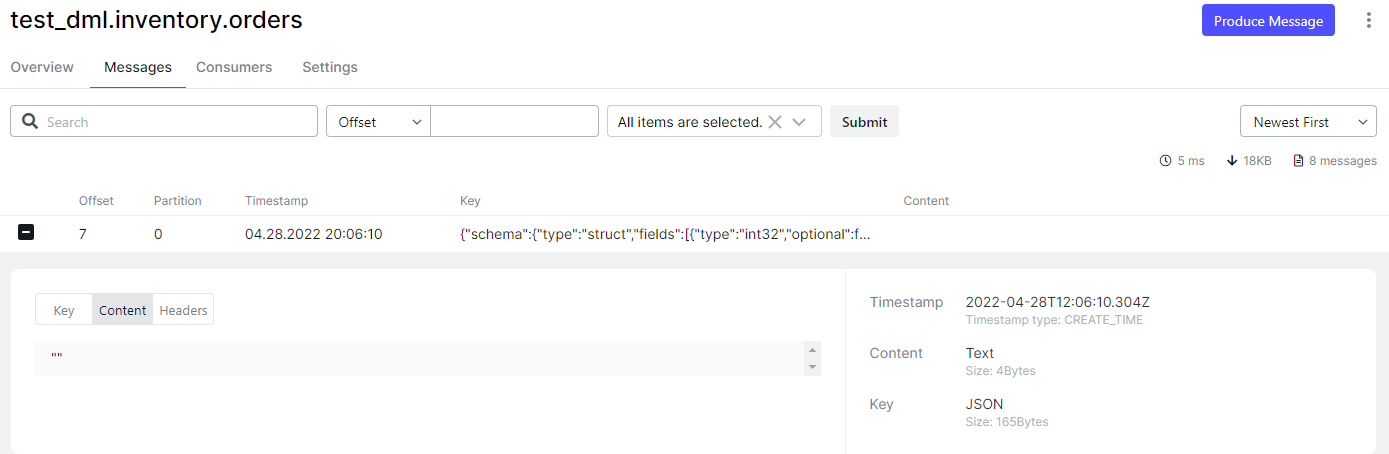

针对 delete 操作，会在 kafka 中产生两条消息事件，其中一条消息事件的 value 是 null，此消息事件就是墓碑事件(tombstone events)，用作删除目标端的记录，实现 delete 操作的同步。

before 除了主键，其他列都是0，原因是没有配置表的 replica identity 属性。

replica identity

特定于 postgresql 的表级设置，仅在使用逻辑复制时有效。
控制表的更改写入wal日志的信息，以识别 update 或 delete 事件的行。
每当发生 update 或 delete 事件时，replica identity 的设置控制了哪些信息（如果有）可用于所涉及的表列的先前值。
4个设置选项值
- default：记录主键列（如果有）的旧值，这是非系统表的默认值。
- using index index_name：记录指定索引所包含的列的旧值。
- full：记录行中所有列的旧值。
- nothing：不记录旧值，这是系统表的默认设置。
如果表没有主键，则连接器不会为该表发出 update 或 delete 事件，对于没有主键的表，连接器仅发出 create 事件。
设置方式

alter table only inventory.orders replica identity full;

update

delete

目标端消费

目标端连接器使用本文开头 <连接器默认配置> 章节的默认配置，此处会涉及三个参数，默认配置 delete.enabled=false，pk.mode=none，insert.mode=insert

问题一：不能同步 delete 操作

kafka connector 的日志显示的报错信息

tutorial-connect-1    | org.apache.kafka.connect.errors.connectexception:
sink connector 'oracle-testdml-sink' is configured with 'delete.enabled=false' and 'pk.mode=none'
and therefore requires records with a non-null struct value and non-null struct schema,
but found record at (topic='test_dml.inventory.orders',partition=0,offset=7,timestamp=1651152793683)
with a null value and null value schema.

不能同步 delete 操作，连接器上需要添加 “delete.enabled”: “true”, “pk.mode”: “record_key”
delete.enabled 默认是 false，pk.mode 默认是 none

问题二：违反唯一约束？

ora-00001: unique constraint (test.sys_c007736) violated

主备端都是有主键的表，且备端的数据都是从主端同步过来的，为什么会违反唯一约束？
这里先不说这个问题，但是解决方法是在问题一的基础上再添加参数 “insert.mode”: “upsert”
insert.mode 默认是 insert

正常同步了上面的 insert、update 和 delete 操作。

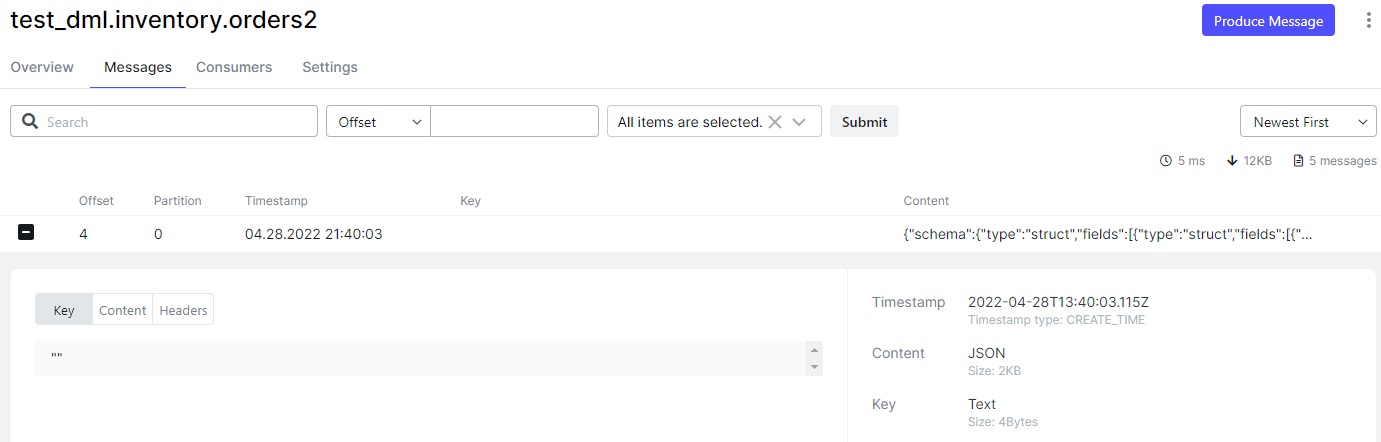

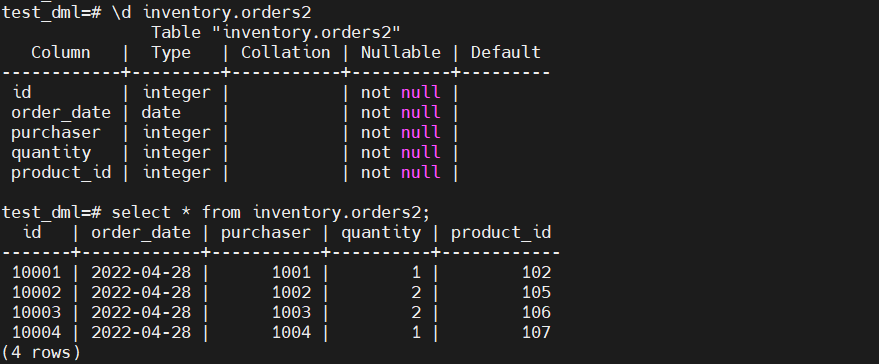

针对无主键的表，数据写入 kafka ，默认情况下消息的 key 为空。

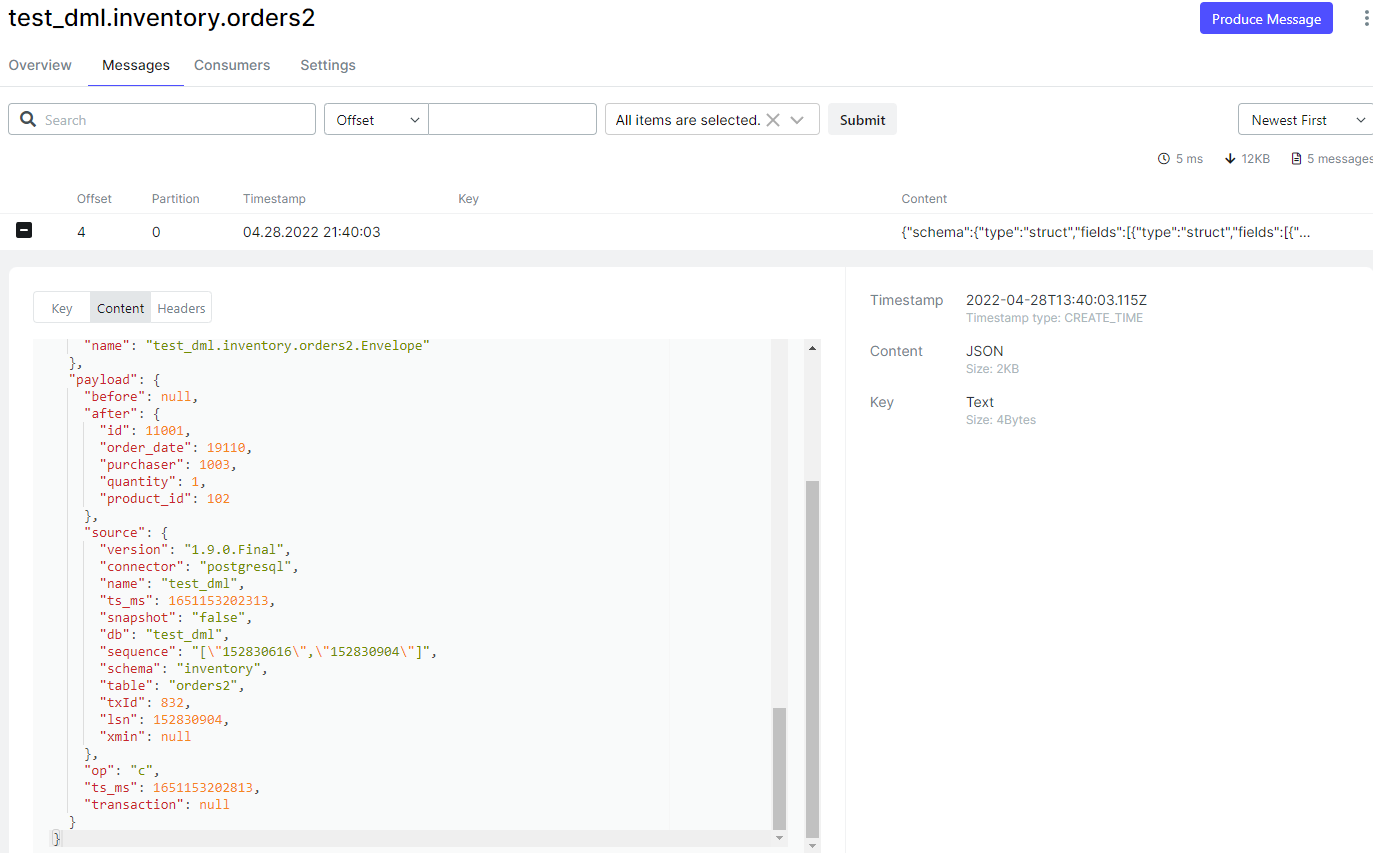

insert into inventory.orders2 values (11001,now(),1003,1,102);

insert 操作可以正常同步，但是 update 和 delete 操作的记录被跳过，在源端是 postgresql 数据库时，就体现出配置表的replica identity属性的重要性。

update inventory.orders2 set quantity=2 where id=11001;

tutorial-connect-1    | 2022-04-28 13:41:53,005 warn   postgres|test_dml|streaming  no new values found for table '{ key : null, value : {"name" : "test_dml.inventory.orders2.value", "type" : "struct", "optional" : "true", "default" : null, "fields" : [{"name" : "id", "index" : "0", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "order_date", "index" : "1", "schema" : {"name" : "io.debezium.time.date", "type" : "int32", "optional" : "false", "default" : null, "version" : "1"}}, {"name" : "purchaser", "index" : "2", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "quantity", "index" : "3", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "product_id", "index" : "4", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}]} }'
from update message at 'struct{version=1.9.0.final,connector=postgresql,name=test_dml,ts_ms=1651153312826,db=test_dml,sequence=["152831320","152831376"],schema=inventory,table=orders2,txid=833,lsn=152831376}';
skipping record   [io.debezium.relational.relationalchangerecordemitter]

delete from inventory.orders2 where id = 11001;

tutorial-connect-1    | 2022-04-28 13:43:12,205 warn   postgres|test_dml|streaming  no old values found for table '{ key : null, value : {"name" : "test_dml.inventory.orders2.value", "type" : "struct", "optional" : "true", "default" : null, "fields" : [{"name" : "id", "index" : "0", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "order_date", "index" : "1", "schema" : {"name" : "io.debezium.time.date", "type" : "int32", "optional" : "false", "default" : null, "version" : "1"}}, {"name" : "purchaser", "index" : "2", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "quantity", "index" : "3", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}, {"name" : "product_id", "index" : "4", "schema" : {"type" : "int32", "optional" : "false", "default" : null}}]} }'
from delete message at 'struct{version=1.9.0.final,connector=postgresql,name=test_dml,ts_ms=1651153391920,db=test_dml,sequence=["152831512","152831800"],schema=inventory,table=orders2,txid=834,lsn=152831800}';
skipping record   [io.debezium.relational.relationalchangerecordemitter]

replica identity

为表配置 replica identity，无主键表的 update 和 delete 操作可以正常到 kafka

alter table only inventory.orders2 replica identity full;

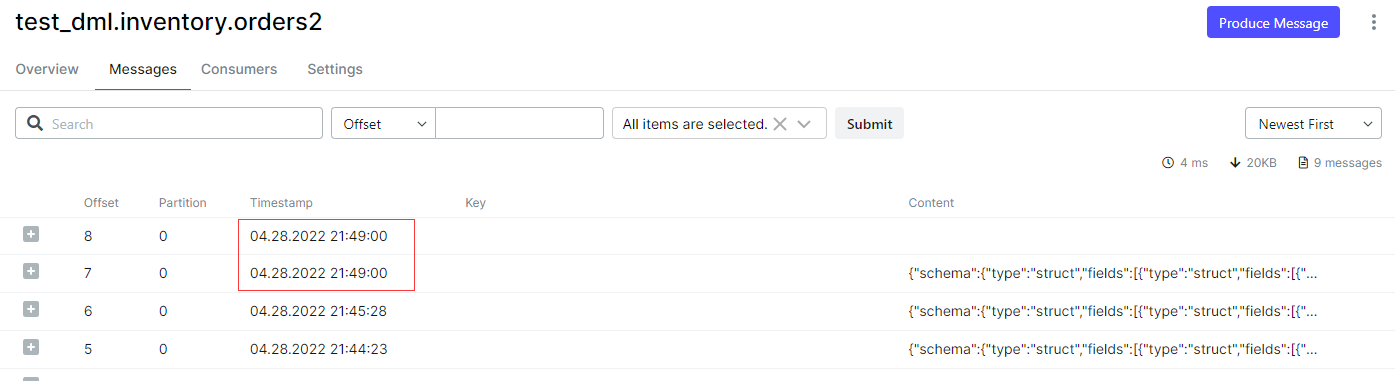

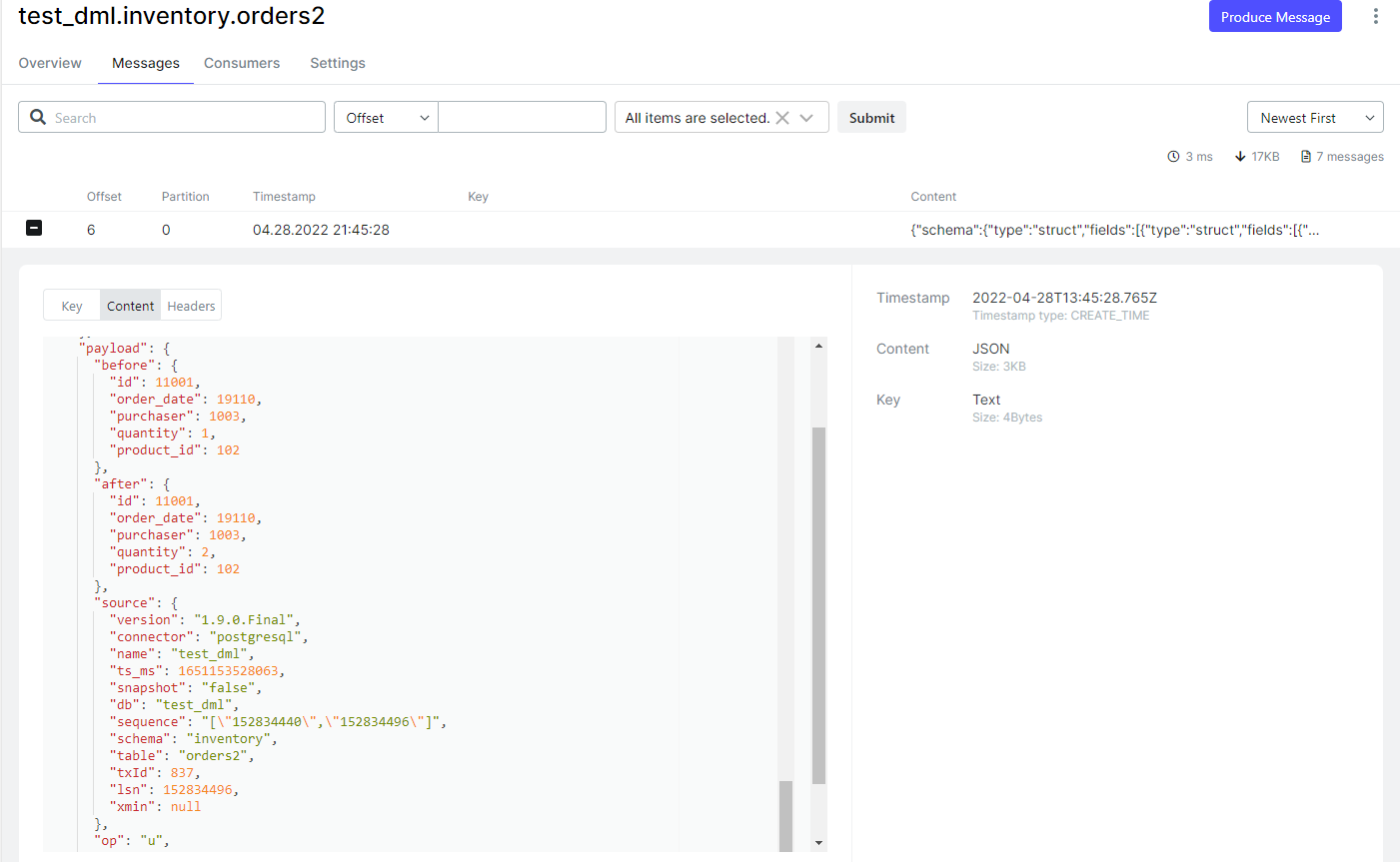

update

delete

目标端消费

重新初始化环境，删除源端的连接器，删除 topics，重新注册连接器，保持无主键表的原始状态
目标端连接器在本文开头 <连接器默认配置> 章节的默认配置的基础下添加 “delete.enabled”: “true”，“pk.mode”: “record_key”，“insert.mode”: “upsert”

tutorial-connect-1    | org.apache.kafka.connect.errors.connectexception:
sink connector 'oracle-testdml-sink2' is configured with 'delete.enabled=true' and 'pk.mode=record_key'
and therefore requires records with a non-null key and non-null struct or primitive key schema,
but found record at (topic='test_dml.inventory.orders2',partition=0,offset=0,timestamp=1651157942687)
with a null key and null key schema.

目标端连接器在本文开头 <连接器默认配置> 章节的默认配置的基础下添加 “delete.enabled”: “false”，“pk.mode”: “record_key”，“insert.mode”: “upsert”

tutorial-connect-1    | org.apache.kafka.connect.errors.connectexception:
sink connector 'oracle-testdml-sink2' is configured with 'delete.enabled=false' and 'pk.mode=record_key'
and therefore requires records with a non-null key and non-null struct or primitive key schema,
but found record at (topic='test_dml.inventory.orders2',partition=0,offset=0,timestamp=1651157942687)
with a null key and null key schema.

目标端连接器在本文开头 <连接器默认配置> 章节的默认配置的基础下添加 “delete.enabled”: “false”，“pk.mode”: “none”，“insert.mode”: “upsert”

tutorial-connect-1    | org.apache.kafka.connect.errors.connectexception:
write to table '"orders2"' in upsert mode requires key field names to be known, check the primary key configuration

目标端连接器在本文开头 <连接器默认配置> 章节的默认配置的基础下添加 “delete.enabled”: “false”，“pk.mode”: “record_value”，“pk.fields”: “id”，“insert.mode”: “upsert”

# insert 和 update 都能支持，一样不支持 delete 操作
tutorial-connect-1    | org.apache.kafka.connect.errors.connectexception:
sink connector 'oracle-testdml-sink2' is configured with 'delete.enabled=false' and 'pk.mode=record_value'
and therefore requires records with a non-null struct value and non-null struct schema,
but found record at (topic='test_dml.inventory.orders2',partition=0,offset=9,timestamp=1651160261336)
with a null value and null value schema.

无主键表的几个问题

问题一：无主键表的 key 是空值，所以不能使用 “delete.enabled”: “true”，“pk.mode”: “record_key”
修改 “pk.mode”: “record_value”，加入参数 “pk.fields”: “id”，让 key 使用 value 中的字段

{
    "error_code": 400,
    "message": "connector configuration is invalid and contains the following 2 error(s):
               deletes are only supported for pk.mode record_key
               you can also find the above list of errors at the endpoint `/connector-plugins/{connectortype}/config/validate`"
}

“delete.enabled”: “true” 只能和 “pk.mode”: “record_key” 搭配使用，如果想要同步 delete 操作，key 必须不为空
问题二：“insert.mode”: “upsert” 需要主键，对于没有主键的表需要配置 “pk.mode”: “record_value”，“pk.fields”: “id”
问题三：“delete.enabled”: “false”，“pk.mode”: “record_value”，“pk.fields”: “id”，“insert.mode”: “upsert” 一样不支持 delete 操作，如果想要同步 delete 操作，key 必须不为空
下一章节的 message.key.columns 参数均可解决这这几个问题

[root@docker tutorial]# cat register-postgres-key.json
{
    "name": "inventory-connector-key",
    "config": {
        "connector.class": "io.debezium.connector.postgresql.postgresconnector",
        "tasks.max": "1",
        "database.hostname": "postgres",
        "database.port": "5432",
        "database.user": "postgres",
        "database.password": "postgres",
        "database.dbname" : "test_dml",
        "database.server.name": "test_dml",
        "snapshot.mode": "always",
        "table.include.list": "inventory.orders3",
        "slot.name": "test_dml_slot",
        "message.key.columns": "inventory.orders3:id,product_id"
    }
}
curl -s -x delete localhost:8083/connectors/inventory-connector-key
curl -i -x post -h "accept:application/json" -h  "content-type:application/json" http://localhost:8083/connectors/ -d @register-postgres-key.json
[root@docker tutorial]# cat oracle-testdml-sink.json
{
    "name": "oracle-testdml-sink3",
        "config": {
        "connector.class": "io.confluent.connect.jdbc.jdbcsinkconnector",
        "connection.url": "jdbc:oracle:thin:@//172.17.0.2:1521/pdbtt",
        "connection.user": "test",
        "connection.password": "test",
        "tasks.max": "1",
        "topics": "test_dml.inventory.orders3",
        "table.name.format": "orders3",
        "quote.sql.identifiers": "never",
        "transforms": "unwrap",
        "transforms.unwrap.type": "io.debezium.transforms.extractnewrecordstate",
        "transforms.unwrap.drop.tombstones": "false",
        "delete.enabled": "true",
        "pk.mode": "record_key",
        "insert.mode": "upsert"
        }
}
curl -s -x delete localhost:8083/connectors/oracle-testdml-sink3
curl -i -x post -h "accept:application/json" -h  "content-type:application/json" http://localhost:8083/connectors/ -d @oracle-testdml-sink.json

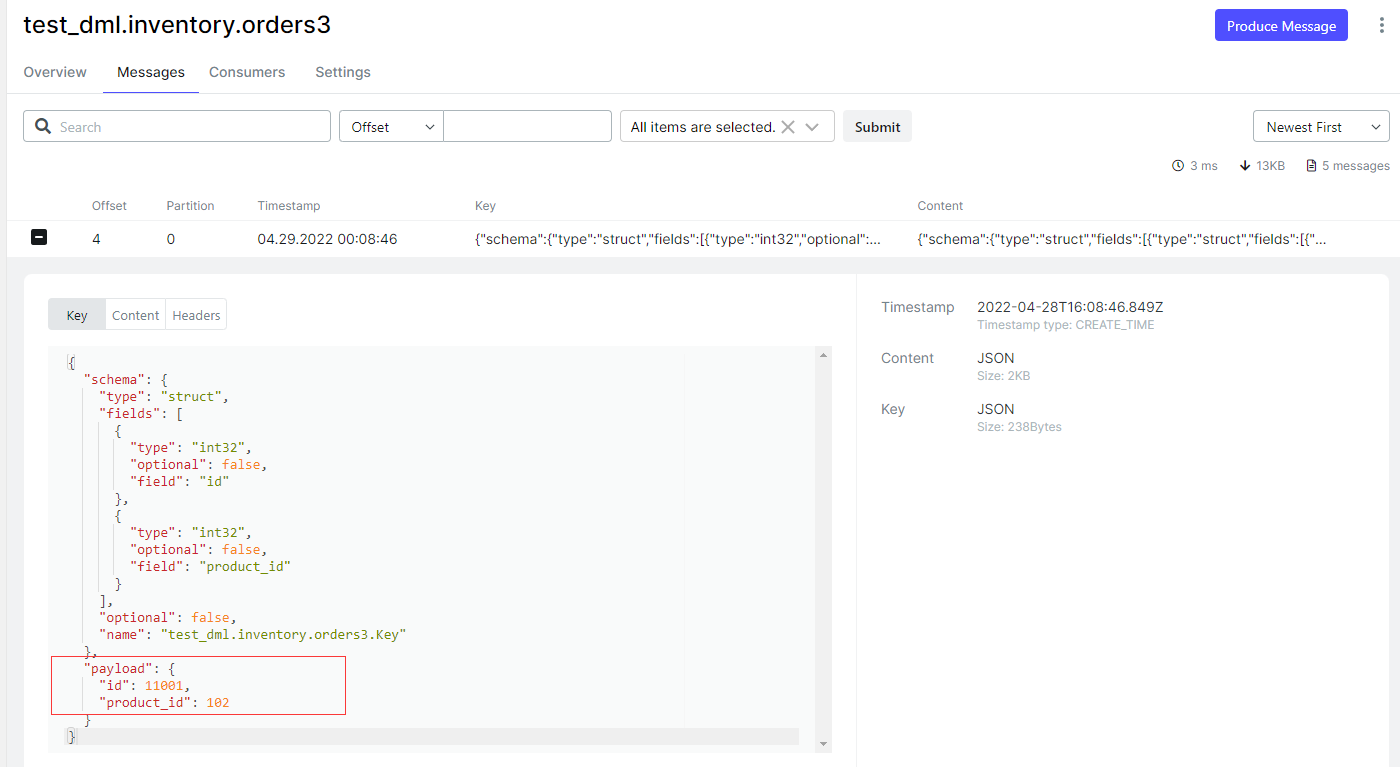

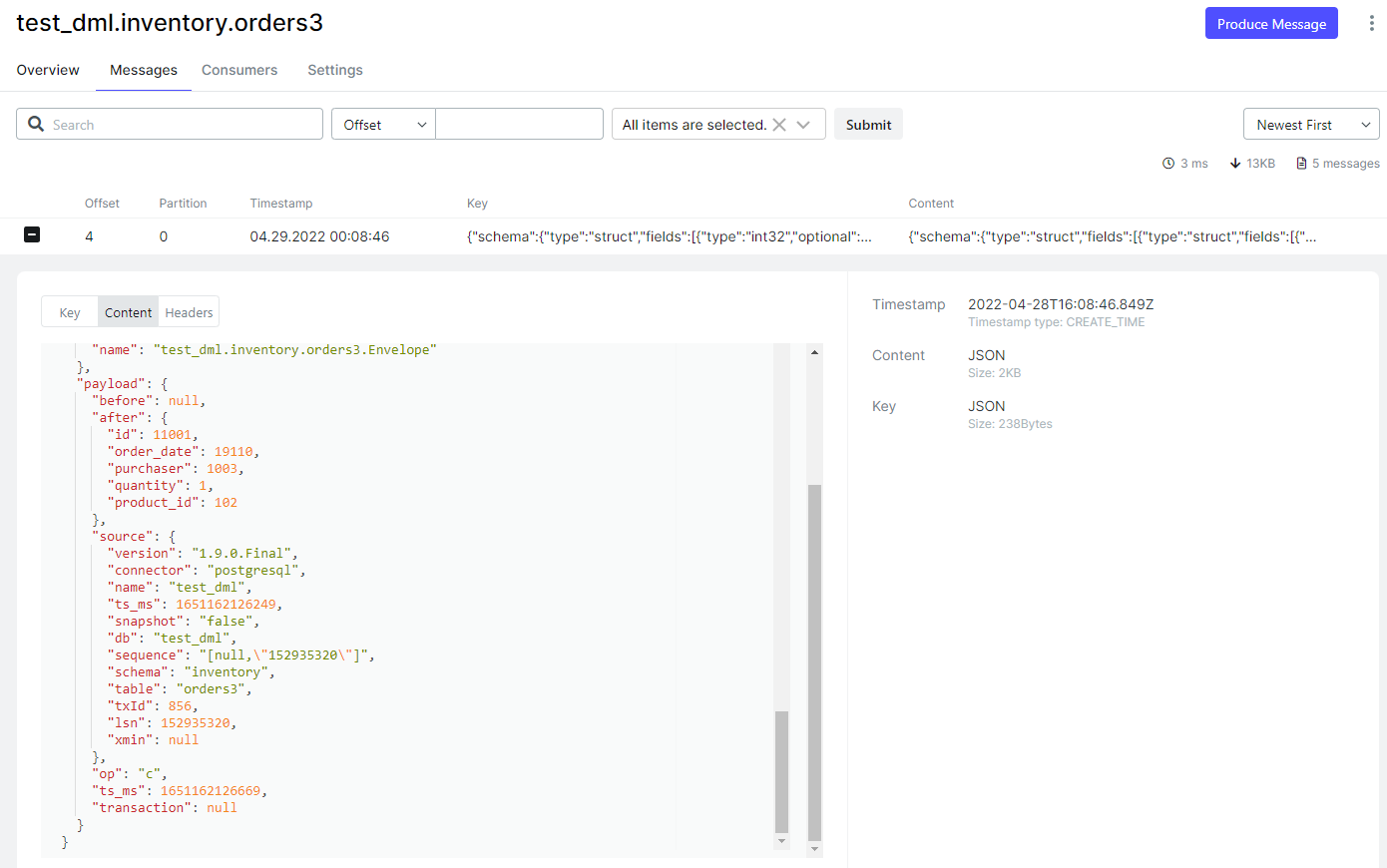

insert into inventory.orders3 values (11001,now(),1003,1,102);

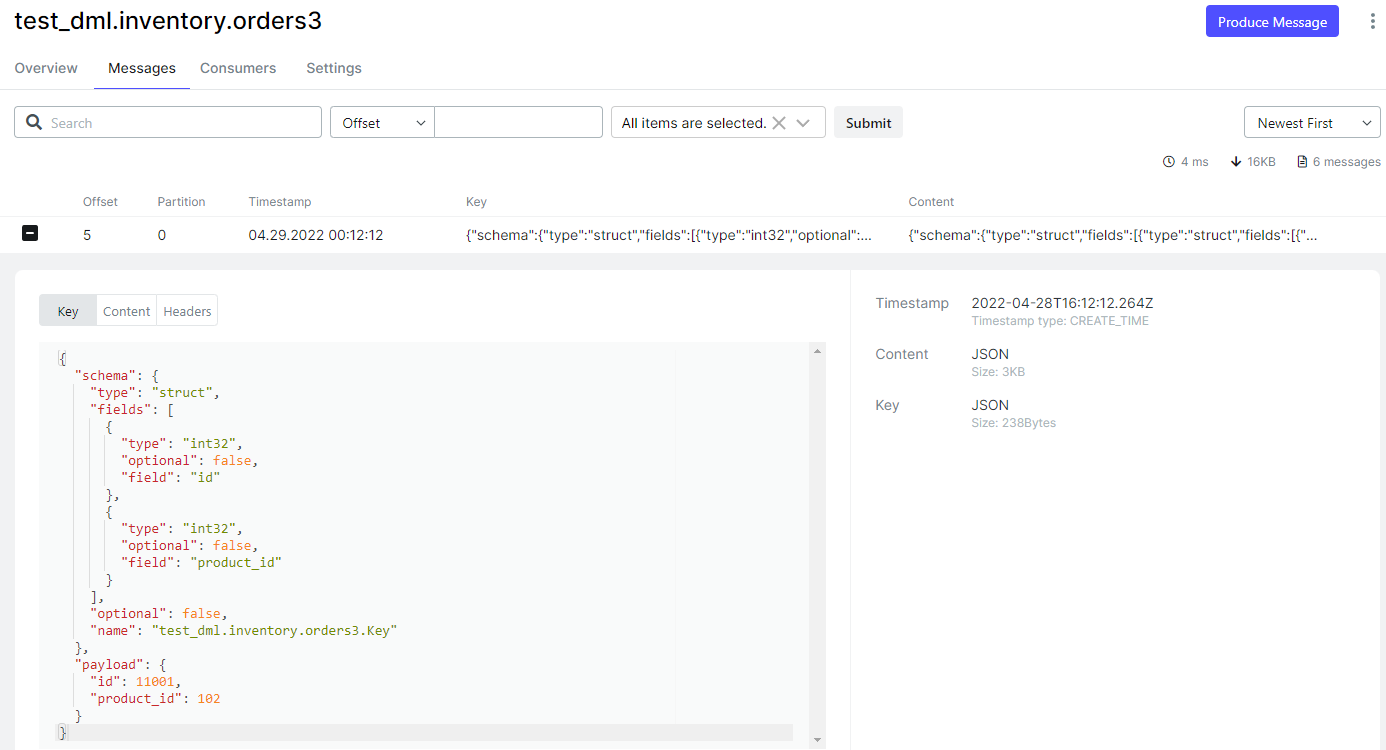

update inventory.orders3 set quantity=2 where id=11001;

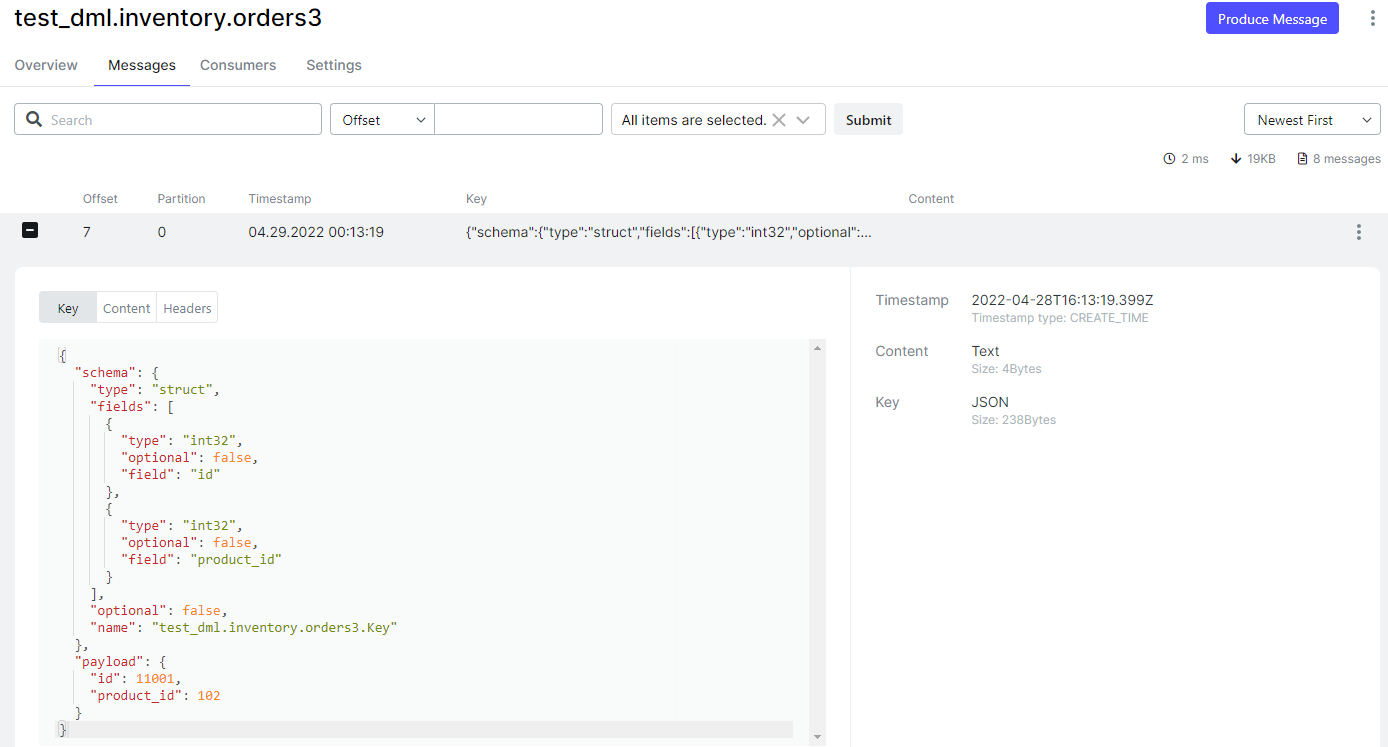

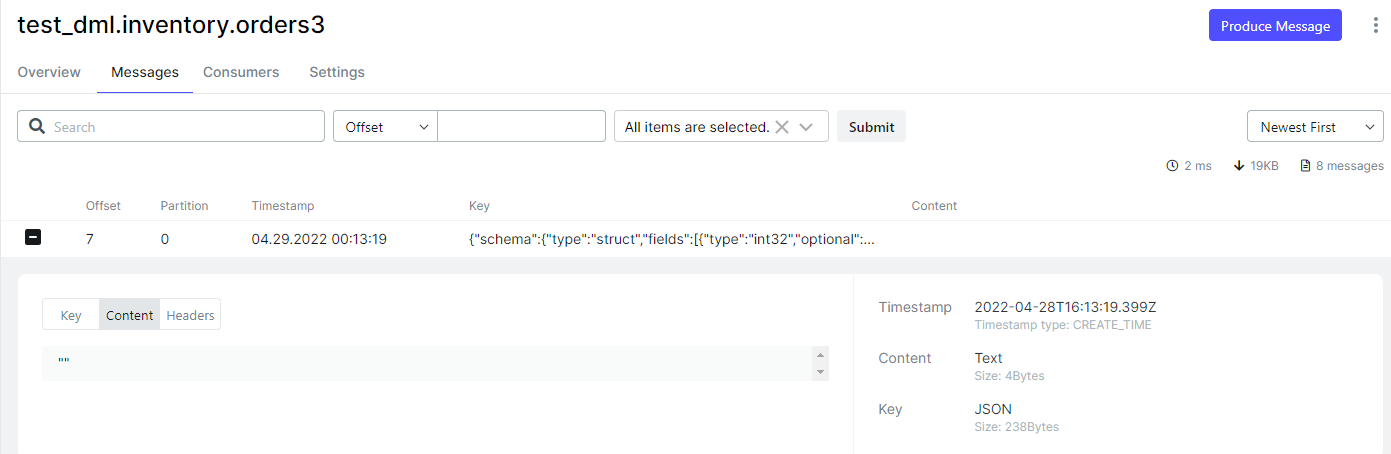

delete from inventory.orders3 where id = 11001;
